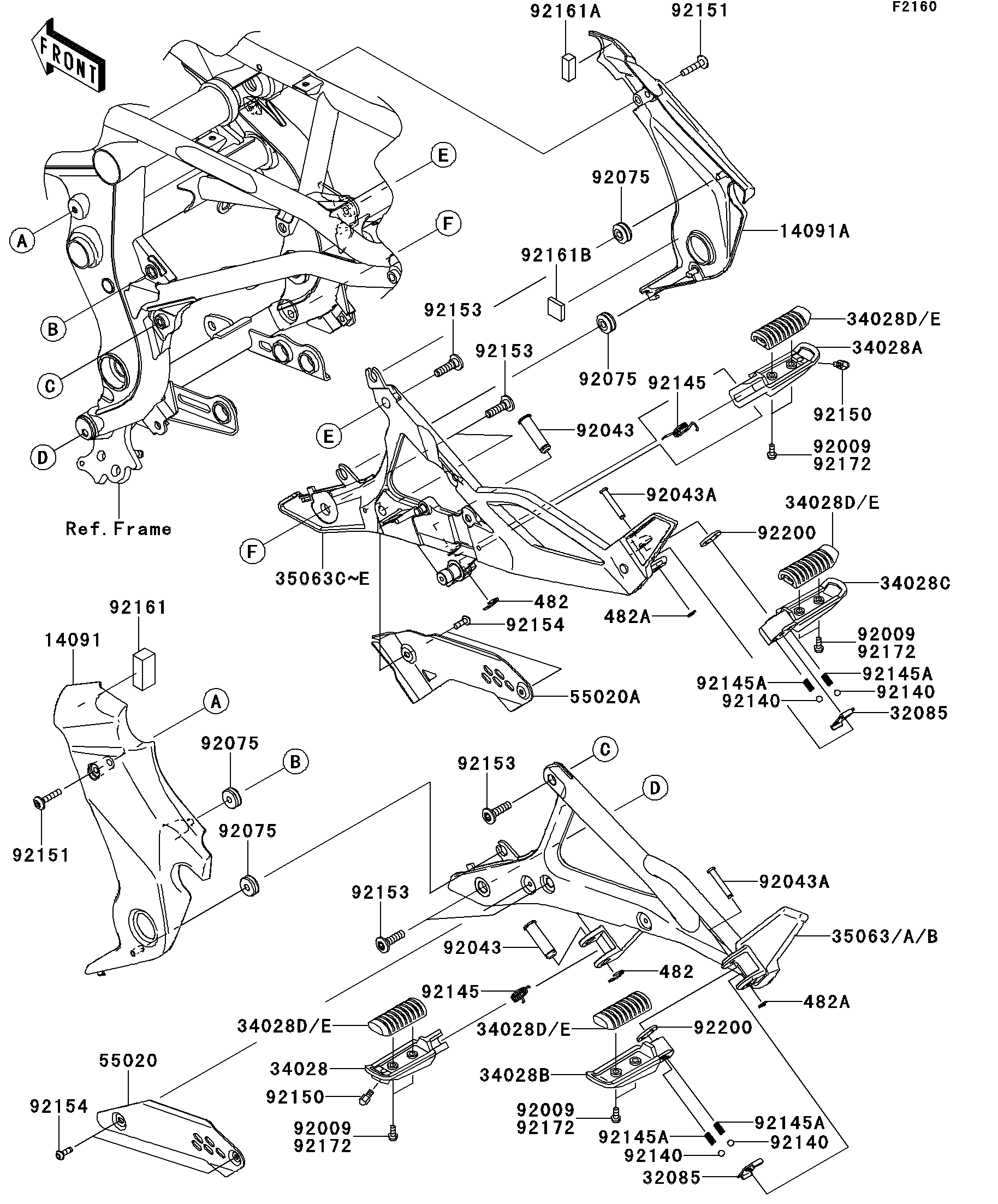

2010 Ninja® 650R - Footrests

DOWNLOAD PDF
SELECT A NEW PART
14091
14091A
32085
32085
34028
34028A
34028B
34028C
34028E
34028E
34028E
34028E
35063
35063A
35063C
35063D
55020
55020A
92009
92009
92009
92009
92043
92043
92043A
92043A
92075
92075
92075
92075
92140
92140
92140
92140
92145
92145
92145A
92145A
92145A
92145A
92150
92150
92151
92151
92153
92153
92153
92153
92154
92154
92161
92161A
92161B
92200
92200
482
482
482A
482A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,PIVOT,LH 14091 14091-1584 1
COVER,PIVOT,RH 14091A 14091-1585 1
STOPPER,REAR STEP 32085 32085-0047 2
STEP,FR,LH 34028 34028-0127 1
STEP,FR,RH 34028A 34028-0128 1
STEP,RR,LH 34028B 34028-0129 1
STEP,RR,RH 34028C 34028-0130 1
STEP,RUBBER 34028E 34028-1430 4
STAY,STEP,LH,F.S.BLACK 35063 35063-0522-18R 1
STAY,STEP,LH,F.M.GRAY 35063A 35063-0522-26M 1
STAY,STEP,RH,F.S.BLACK 35063C 35063-0523-18R 1
STAY,STEP,RH,F.M.GRAY 35063D 35063-0523-26M 1
GUARD,STEP,LH 55020 55020-0461 1
GUARD,STEP,RH 55020A 55020-0597 1
SCREW,5X14 92009 92009-1404 8
PIN,12X37.5 92043 92043-0026 2
PIN,6X40 92043A 92043-1595 2
DAMPER 92075 92075-1067 4
BALL,6.35MM 92140 92140-0008 4
SPRING,STEP RETURN 92145 92145-0723 2
SPRING 92145A 92145-1319 4
BOLT,BANK SENSOR 92150 92150-1114 2
BOLT,SOCKET,6X30 92151 92151-1605 2
BOLT,SOCKET,8X30 92153 92153-1630 6
BOLT,SOCKET,5X16 92154 92154-0182 4
DAMPER,19X15X40 92161 92161-0670 1
DAMPER,10X10X28 92161A 92161-0671 1
DAMPER,UPP CNT COWLING 92161B 92161-0731 1
WASHER,16X26X2.3 92200 92200-0043 2
CIRCLIP-TYPE-E,10MM 482 482EA0100 2
CIRCLIP-TYPE-E 482A 482EA5000 2
