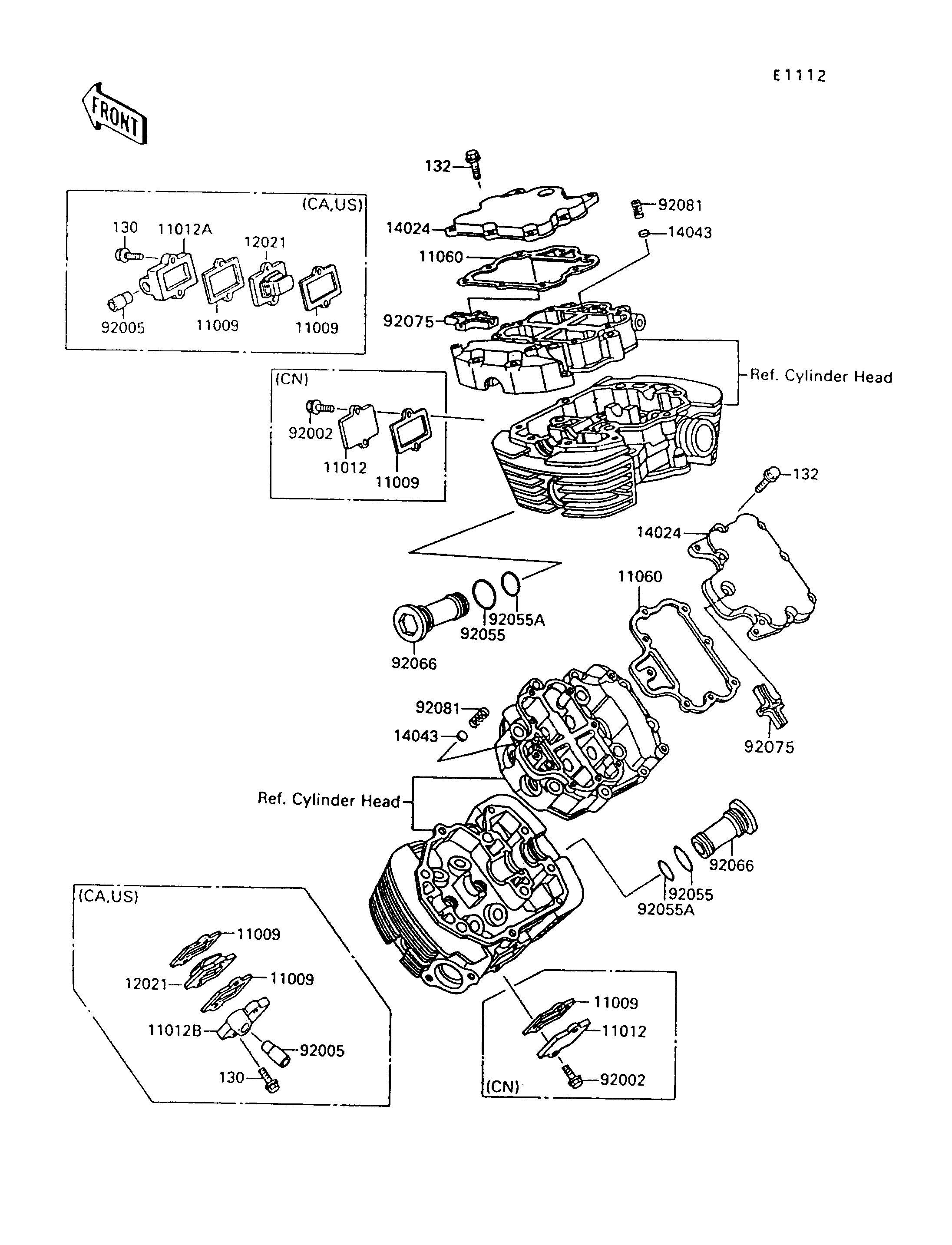

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130N0620 4
BOLT-FLANGED-SMALL 132 132E0620 16
GASKET,REED VALVE 11009 11009-1879 2
GASKET,REED VALVE 11009 11009-1879 4
CAP,CYLINDER HEAD COVER 11012 11012-1484 2
CAP,REED VALVE,FR 11012A 11012-1494 1
CAP,REED VALVE,RR 11012B 11012-1574 1
GASKET,ROCKER CASE COVER 11060 11060-1116 2
VALVE-ASSY-REED 12021 12021-1073 2
COVER,ROCKER CASE 14024 14024-1405 2
FILTER,OIL 14043 14043-1056 4
BOLT 92002 92002-1626 4
FITTING,REED VALVE 92005 92005-1006 2
RING-O,31.5X2.6 92055 92055-049 2
RING-O,27.7X1.9 92055A 92055-1272 2
PLUG,SLEEVE 92066 92066-1274 2
DAMPER 92075 92075-1998 2
SPRING,OIL FILTER 92081 92081-1776 4
