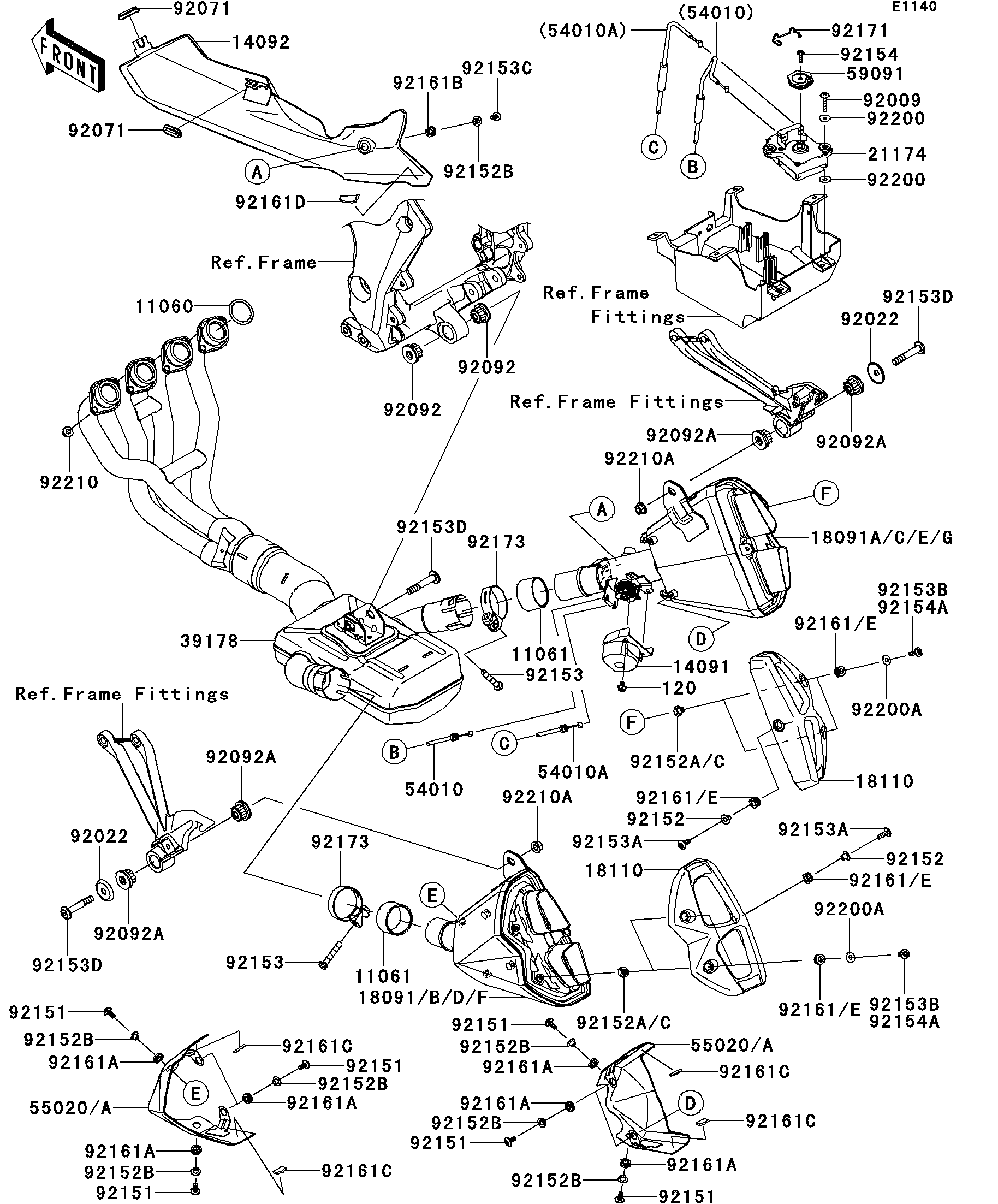

2010 Z1000 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
11061
11061
11061
11061
14091
14091
14092
14092
18091
18091
18091A
18091A
18091F
18091F
18091G
18091G
18110
18110
18110
18110
21174
21174
39178
39178
54010
54010
54010A
54010A
55020
55020
55020
55020
59091
59091
92009
92009
92022
92022
92022
92022
92071
92071
92071
92071
92092
92092
92092
92092
92092A
92092A
92092A
92092A
92092A
92092A
92092A
92092A
92151
92151
92151
92151
92151
92151
92151
92151
92151
92151
92151
92151
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92152B
92152C
92152C
92152C
92152C
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92153C
92153C
92153D
92153D
92153D
92153D
92153D
92153D
92154
92154
92154A
92154A
92154A
92154A
92161
92161
92161
92161
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161B
92161B
92161C
92161C
92161C
92161C
92161C
92161C
92161C
92161C
92161D
92161D
92171
92171
92173
92173
92173
92173
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92210
92210
92210A
92210A
92210A
92210A
120
120
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE HOLDER 11060 11060-1103 4
GASKET,MUFFLER CONNECTING 11061 11061-0726 2
COVER,PULLEY 14091 14091-0712 1
COVER,SIDE UNDER 14092 14092-0150 1
BODY-COMP-MUFFLER,LH 18091 18091-0625 1 (JKAZRCD1 AA000681 - )
BODY-COMP-MUFFLER,RH 18091A 18091-0626 1 (JKAZRCD1 AA000681 - )
BODY-COMP-MUFFLER,LH 18091F 18091-5007 1 ( - JKAZRCD1 AA000680)
BODY-COMP-MUFFLER,RH 18091G 18091-5008 1 ( - JKAZRCD1 AA000680)
BODY END-MUFFLER 18110 18110-0114 2
MOTOR-ELECTRIC 21174 21174-0005 1
MANIFOLD-COMP-EXHAUST 39178 39178-0144 1
CABLE,OPEN,WHITE 54010 54010-0119 1
CABLE,CLOSE,BLACK 54010A 54010-0120 1
GUARD,FRONT COVER 55020 55020-0545 2
PULLEY 59091 59091-0007 1
SCREW,TAPPING,6X30 92009 92009-1481 2
WASHER 92022 92022-289 2
GROMMET 92071 92071-1187 2
BUSHING-RUBBER 92092 92092-1081 2
BUSHING-RUBBER,MUFFLER 92092A 92092-1087 4
BOLT,SOCKET,6X14 92151 92151-1654 8
COLLAR 92152 92152-0237 2
COLLAR 92152A 92152-0237 4 (JKAZRCD1 AA000681 - )
COLLAR 92152B 92152-0286 9
COLLAR 92152C 92152-0882 4 ( - JKAZRCD1 AA000680)
BOLT,8X45 92153 92153-0702 2
BOLT,6X18 92153A 92153-0816 2
BOLT,6X18 92153B 92153-0816 4 (JKAZRCD1 AA000681 - )
BOLT,SOCKET,6X16 92153C 92153-0817 1
BOLT,SOCKET,10X58 92153D 92153-1930 3
BOLT,TORX,5X18 92154 92154-0217 1
BOLT,SOCKET,6X20 92154A 92154-0405 4 ( - JKAZRCD1 AA000680)
DAMPER 92161 92161-0204 6
DAMPER 92161A 92161-0306 8
DAMPER 92161B 92161-0308 1
DAMPER 92161C 92161-0856 4
DAMPER,SIDE COVER 92161D 92161-0870 1
CLAMP 92171 92171-0292 1
CLAMP 92173 92173-0037 2
WASHER 92200 92200-0078 4
WASHER,6.5X16X1.0 92200A 92200-3712 4
NUT,8MM 92210 92210-0076 8
NUT 92210A 92210-0568 2
BOLT-SOCKET,6X10 120 120CB0610 2
