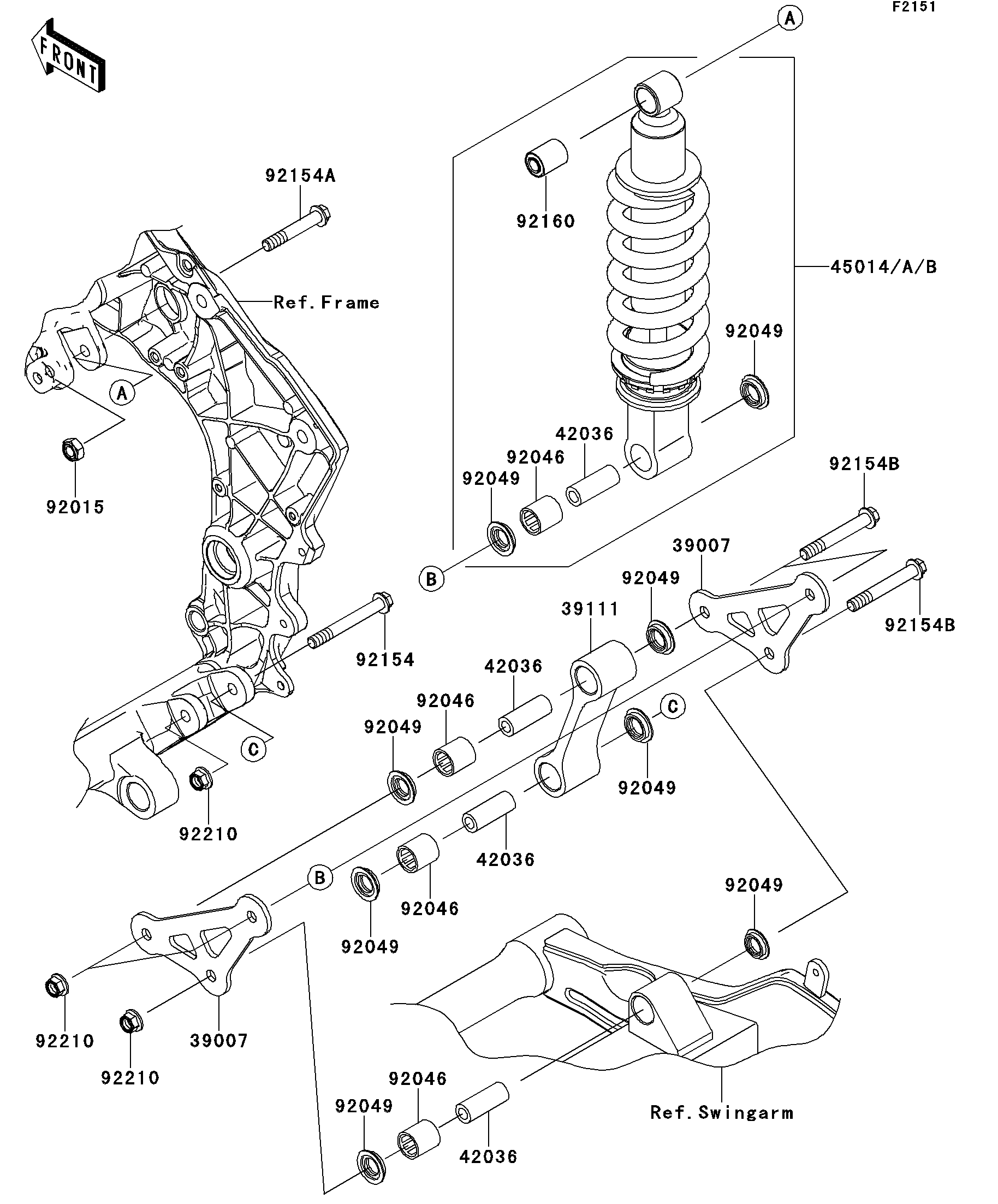

2010 Z1000 - Suspension/Shock Absorber
39007
39007
39111
42036
42036
42036
42036
45014
92015
92046
92046
92046
92046
92049
92049
92049
92049
92049
92049
92049
92049
92154
92154A
92154B
92154B
92160
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ARM-SUSP,UNI TRAK,P.SILVER | 39007 | 39007-0156-458 | 2 | ||
| ROD-TIE,SUSPENSION,F.S.BLACK | 39111 | 39111-0069-18R | 1 | ||
| SLEEVE,10.1X17X44.5 | 42036 | 42036-1342 | 4 | ||
| SHOCK,SPRING SIL+BODY BLK | 45014 | 45014-0326-23I | 1 | ||
| NUT,LOCK,10MM,BLACK | 92015 | 92015-1189 | 1 | ||
| BEARING-NEEDLE,SFYZM172425 | 92046 | 92046-1273 | 4 | ||
| SEAL-OIL,MHA17245.7F | 92049 | 92049-1223 | 8 | ||
| BOLT,FLANGED,10X77 | 92154 | 92154-0262 | 1 | ||
| BOLT,FLANGED,10X60 | 92154A | 92154-0263 | 1 | ||
| BOLT,FLANGED,10X67 | 92154B | 92154-0264 | 3 | ||
| DAMPER,SHOCKABSORBER | 92160 | 92160-1496 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1139 | 4 |
