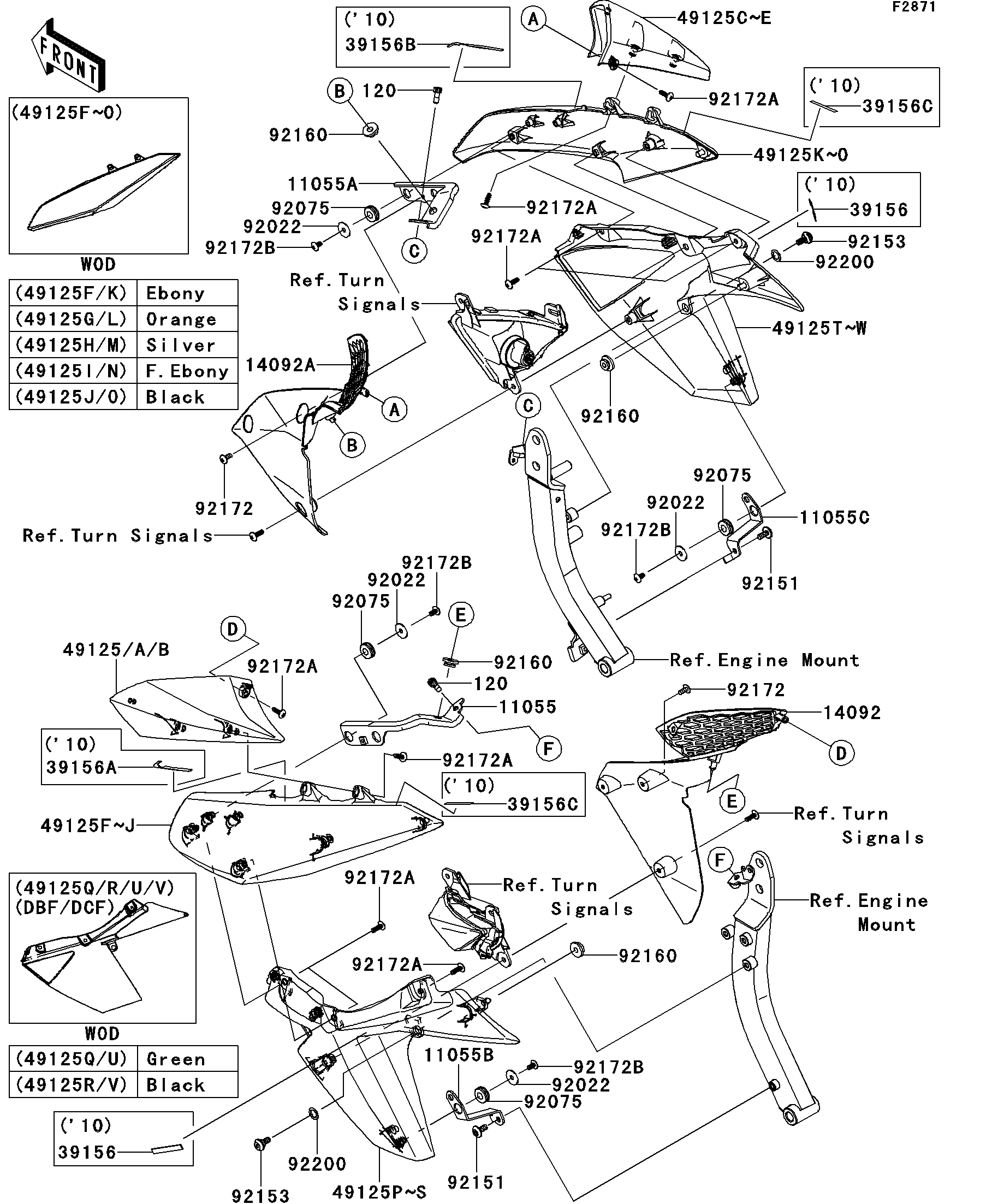

2010 Z1000 - Cowling(Center)(DAF-DCF)

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
11055A
11055A
11055B
11055B
11055C
11055C
14092
14092
14092A
14092A
39156
39156
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156C
39156C
49125A
49125A
49125B
49125B
49125D
49125D
49125E
49125E
49125G
49125G
49125H
49125H
49125L
49125L
49125M
49125M
49125S
49125S
49125W
49125W
92022
92022
92022
92022
92022
92022
92022
92022
92075
92075
92075
92075
92075
92075
92075
92075
92151
92151
92151
92151
92153
92153
92153
92153
92160
92160
92160
92160
92160
92160
92160
92160
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92200
92200
92200
92200
120
120
120
120
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SHROUD,UPP,LH 11055 11055-1944 1
BRACKET,SHROUD,UPP,RH 11055A 11055-1945 1
BRACKET,SHROUD,LH 11055B 11055-1946 1
BRACKET,SHROUD,RH 11055C 11055-1947 1
COVER,INNER,LH 14092 14092-0014 1
COVER,INNER,RH 14092A 14092-0015 1
PAD,45X8 39156 39156-0633 2
PAD,MID SHROUD,LH,FR 39156A 39156-0636 1
PAD,MID SHROUD,RH,FR 39156B 39156-0637 1
PAD,MID SHROUD,RR 39156C 39156-0638 2
SHROUD,UPP,LH,F.S.BLACK 49125A 49125-0044-18T 1
SHROUD,UPP,LH,M.SILVER 49125B 49125-0044-27E 1 CA,US
SHROUD,UPP,RH,F.S.BLACK 49125D 49125-0045-18T 1
SHROUD,UPP,RH,M.SILVER 49125E 49125-0045-27E 1 CA,US
SHROUD,MID,LH,C.B.ORANGE 49125G 49125-0046-17L 1 CA,US
SHROUD,MID,LH,A.SILVER 49125H 49125-0046-17M 1
SHROUD,MID,RH,C.B.ORANGE 49125L 49125-0047-17L 1 CA,US
SHROUD,MID,RH,A.SILVER 49125M 49125-0047-17M 1
SHROUD,LWR,LH,M.S.BLACK 49125S 49125-0048-660 1
SHROUD,LWR,RH,M.S.BLACK 49125W 49125-0049-660 1
WASHER,5.5X20X1.2 92022 92022-1405 6
DAMPER 92075 92075-051 6
BOLT,SOCKET,6X14 92151 92151-1654 2
BOLT,SOCKET,6MM 92153 92153-1956 2
DAMPER 92160 92160-1613 4
SCREW,5X12,GREEN 92172 92172-0008 2
SCREW,TAPPING,5X16 92172A 92172-0175 12
SCREW,TAPPING,5X10 92172B 92172-1061 6
WASHER,10.4X15.9X0.5 92200 92200-0157 2
BOLT-SOCKET,6X14 120 120CB0614 2
