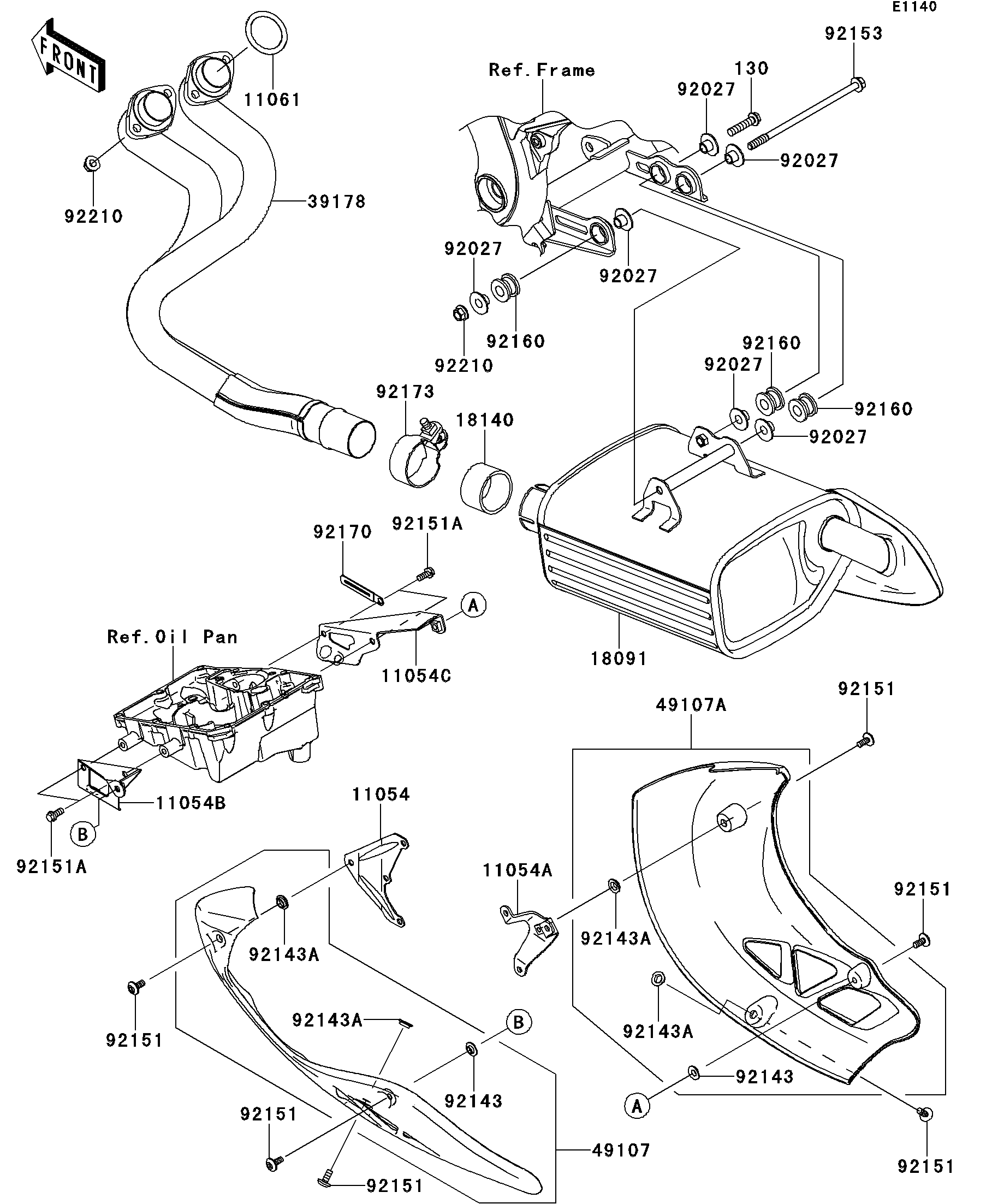

2010 Versys® - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11054
11054A
11054B
11054C
11061
18091
18140
39178
49107
49107A
92027
92027
92027
92027
92027
92027
92143
92143
92143A
92143A
92143A
92143A
92151
92151
92151
92151
92151
92151
92151A
92151A
92153
92160
92160
92160
92170
92173
92210
92210
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,EX.COVER,UPP,LH 11054 11054-0420 1
BRACKET,EX.COVER,UPP,RH 11054A 11054-0421 1
BRACKET,EX.COVER,LWR,LH 11054B 11054-0485 1
BRACKET,EX.COVER,LWR,RH 11054C 11054-0486 1
GASKET,EXHAUST PIPE 11061 11061-0278 2
BODY-COMP-MUFFLER 18091 18091-0643 1
GASKET-MUFFLER 18140 18140-0002 1
MANIFOLD-COMP-EXHAUST 39178 39178-0062 1
COVER-EXHAUST PIPE,LH,F.BLACK 49107 49107-0081-6Z 1
COVER-EXHAUST PIPE,RH,F.BLACK 49107A 49107-0082-6Z 1
COLLAR,FLANGED,8.8X10.6 92027 92027-1653 6
COLLAR 92143 92143-1087 2
COLLAR 92143A 92143-1196 4
BOLT,SOCKET,6X14 92151 92151-1654 6
BOLT,FLANGED,6X14 92151A 92151-1755 4
BOLT,FLANGED,8X165 92153 92153-1357 1
DAMPER,MUFFLER MOUNT 92160 92160-1116 3
CLAMP 92170 92170-1514 1
CLAMP 92173 92173-0110 1
NUT,8MM 92210 92210-1114 5
BOLT-FLANGED,8X35 130 130CD0835 1
