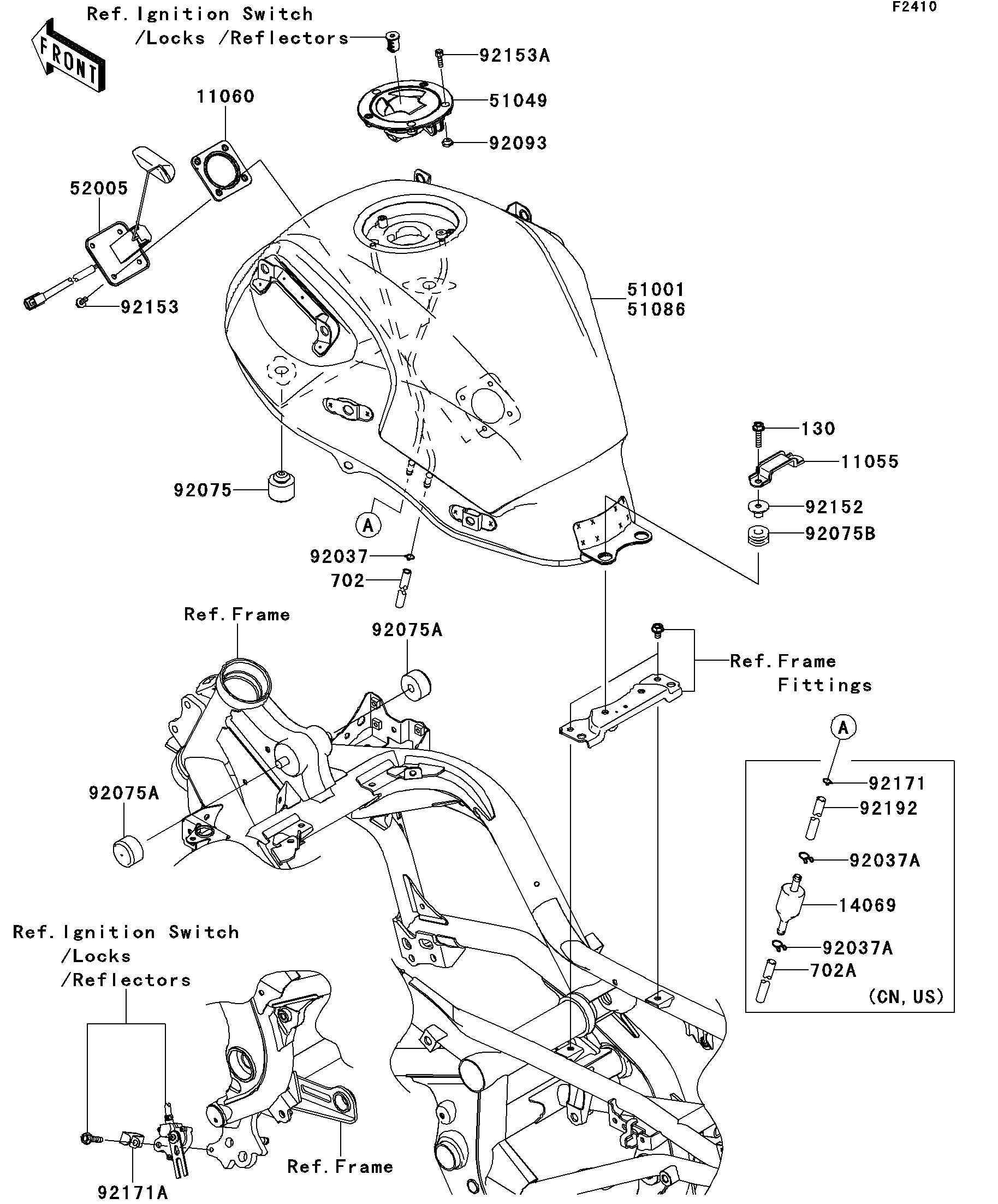

Parts Diagrams |
11055
11060
14069
51001
51049
51086
52005
92037
92037A
92037A
92075
92075A
92075A
92075B
92093
92152
92153
92153A
92171
92171A
92192
130
702
702A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,SEAT | 11055 | 11055-1926 | 1 | ||
GASKET,FUEL GAUGE | 11060 | 11060-1952 | 1 | ||
BREATHER,FUEL TANK | 14069 | 14069-1004 | 1 | CN,US | |
TANK-COMP-FUEL,M.F.S.BLACK | 51001 | 51001-0332-739 | 1 | CN,US | |
CAP-TANK,FUEL | 51049 | 51049-0039 | 1 | ||
TANK-COMP-FUEL,M.F.S.BLACK | 51086 | 51086-5308-739 | 1 | CA | |
GAUGE,FUEL | 52005 | 52005-0023 | 1 | ||
CLAMP,TUBE | 92037 | 92037-010 | 1 | ||
CLAMP,TUBE | 92037A | 92037-147 | 2 | CN,US | |
DAMPER | 92075 | 92075-1002 | 2 | ||
DAMPER,FUEL TANK | 92075A | 92075-125 | 2 | ||
DAMPER | 92075B | 92075-1690 | 2 | ||
SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | ||
COLLAR | 92152 | 92152-0365 | 2 | ||
BOLT,FLANGED,5X12 | 92153 | 92153-1421 | 4 | ||
BOLT,SOCKET,5X16 | 92153A | 92153-1616 | 3 | ||
CLAMP | 92171 | 92171-0573 | 1 | CN,US | |
CLAMP | 92171A | 92171-0911 | 1 | ||
TUBE,BREATHER | 92192 | 92192-0828 | 1 | CN,US | |
BOLT-FLANGED,6X25 | 130 | 130BA0625 | 2 | ||
TUBE-RUBBER,6X9X750 | 702 | 702A06750 | 1 | ||
TUBE-RUBBER,7X10X100 | 702A | 702A07100 | 1 | CN,US |
