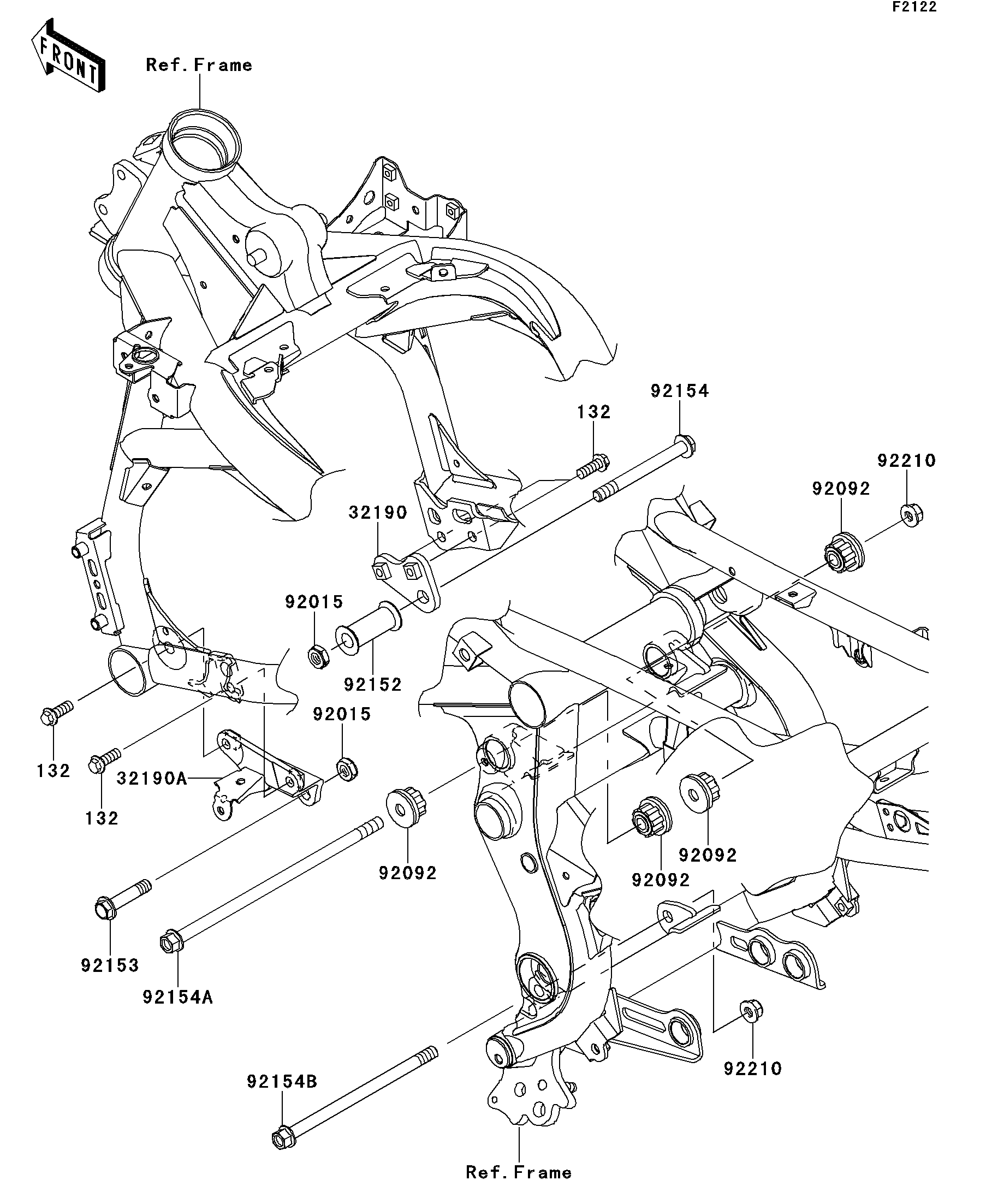

2012 VERSYS® - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
32190
32190A
92015
92015
92092
92092
92092
92092
92152
92153
92154
92154A
92154B
92210
92210
132
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE,RH 32190 32190-0189 1
BRACKET-ENGINE,LH 32190A 32190-0470 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 2
BUSHING-RUBBER 92092 92092-0021 4
COLLAR,11X26X50.8 92152 92152-0740 1
BOLT,FLANGED,10X47 92153 92153-0823 1
BOLT,FLANGED,10X100 92154 92154-0083 1
BOLT,FLANGED,10X237 92154A 92154-0138 1
BOLT,FLANGED,10X170 92154B 92154-0373 1
NUT,LOCK,FLANGED,10MM 92210 92210-1081 2
BOLT-FLANGED-SMALL,8X22 132 132BA0822 4
