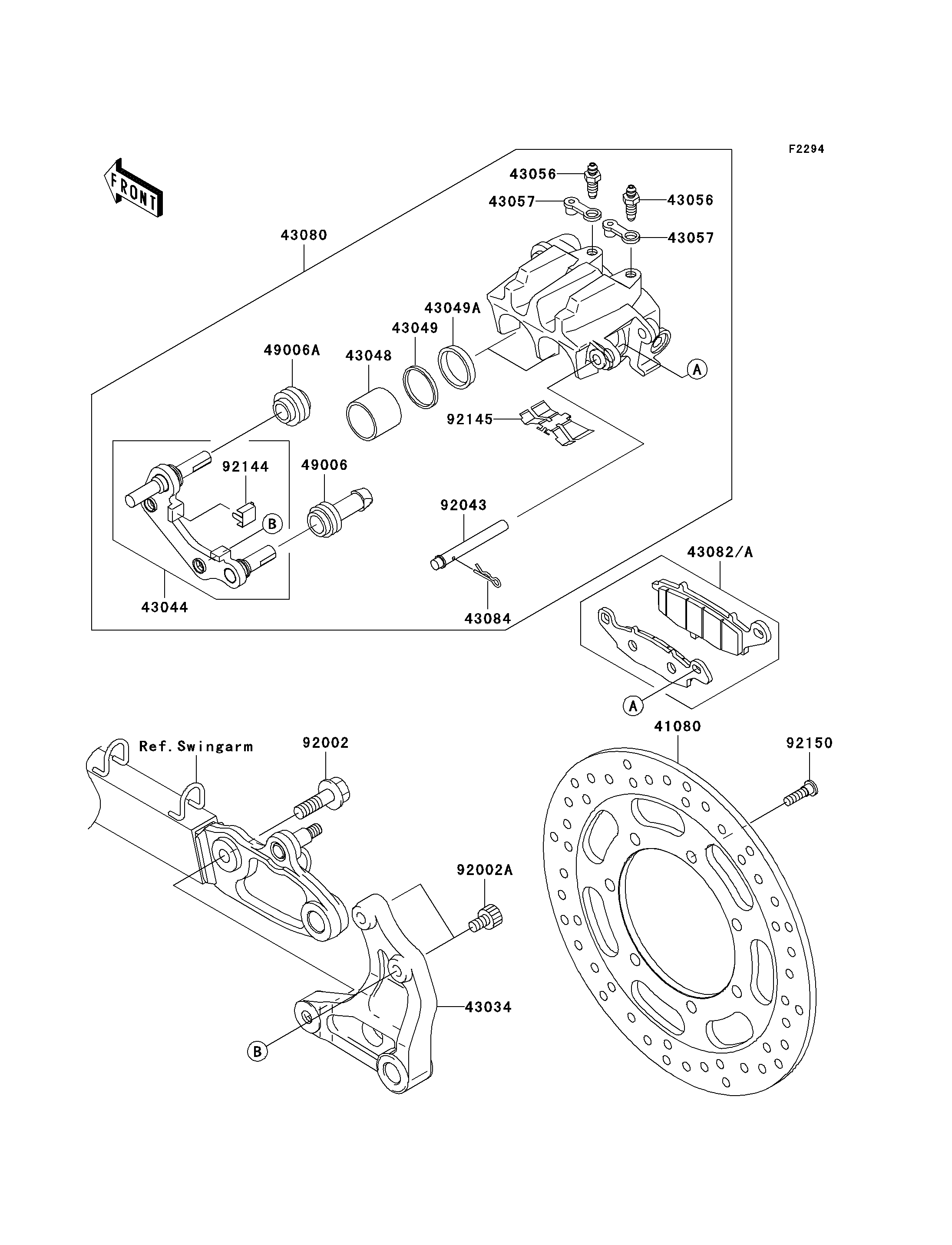

2007 Vulcan 1600 Classic - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
41080
43034
43044
43048
43049
43049A
43056
43056
43057
43057
43080
43082
43084
49006
49006A
92002
92002A
92043
92144
92145
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,RR,SILVER 41080 41080-1525-CM 1
HOLDER-BRAKE,REAR CALIPER 43034 43034-1178 1
HOLDER-COMP-CALIPER,RR 43044 43044-1134 1
PISTON-CALIPER 43048 43048-1094 2
PACKING 43049 43049-1068 2
PACKING,PISTON SEAL 43049A 43049-1092 2
BREATHER-BRAKE 43056 43056-1054 2
CAP-BREATHER 43057 43057-003 2
CALIPER-SUB-ASSY,RR,SILVER 43080 43080-5098-GN 1
PAD-ASSY-BRAKE 43082 43082-0063 1
CLAMP,PAD 43084 43084-003 1
BOOT,CALIPER 49006 49006-1094 1
BOOT,CALIPER 49006A 49006-1095 1
BOLT,FLANGED,12X40 92002 92002-1510 1
BOLT,SOCKET,10X17 92002A 92002-1713 2
PIN,PAD 92043 92043-1640 1
SPRING,STOPPER 92144 92144-1831 1
SPRING,PAD 92145 92145-1382 1
BOLT,SOCKET,8X30 92150 92150-1771 7
