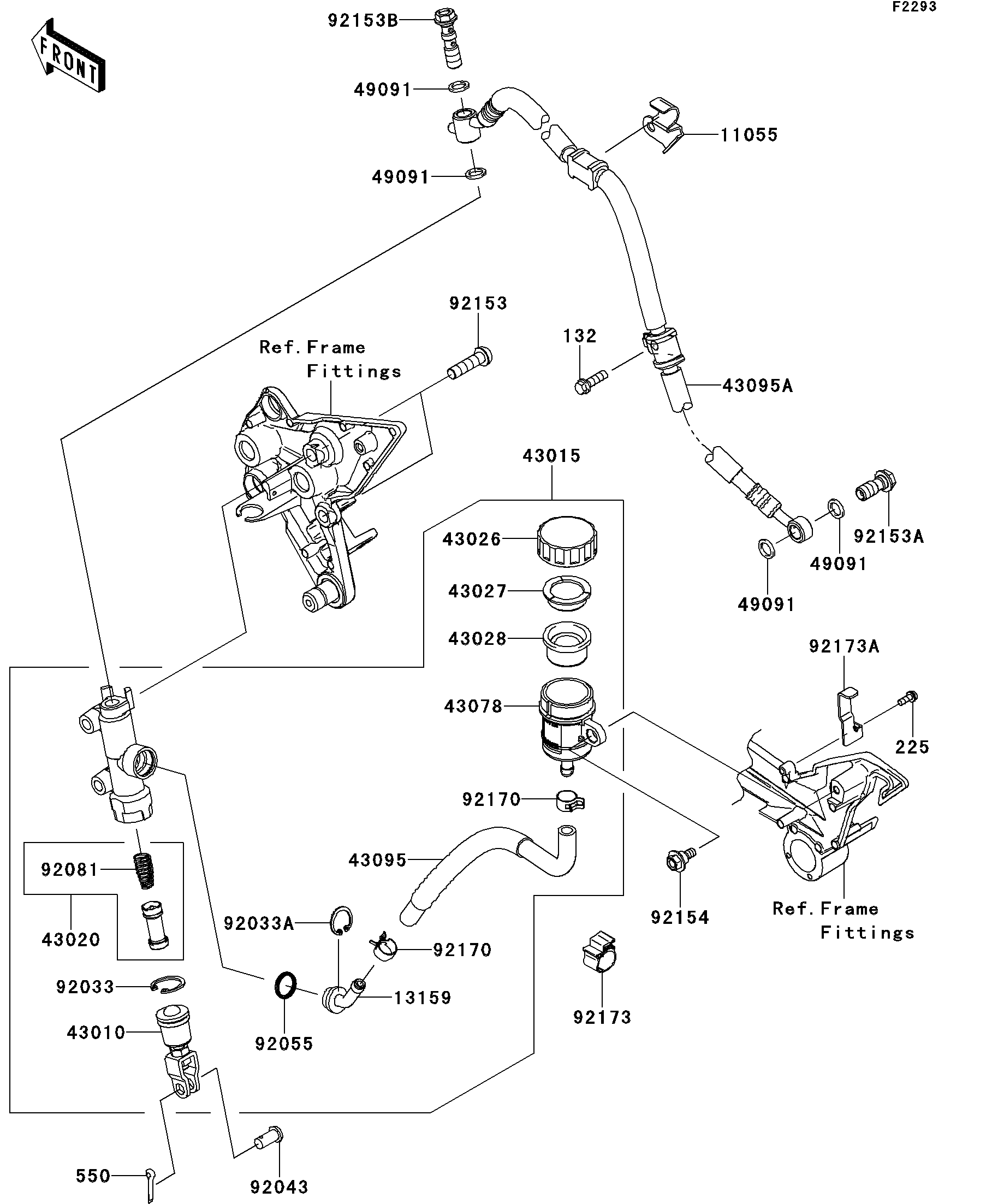

2011 NINJA® 1000 - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11055
13159
43010
43015
43020
43026
43027
43028
43078
43095
43095A
49091
49091
49091
49091
92033
92033A
92043
92055
92081
92153
92153A
92153B
92154
92170
92170
92173
92173A
132
225
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11055 11055-1785 1
CONNECTOR 13159 13159-0008 1
ROD-ASSY-BRAKE 43010 43010-1062 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0137 1
PISTON-COMP-BRAKE 43020 43020-1057 1
CAP-BRAKE 43026 43026-0009 1
PLATE-DIAPHRAGM 43027 43027-1053 1
DIAPHRAGM 43028 43028-1065 1
RESERVOIR 43078 43078-0060 1
HOSE-BRAKE,RR MASTER CYLINDER 43095 43095-0549 1
HOSE-BRAKE,RR 43095A 43095-0624 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
PIN,8X17 92043 92043-0104 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
BOLT,SOCKET,8X30 92153 92153-0393 2
BOLT,OIL,L=23 92153A 92153-0627 1
BOLT,OIL,L=37 92153B 92153-0628 1
BOLT,FLANGED,6X16 92154 92154-0385 1
CLAMP,HOSE 92170 92170-1091 2
CLAMP,CLIP 92173 92173-0127 1
CLAMP 92173A 92173-0221 1
BOLT-FLANGED-SMALL,6X20 132 132BA0620 1
SCREW-PAN-WSP-CROS,4X12 225 225AB0412 1
PIN-COTTER,2.0X15 550 550AA2015 1
