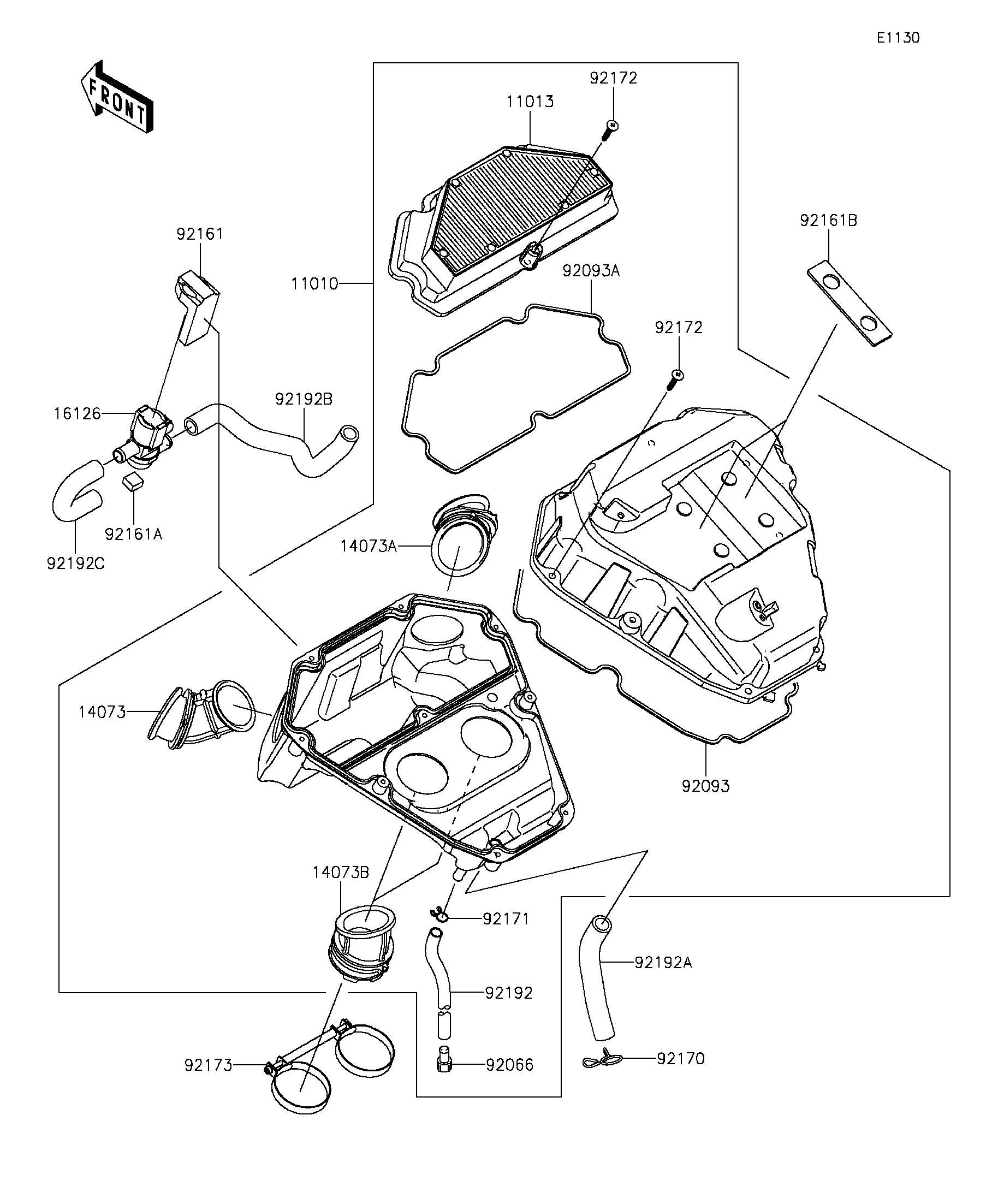

2013 NINJA® 650 ABS - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11013
14073
14073A
14073B
16126
92066
92093
92093A
92161
92161A
92161B
92170
92171
92172
92172
92173
92192
92192A
92192B
92192C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0704 1
ELEMENT-AIR FILTER 11013 11013-0713 1
DUCT,INTAKE,LH 14073 14073-0705 1
DUCT,INTAKE,RH 14073A 14073-0706 1
DUCT 14073B 14073-0728 2
VALVE,AIR SWITING 16126 16126-0019 1
PLUG,DRAIN,8.5X15 92066 92066-0127 1
SEAL 92093 92093-0566 1
SEAL 92093A 92093-0567 1
DAMPER 92161 92161-0309 1
DAMPER 92161A 92161-1374 1
DAMPER 92161B 92161-1428 2
CLAMP 92170 92170-1017 1
CLAMP,DRAIN 92171 92171-1584 1
SCREW,TAPPING,5X25 92172 92172-0772 9
CLAMP 92173 92173-0720 1
TUBE,8X12X245 92192 92192-0709 1
TUBE,BREATHER 92192A 92192-0958 1
TUBE,A/C-ASV 92192B 92192-0959 1
TUBE,ASV-HEAD 92192C 92192-0960 1
