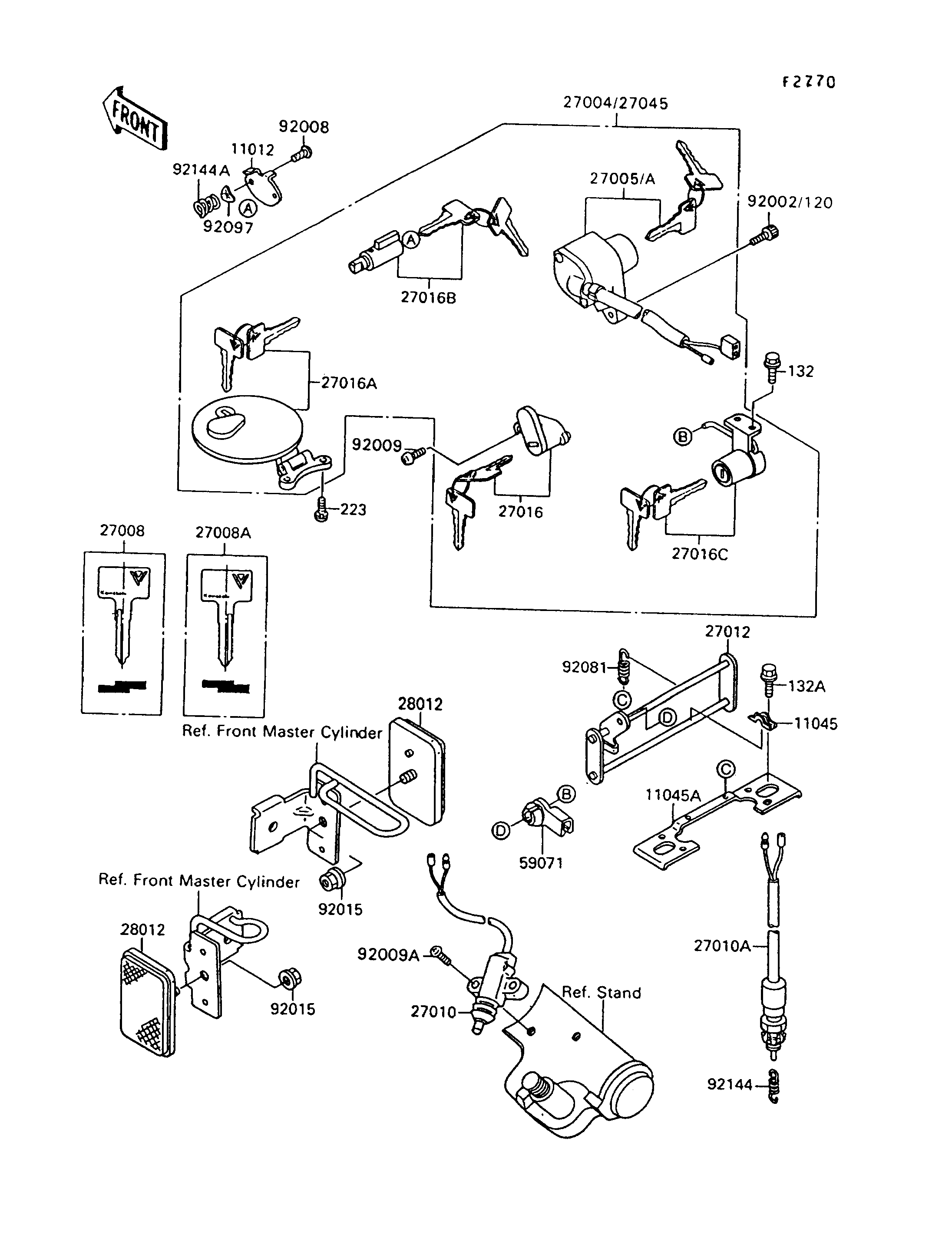

1995 Vulcan 88 - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0608 2
BOLT-FLANGED-SMALL 132A 132J0612 4
SCREW-PAN-WS-CROS 223 223B0410 2
CAP,STEERING LOCK 11012 11012-1586 1
BRACKET,SEAT HOOK 11045 11045-1700 2
BRACKET,SEAT HOOK 11045A 11045-1701 1
SWITCH-ASSY-IGNITION 27005A 27005-1184 1
KEY-LOCK,BLANK,#A 27008 27008-1138 1 (OPTION)
KEY-LOCK,BLANK,#B 27008A 27008-1139 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1223 1
SWITCH,REAR BRAKE 27010A 27010-1238 1
HOOK,SEAT 27012 27012-1371 1
LOCK-ASSY,HELMET 27016 27016-5129 1
LOCK-ASSY,FUEL TANK COVER 27016A 27016-5130 1
LOCK-ASSY,STEERING 27016B 27016-5131 1
LOCK-ASSY,SEAT 27016C 27016-5132 1
SWITCH-ASSY 27045 27045-5001 1
REFLECTOR-REFLEX,FR 28012 28012-1009 2
JOINT 59071 59071-1103 1
BOLT,SOCKET,5X12 92002 92002-1173 1
SCREW,3.51MM 92008 92008-007 1
SCREW,5X12 92009 92009-1296 1
SCREW,5X20 92009A 92009-1459 2
NUT,FLANGED,5MM 92015 92015-1656 2
SPRING,HOOK RETURN 92081 92081-1466 2
WASHER,WAVE 92097 92097-003 1
SPRING,REAR BRAKE SWITCH 92144 92144-1141 1
SPRING,STEERING LOCK 92144A 92144-1222 1
