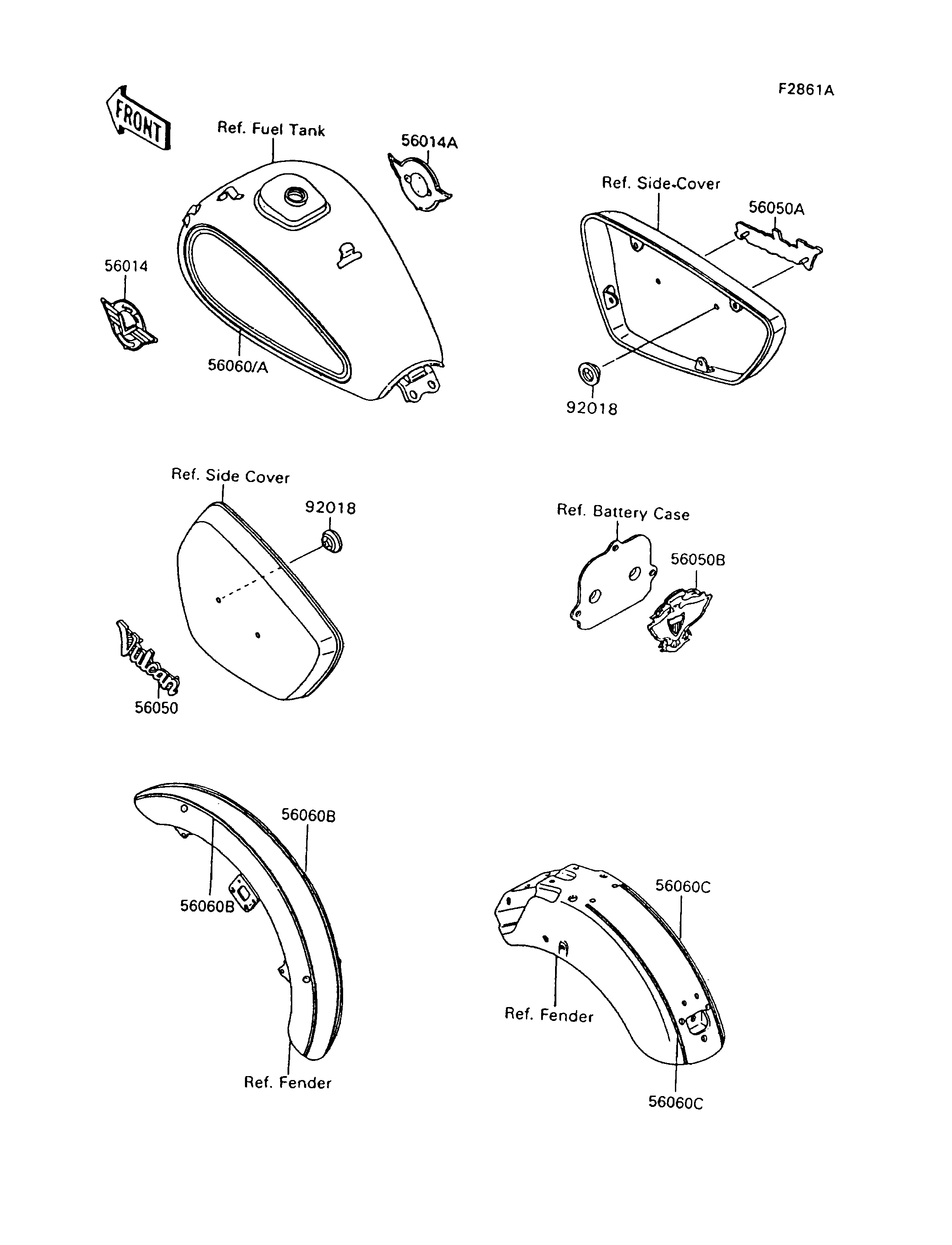

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,LH,FOR EBONY 56014 56014-1213 1
EMBLEM,FUEL TANK,RH,FOR EBONY 56014A 56014-1214 1
MARK,SIDE COVER,LH,FOR EBONY 56050 56050-1006 1
MARK,SIDE COVER,RH,FOR EBONY 56050A 56050-1007 1
MARK,BACK REST COVER,BLUE&EBON 56050B 56050-1009 1
PATTERN,FUEL TANK,LH 56060 56060-1689 1
PATTERN,FUEL TANK,RH 56060A 56060-1690 1
PATTERN,FR FENDER 56060B 56060-1691 2
PATTERN,RR FENDER 56060C 56060-1692 2
NUT,PUSH,3MM 92018 92018-005 4
