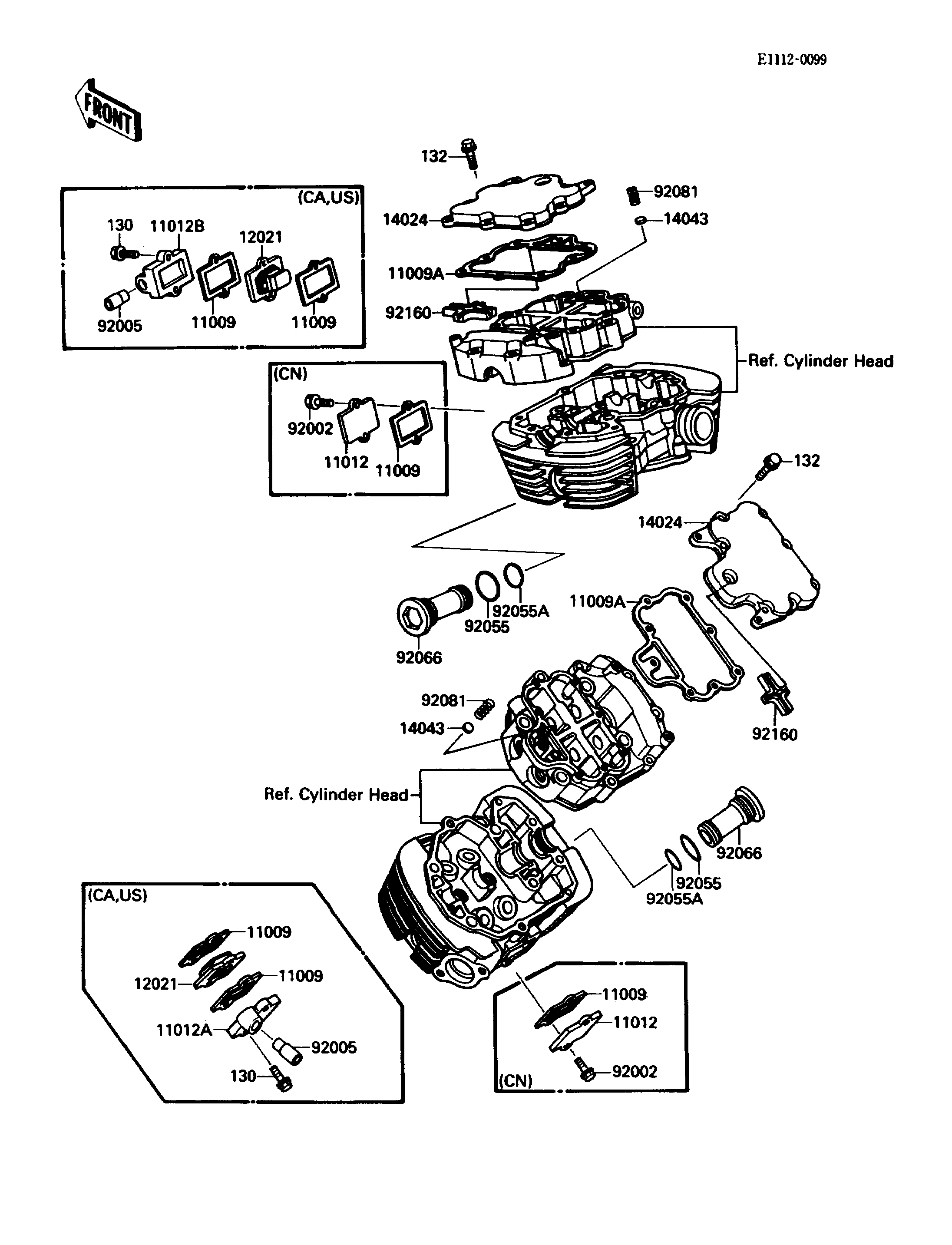

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,REED VALVE 11009 11009-1246 2
GASKET,ROCKER CASE COVER 11009A 11009-1715 2
CAP,CYLINDER HEAD COVER 11012 11012-1484 2
COVER,ROCKER CASE 14024 14024-1405 2
FILTER,OIL 14043 14043-1056 4
BOLT 92002 92002-1626 4
RING-O,31.5X2.6 92055 92055-049 2
RING-O,27.7X1.9 92055A 92055-1272 2
PLUG,SLEEVE 92066 92066-1274 2
SPRING,OIL FILTER 92081 92081-1776 4
DAMPER 92160 92075-1998 2
BOLT-FLANGED-SMALL 132 132E0620 16
