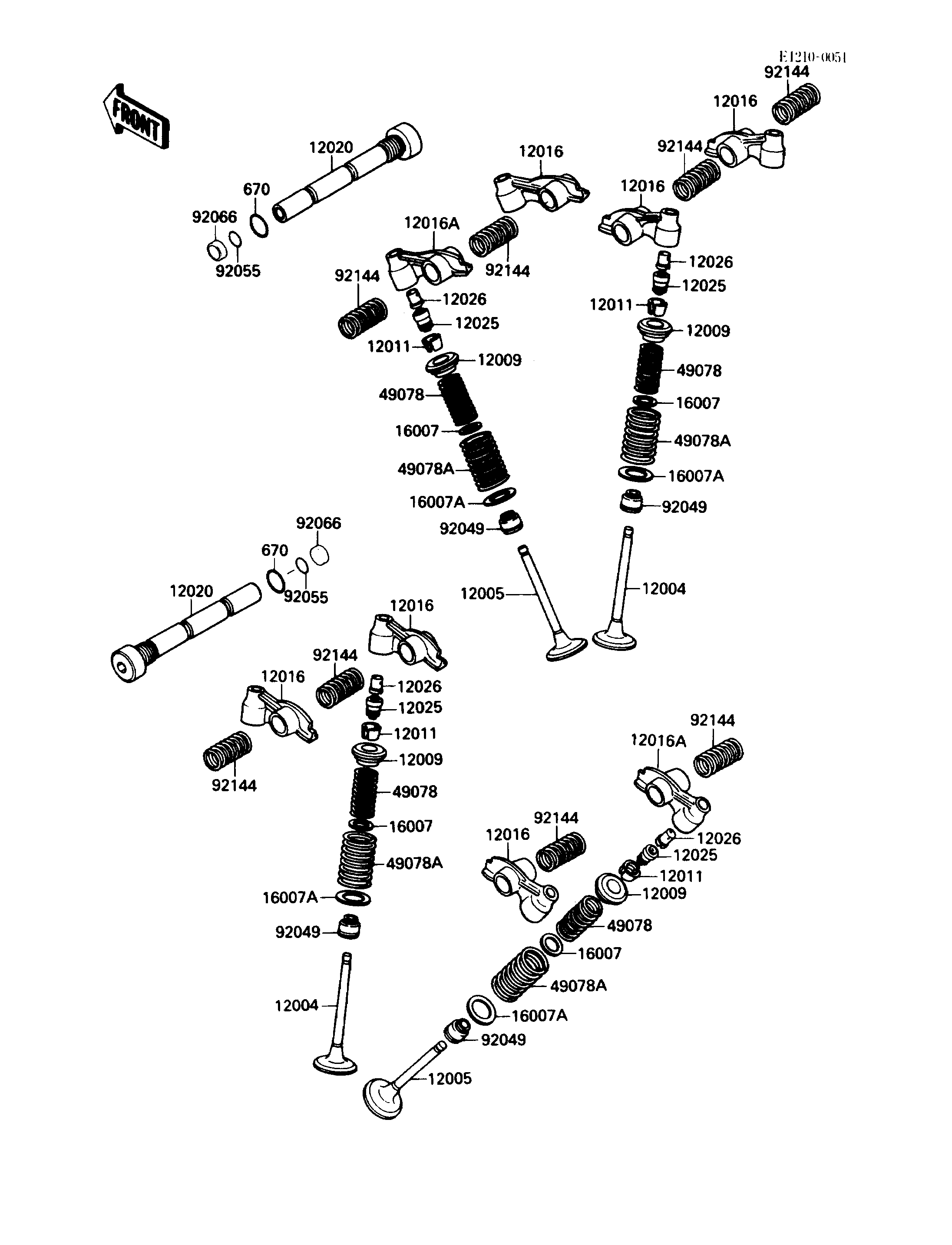

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-1072 4
VALVE-EXHAUST 12005 12005-1090 4
RETAINER-VALVE SPRING 12009 12009-005 8
COLLET,RETAINER 12011 12011-004 16
ARM-ROCKER 12016 12016-1079 6
ARM-ROCKER 12016A 12016-1080 2
SHAFT-ROCKER 12020 12020-1061 4
ADJUSTER-LASH 12025 12025-1053 8
CHAMBER,OIL 12026 12026-1001 8
SEAT-SPRING 16007 16007-1031 8
SEAT-SPRING,OUTER 16007A 16007-1137 8
SPRING-ENGINE VALVE,INNER 49078 49078-1084 8
SPRING-ENGINE VALVE,OUTER 49078A 49078-1085 8
SEAL-OIL,RV37129.5 92049 92049-016 8
RING-O 92055 92055-025 4
PLUG 92066 92066-1198 4
SPRING,ROCKER ARM 92144 92144-1221 8
O RING,20MM 670 670B2020 4
