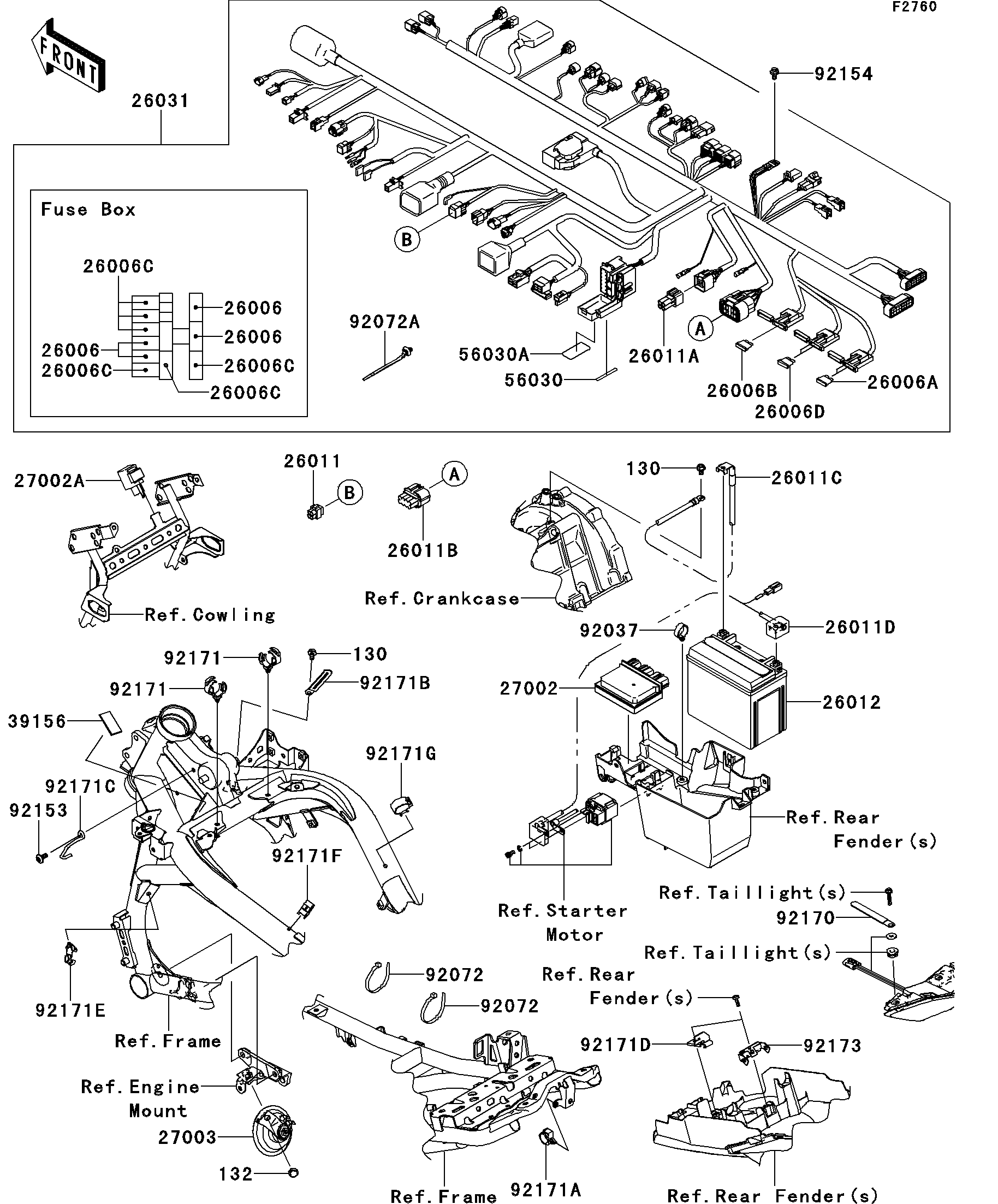

2014 VERSYS® ABS - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
26006
26006
26006
26006A
26006B
26006C
26006C
26006C
26006C
26006D
26011
26011A
26011B
26011C
26011D
26012
26031
27002
27002A
27003
39156
56030
56030A
92037
92072
92072
92072A
92153
92154
92170
92171
92171
92171A
92171B
92171C
92171D
92171E
92171F
92171G
92173
130
130
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 4
FUSE,BLADE,25A,NATURAL 26006A 26006-0012 2
FUSE,BLADE,30A,GREEN 26006B 26006-1067 1
FUSE,MINI BLADE,10A,RED 26006C 26006-1078 6
FUSE,BLADE,5A,TAN 26006D 26006-1082 2
WIRE-LEAD,SENSOR CONNECTOR 26011 26011-0101 1
WIRE-LEAD,CAP 26011A 26011-0271 1
WIRE-LEAD 26011B 26011-0275 1
WIRE-LEAD,BATTERY(-) 26011C 26011-0301 1
WIRE-LEAD,BATTERY(+) 26011D 26011-0302 1
BATTERY,FTX12-BS,12V 10AH 26012 26012-0606 1
HARNESS,MAIN 26031 26031-0957 1
RELAY-ASSY 27002 27002-0007 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-1097 1
HORN 27003 27003-0076 1
PAD,20X40X3 39156 39156-0831 1
LABEL,FUSE BOX 56030 56030-0360 1
LABEL,FUSE BOX 56030A 56030-0419 1
CLAMP,HOSE 92037 92037-1827 1
BAND,L=365 92072 92072-1197 2
BAND 92072A 92072-1414 17
BOLT,SOCKET,6X14 92153 92153-1446 1
BOLT,FLANGED,6X12 92154 92154-1050 1
CLAMP 92170 92170-1925 1
CLAMP,DIA=20 92171 92171-0069 2
CLAMP,BRAKE HOSE 92171A 92171-0316 1
CLAMP 92171B 92171-0462 1
CLAMP,HARNESS 92171C 92171-0657 1
CLAMP,LEAD WIRE 92171D 92171-0953 1
CLAMP,DIA=13 92171E 92171-1415 1
CLAMP,DIA=15 92171F 92171-1424 1
CLAMP,DIA=25 92171G 92171-1559 1
CLAMP,FUSE BOX 92173 92173-0218 1
BOLT-FLANGED,6X10 130 130BA0610 2
BOLT-FLANGED-SMALL,8X12 132 132BB0812 1
