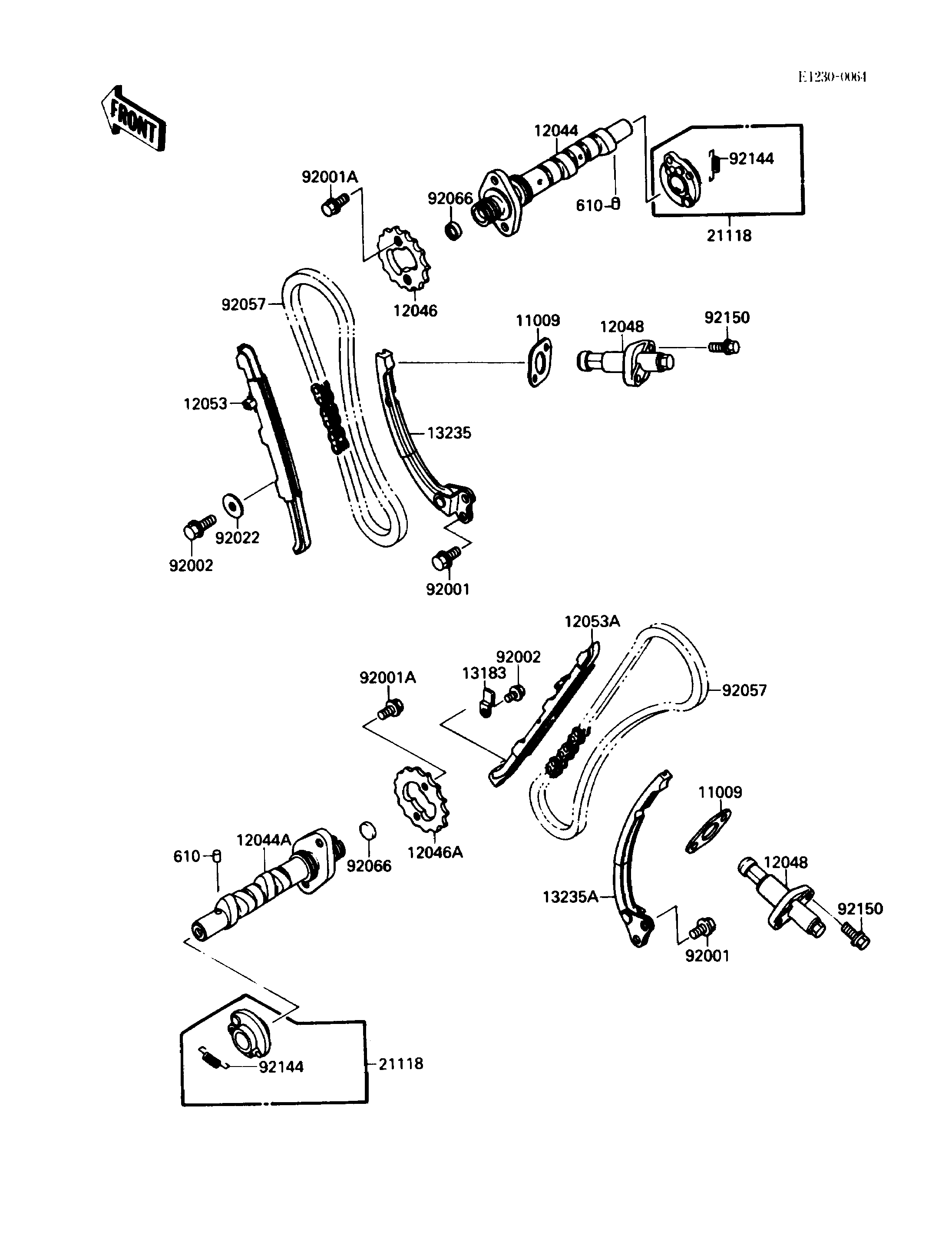

1989 Vulcan 88 SE - Camshaft(s)/Tensioner
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,TENSIONER | 11009 | 11009-1675 | 2 | ||
CAMSHAFT-VALVE,FR | 12044 | 12044-1200 | 1 | ||
CAMSHAFT-VALVE,RR | 12044A | 12044-1201 | 1 | ||
SPROCKET,CAMSHAFT,FR | 12046 | 12046-1105 | 1 | ||
SPROCKET,CAMSHAFT,RR | 12046A | 12046-1106 | 1 | ||
TENSIONER-ASSY | 12048 | 12048-1088 | 2 | ||
GUIDE-CHAIN,FR,TENSIONER | 12053 | 12053-1219 | 1 | ||
GUIDE-CHAIN,RR,TENSIONER | 12053A | 12053-1221 | 1 | ||
PLATE | 13183 | 13183-1096 | 1 | ||
GUIDE-COMP | 13235 | 13235-1060 | 1 | ||
GUIDE-COMP | 13235A | 13235-1061 | 1 | ||
DECOMPRESSOR | 21118 | 21118-1061 | 2 | ||
BOLT,6X16 | 92001 | 92001-1457 | 4 | ||
BOLT,FLANGED,6X11 | 92001A | 92003-208 | 4 | ||
BOLT,6X12 | 92002 | 92002-1563 | 2 | ||
WASHER,7X27X1.6 | 92022 | 92022-227 | 1 | ||
CHAIN,CAM,82RH2010-144L | 92057 | 92057-1234 | 2 | ||
PLUG | 92066 | 92066-1198 | 2 | ||
SPRING,DECOMPRESSOR | 92144 | 92144-1209 | 2 | ||
BOLT,6X20 | 92150 | 92150-1056 | 4 | ||
ROLLER,4X6 | 610 | 610A0406 | 2 |
