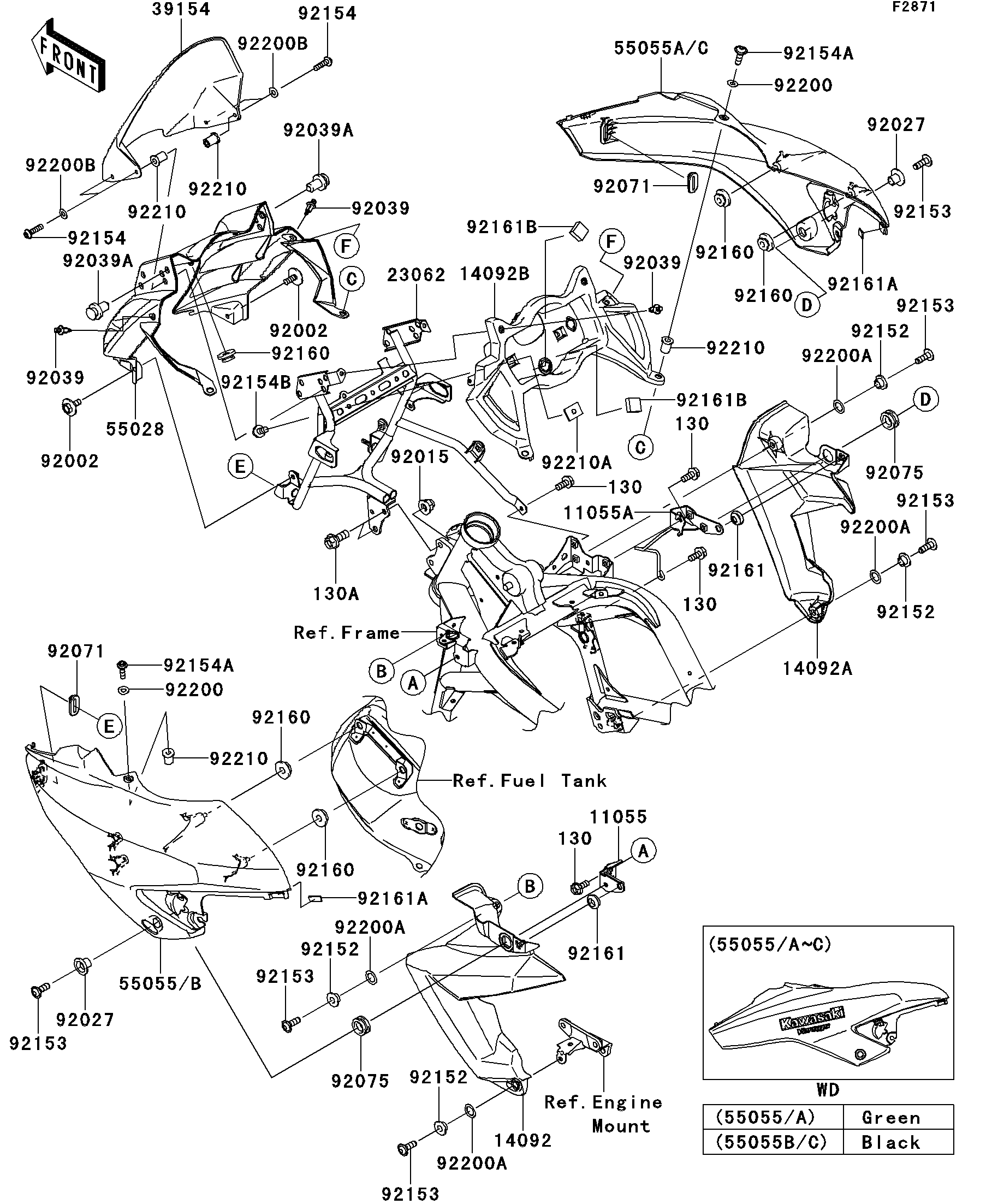

2014 VERSYS® ABS - Cowling

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
11055A
11055A
14092
14092
14092A
14092A
14092B
14092B
23062
23062
39154
39154
55028
55028
55055
55055
55055A
55055A
55055B
55055B
55055C
55055C
92002
92002
92002
92002
92015
92015
92027
92027
92027
92027
92039
92039
92039
92039
92039
92039
92039A
92039A
92039A
92039A
92071
92071
92071
92071
92075
92075
92075
92075
92152
92152
92152
92152
92152
92152
92152
92152
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200B
92200B
92200B
92200B
92210
92210
92210
92210
92210
92210
92210
92210
92210A
92210A
130
130
130
130
130
130
130
130
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,COWLING,LH 11055 11055-1887 1
BRACKET,COWLING,RH 11055A 11055-1888 1
COVER,RADIATOR,LH,F.S.BLACK 14092 14092-0074-18T 1
COVER,RADIATOR,RH,F.S.BLACK 14092A 14092-0075-18T 1
COVER,METER 14092B 14092-0264 1
BRACKET-COMP,COWLING,CNT 23062 23062-0112 1
WINDSHIELD 39154 39154-0053 1
COWLING,UPP 55028 55028-0309 1
COWLING,SIDE,LH,C.L.GREEN 55055 55055-5264-35P 1
COWLING,SIDE,RH,C.L.GREEN 55055A 55055-5265-35P 1
COWLING,SIDE,LH,M.S.BLACK 55055B 55055-5272-660 1 CA,US
COWLING,SIDE,RH,M.S.BLACK 55055C 55055-5273-660 1 CA,US
BOLT,6X16 92002 92002-1188 2
NUT,CAP,8MM 92015 92015-1151 2
COLLAR,L=9.6 92027 92027-1045 2
RIVET 92039 92039-0023 4
RIVET 92039A 92039-0098 2
GROMMET 92071 92071-0013 2
DAMPER 92075 92075-1634 2
COLLAR 92152 92152-1359 4
BOLT,6X18 92153 92153-0478 6
BOLT,SOCKET,5X16 92154 92154-0209 4
BOLT,SOCKET,5X20 92154A 92154-0210 2
BOLT,FLANGED,6X12 92154B 92154-1050 2
DAMPER 92160 92160-1613 5
DAMPER 92161 92161-0631 2
DAMPER 92161A 92161-0726 2
DAMPER,20X20X10 92161B 92161-0835 2
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 2
WASHER,10.4X15.9X0.5 92200A 92200-0157 4
WASHER,NYLON,5.3X11.5X0.5 92200B 92200-1480 4
NUT,WELL,5MM 92210 92210-0498 6
NUT,PLATE,6MM 92210A 92210-1352 2
BOLT-FLANGED,6X14 130 130BA0614 4
BOLT-FLANGED,8X20 130A 130BA0820 2
