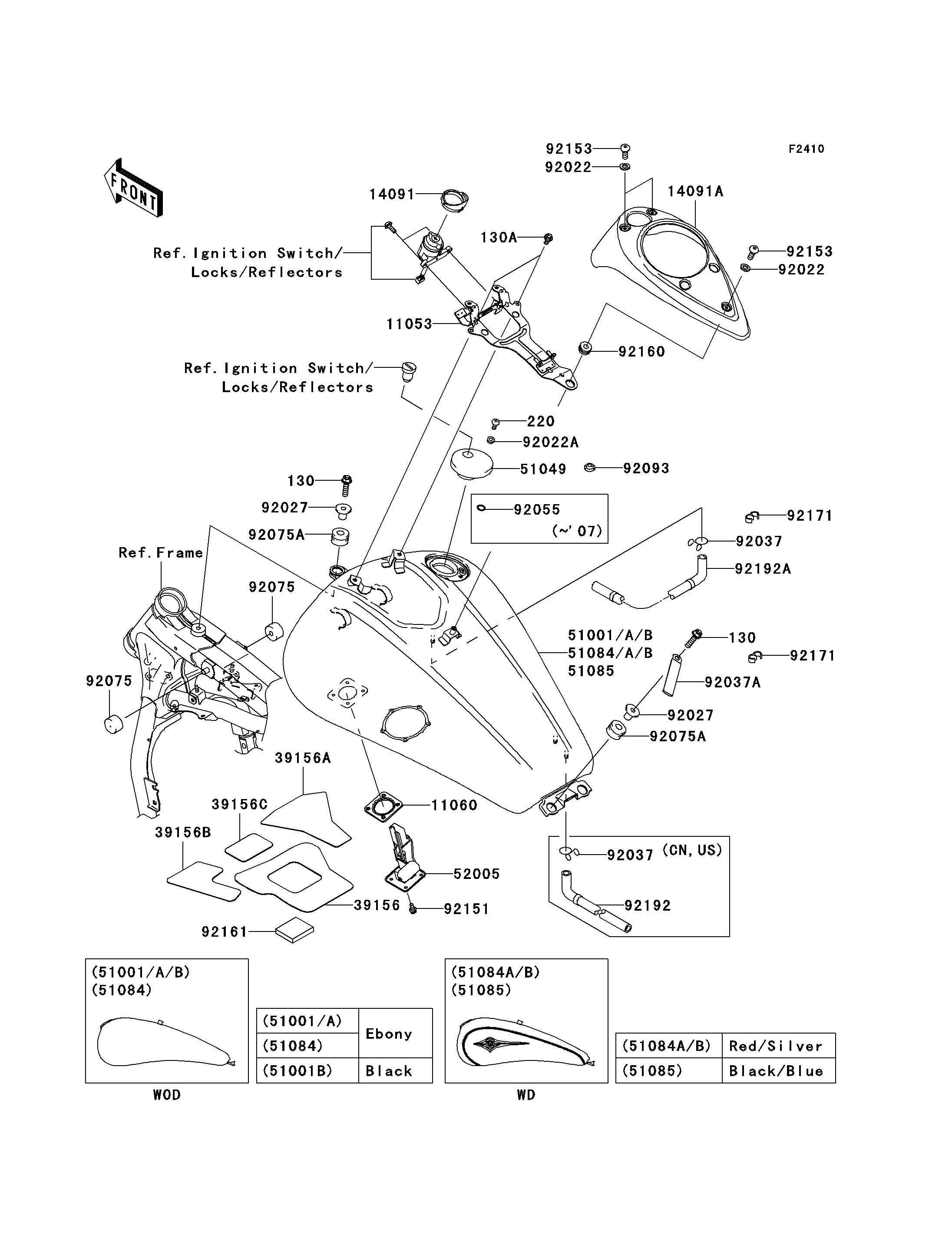

2007 Vulcan 1600 Classic - Fuel Tank(4/4)

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11053
11053
11060
11060
11060
11060
14091
14091
14091
14091
14091A
14091A
14091A
14091A
39156
39156
39156
39156
39156A
39156A
39156A
39156A
39156B
39156B
39156B
39156B
39156C
39156C
39156C
39156C
51049
51049
51049
51049
52005
52005
52005
52005
92022
92022
92022
92022
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92027
92027
92027
92027
92027
92027
92027
92027
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92055
92055
92055
92055
92075
92075
92075
92075
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92093
92093
92093
92093
92151
92151
92151
92151
92153
92153
92153
92153
92153
92153
92153
92153
92160
92160
92160
92160
92161
92161
92161
92161
92171
92171
92171
92171
92171
92171
92171
92171
92192A
92192A
92192A
92192A
130
130
130
130
130
130
130
130
130A
130A
130A
130A
220
220
220
220
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,METER COVER 11053 11053-0275 1
GASKET,FUEL GAUGE 11060 11060-1952 1
COVER,IGNITION SWITCH 14091 14091-0088 1
COVER,METER 14091A 14091-0091 1
PAD,FUEL TANK,CNT,RR 39156 39156-0019 1
PAD,FUEL TANK,RH 39156A 39156-0020 1
PAD,FUEL TANK,LH 39156B 39156-0021 1
PAD,FUEL TANK,CNT,FR 39156C 39156-0022 1
CAP-TANK,FUEL 51049 51049-0003 1
GAUGE,FUEL 52005 52005-0004 1
WASHER,6.2X11X1.5 92022 92022-183 3
WASHER,5.1X10X1.0 92022A 92022-1977 2
COLLAR,L=19.3 92027 92027-1780 3
CLAMP,TUBE 92037 92037-147 2
CLAMP,HARNESS,L=100 92037A 92037-1636 1
RING-O,ID=9 92055 92055-1552 2
DAMPER,FUEL TANK 92075 92075-125 2
DAMPER 92075A 92075-1736 3
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT,5X12 92151 92151-1599 4
BOLT,SOCKET,6X10 92153 92153-1096 3
DAMPER 92160 92160-1162 1
DAMPER 92161 92161-1338 1
CLAMP 92171 92171-1184 2
TUBE,DRAIN 92192A 92192-0038 1
BOLT-FLANGED,8X30 130 130H0830 3
BOLT-FLANGED,6X14 130A 130J0614 2
SCREW-PAN-CROS,5X10 220 220D0510 2
TANK-COMP-FUEL,RED/SILVER 51084A 51084-5313-224 1 US
TANK-COMP-FUEL,RED/SILVER 51084B 51084-5335-224 1 CA
TUBE,BREATHER 92192 92192-0024 1 US
