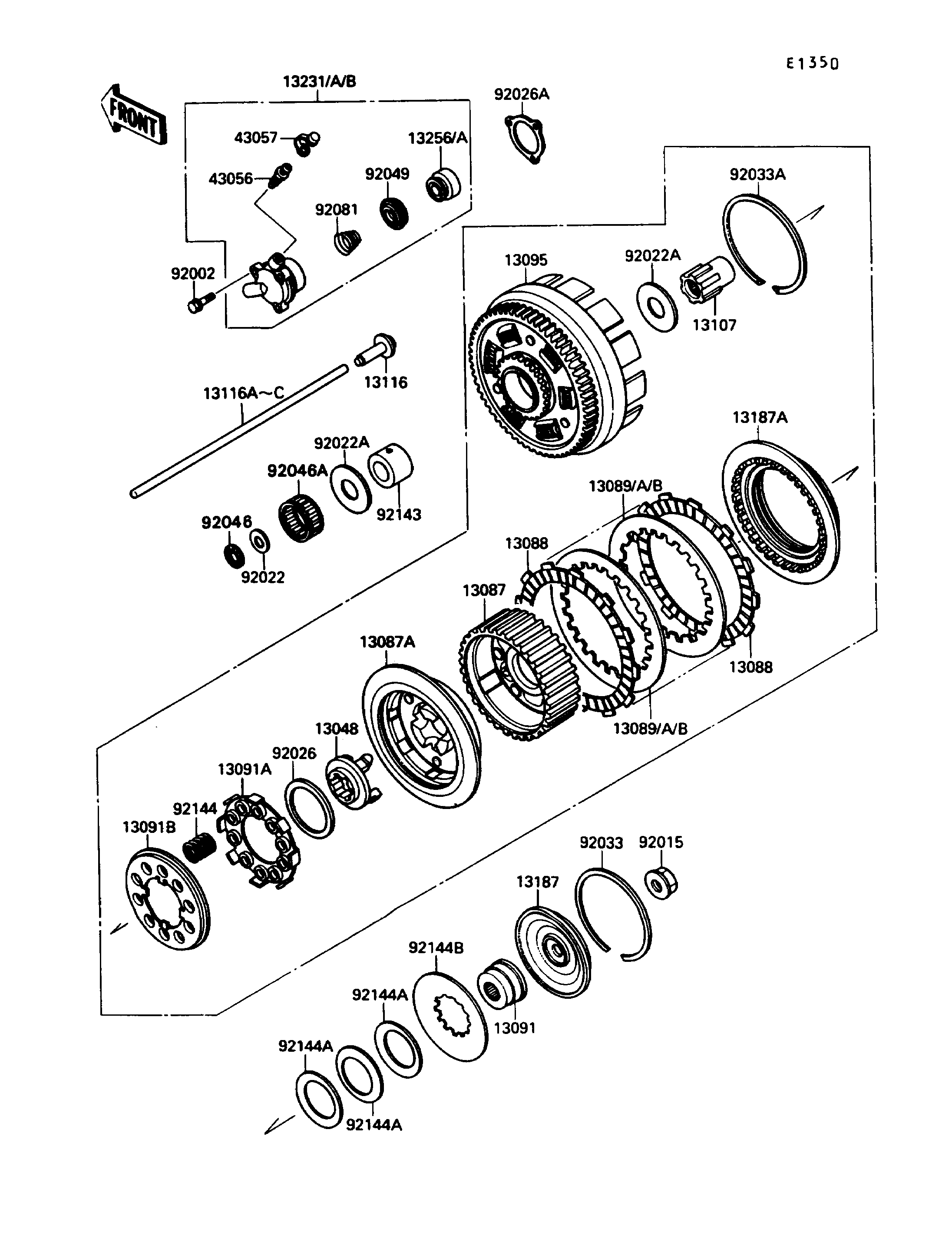

1989 Vulcan 88 SE - Clutch

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAM-DAMPER 13048 13048-1007 1
HUB-CLUTCH,OUTER 13087 13087-1103 1
HUB-CLUTCH,INNER 13087A 13087-1110 1
PLATE-FRICTION 13088 13088-1018 8
PLATE-CLUTCH,T=2.0 13089 13089-1075 AR
PLATE-CLUTCH,T=1.6 13089A 13089-1080 AR
PLATE-CLUTCH,T=2.3 13089B 13089-1081 AR
HOLDER,CLUTCH SPRING 13091 13091-1494 1
HOLDER,DAMPER SPRING 13091A 13091-1495 1
HOLDER,DAMPER SPRING 13091B 13091-1496 1
HOUSING-COMP-CLUTCH 13095 13095-1168 1
SHAFT,CLUTCH CAM DAMPER 13107 13107-1237 1
ROD-PUSH,CLUTCH 13116 13116-1102 1
ROD-PUSH 13116B 13116-1132 1
PLATE-CLUTCH OPERATING 13187 13187-1063 1
PLATE-CLUTCH OPERATING 13187A 13187-1066 1
RELEASE-ASSY-CLUTCH 13231A 13231-1064 1
PISTON 13256A 13256-1052 1
BREATHER-BRAKE 43056 43056-1052 1
CAP-BREATHER 43057 43057-1001 1
BOLT,6X25 92002 92002-1612 3
NUT,20MM 92015 92015-1461 1
WASHER,15.1X29X1.0 92022 92022-1463 1
WASHER,25.3X56X2.0 92022A 92022-1857 2
SPACER,59X70X3.5 92026 92026-1043 1
SPACER,CLUTCH RELEASE 92026A 92026-1263 1
RING-SNAP 92033 92033-1238 1
RING-SNAP 92033A 92033-1239 1
BEARING-NEEDLE,AXK1102 92046 92046-1052 1
BEARING-NEEDLE 92046A 92046-1175 1
SEAL-OIL,PISTON 92049 92049-1165 1
SPRING,CLUTCH RELEASE 92081 92081-1644 1
COLLAR,INPUT SHAFT 92143 92143-1076 1
SPRING,DAMPER 92144 92144-1187 10
SPRING,LIMITER 92144A 92144-1188 3
SPRING,CLUTCH 92144B 92144-1295 1
