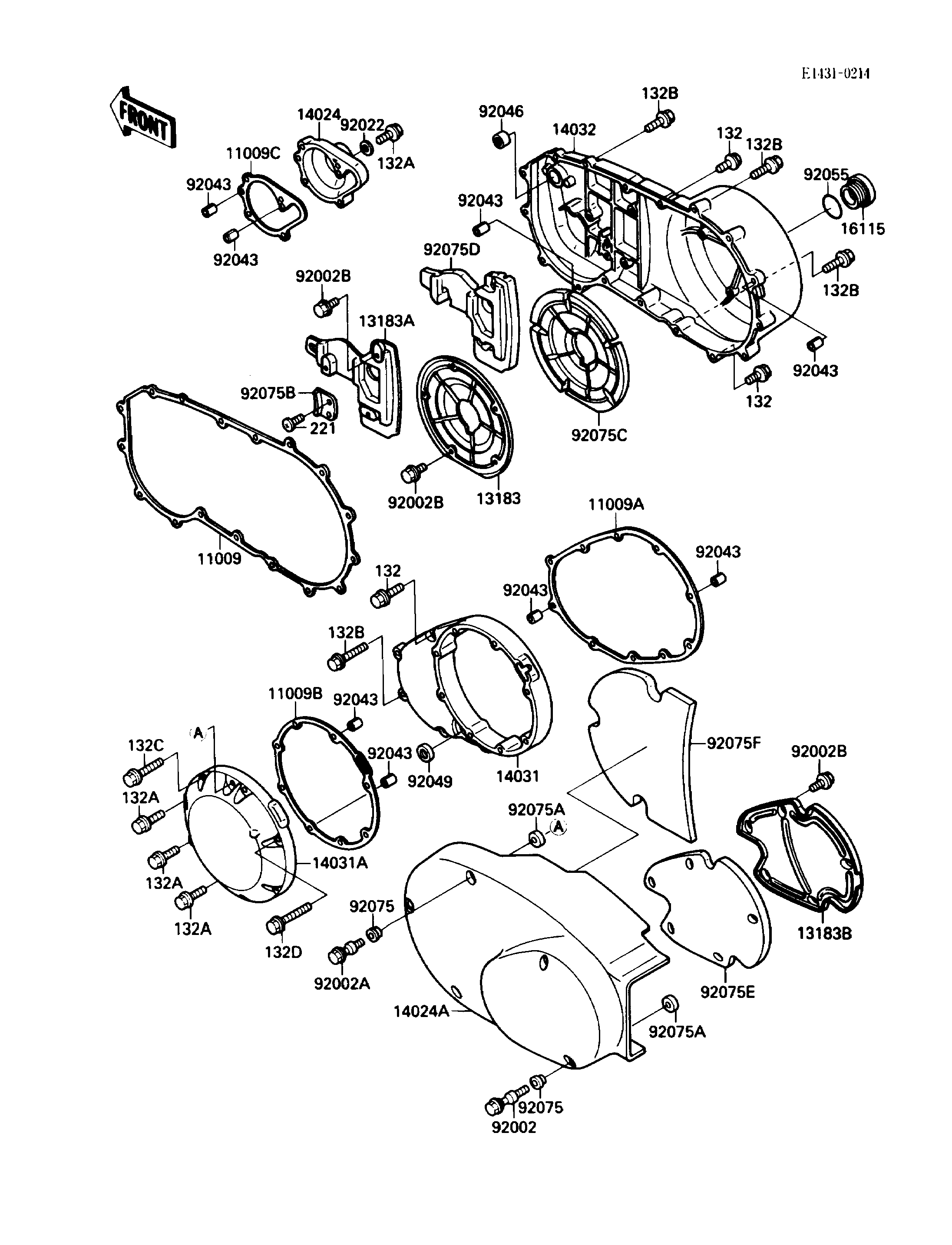

1989 Vulcan 88 SE - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CLUTCH COVER 11009 11009-1644 1
GASKET,GENERATOR 11009A 11009-1645 1
GASKET,GENERATOR OUTER 11009B 11009-1646 1
GASKET,WATER PUMP COVER 11009C 11009-1727 1
PLATE 13183 13183-1169 1
PLATE 13183A 13183-1170 1
PLATE,DAMPER 13183B 13183-1171 1
COVER,WATER PUMP 14024 14024-1402 1
COVER,LH 14024A 14024-1403 1
COVER-GENERATOR 14031 14031-1205 1
COVER-GENERATOR,OUTER 14031A 14031-1206 1
COVER-CLUTCH 14032 14032-1233 1
CAP-OIL FILLER 16115 16115-1056 1
BOLT 92002 92002-1814 2
BOLT 92002A 92002-1900 3
BOLT,6X8 92002B 92002-1944 13
WASHER,6.1X12X1 92022 92022-077 2
PIN,6.2X8X14 92043 92043-1263 8
BEARING-NEEDLE,HK1212 92046 92046-1163 1
SEAL-OIL,TB13225.5 92049 92051-005 1
RING-O,31.5X2.6 92055 92055-049 1
DAMPER 92075 92075-1855 5
DAMPER 92075A 92075-1856 5
DAMPER 92075B 92075-1905 1
DAMPER,CLUTCH COVER,RR 92075C 92075-1975 1
DAMPER,CLUTCH COVER,FR 92075D 92075-1976 1
DAMPER,LH COVER,RR 92075E 92075-1977 1
DAMPER,LH COVER,FR 92075F 92075-1978 1
BOLT-FLANGED-SMALL 132 132E0625 14
BOLT-FLANGED-SMALL 132A 132E0630 7
BOLT-FLANGED-SMALL 132B 132E0635 8
BOLT-FLANGED-SMALL 132C 132E0655 4
BOLT-FLANGED-SMALL 132D 132E0665 1
SCREW-CSK-CROS,6X12 221 221B0612 2
