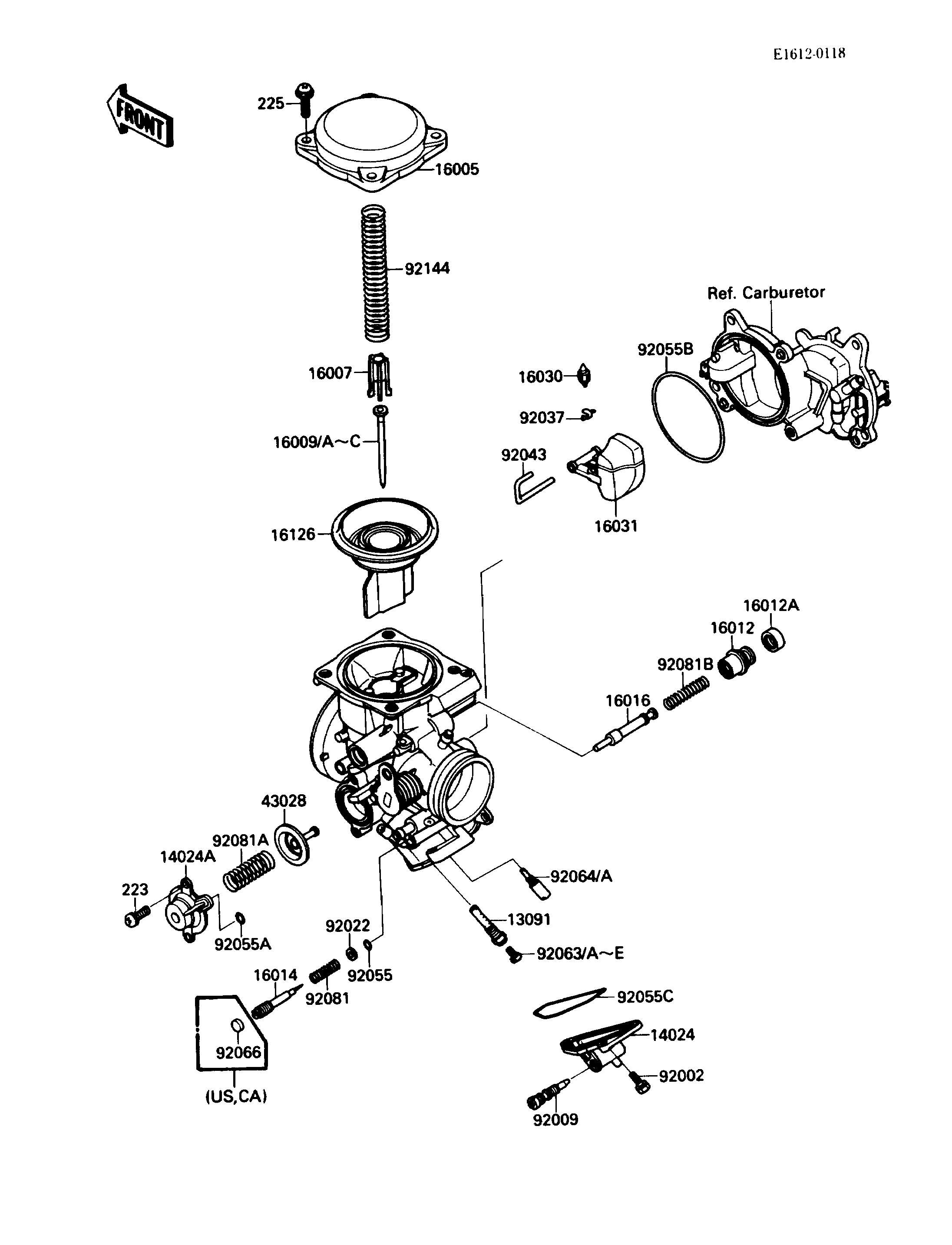

1989 Vulcan 88 SE - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1513 2
COVER,DRAIN 14024 14024-1608 2
COVER,AIR CUT VALVE 14024A 14025-1903 2
TOP-CHAMBER,MIXING 16005 16005-1054 2
SEAT-SPRING,VALVE 16007 16007-1117 2
NEEDLE-JET,RR,N36Q 16009 16009-1369 1
NEEDLE-JET,FR,N36P 16009A 16009-1370 1
CAP-STARTER PLUNGER 16012 16012-1051 2
CAP-STARTER PLUNGER 16012A 16012-1052 2
SCREW-PILOT AIR 16014 16014-1054 2
PLUNGER 16016 16016-1071 2
VALVE-FLOAT 16030 16030-1007 2
FLOAT 16031 16031-1066 2
VALVE,VACUUM 16126 16126-1203 2
DIAPHRAGM,AIR CUT VALVE 43028 43028-1053 2
BOLT,4X14 92002 92002-1761 4
SCREW,DRAIN,M6X1.0 92009 92009-1434 2
WASHER,PLAIN 92022 92022-1003 2
CLAMP,FLOAT VALVE 92037 16044-007 2
PIN,FLOAT 92043 92043-1285 2
RING-O,PILOT ADJUST 92055 92055-1002 2
RING-O 92055A 92055-1245 2
RING-O 92055B 92055-1291 2
RING-O,DRAIN COVER 92055C 92055-1400 2
JET-MAIN,#135 92063 92063-1014 2 (RACING USE ONLY)
JET-MAIN,#138 92063A 92063-1015 2 (RACING USE ONLY)
JET-MAIN,2ND,#125 92063B 92063-1069 2 (RACING USE ONLY)
JET-MAIN,2ND,#128 92063C 92063-1074 2 (RACING USE ONLY)
JET-MAIN,#130 92063D 92063-1075 1
JET-MAIN,#132 92063E 92063-1076 1
JET-PILOT,#42 92064 92064-1135 2
JET-PILOT,#40 92064A 92064-1136 2 (RACING USE ONLY)
SPRING,PILOT ADJUST SCREW 92081 92081-1002 2
SPRING,AIR CUT VALVE 92081A 92081-1719 2
SPRING,STARTER PLUNGER 92081B 92081-1761 2
SPRING,VACUUM VALVE 92144 92144-1219 2
SCREW-PAN-WS-CROS 223 223D0408 4
SCREW-PAN-WSP-CROS 225 225C0418 6
