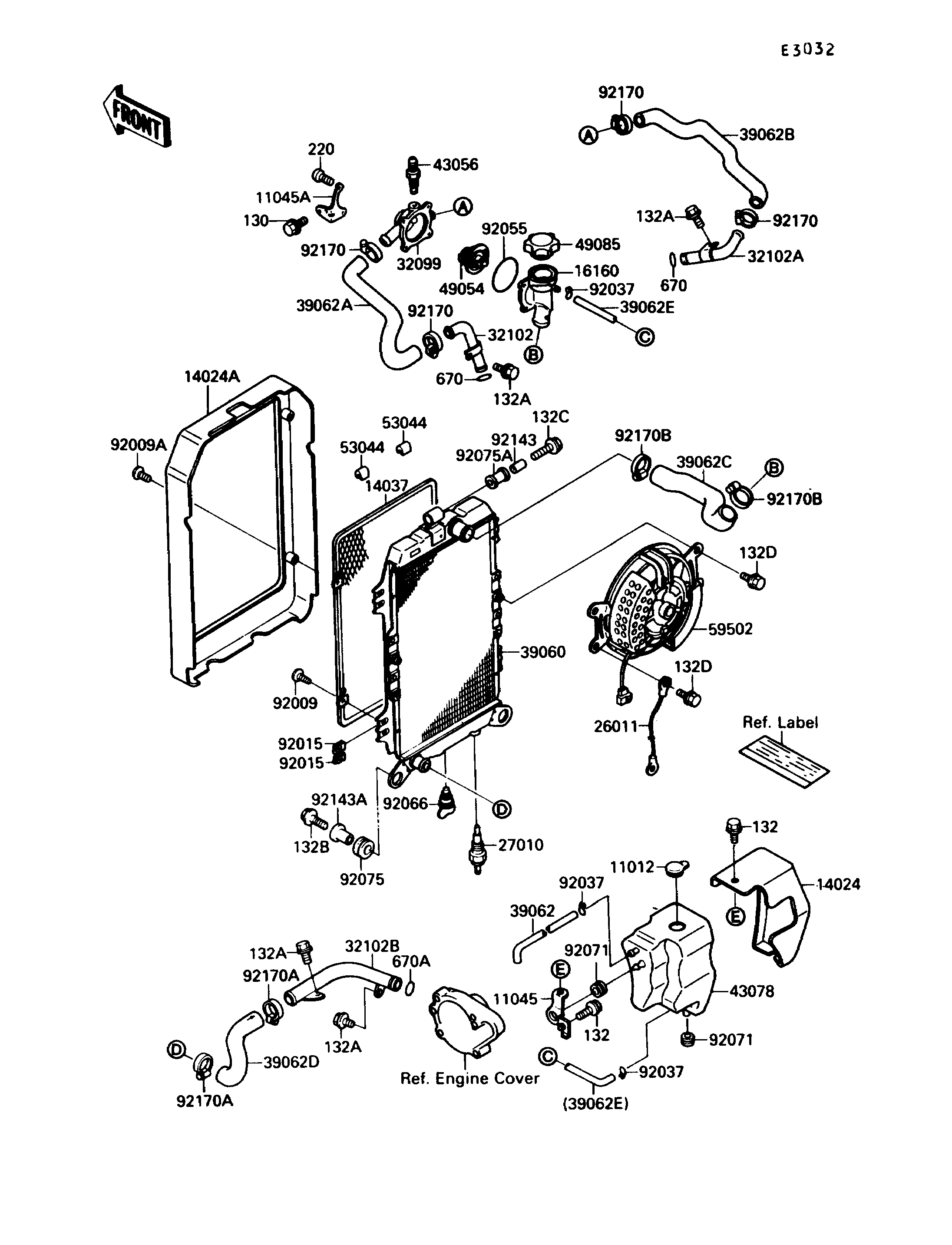

1989 Vulcan 88 SE - Radiator

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1585 1
BRACKET,RESERVOIR 11045 11045-1436 1
BRACKET,THERMOSTAT 11045A 11045-1437 1
COVER,RESERVOIR 14024 14024-1406 1
COVER,RADIATOR 14024A 14024-1516 1
SCREEN 14037 14037-1090 1
BODY,THERMOSTAT,UPP 16160 16160-1116 1
WIRE-LEAD 26011 26011-1412 1
SWITCH,FAN 27010 27010-1167 1
CASE,THERMOSTAT 32099 32099-1093 1
PIPE,HEAD,FR 32102 32102-1413 1
PIPE,HEAD,RR 32102A 32102-1414 1
PIPE,PUMP COVER-HOSE 32102B 32102-1415 1
RADIATOR 39060 39060-1077 1
HOSE-COOLING 39062 39062-1125 1
HOSE-COOLING,HEAD,FR 39062A 39062-1227 1
HOSE-COOLING,HEAD,RR 39062B 39062-1228 1
HOSE-COOLING,THERMO-RADIATOR 39062C 39062-1229 1
HOSE-COOLING,RADIATOR-PUMP 39062D 39062-1252 1
HOSE-COOLING 39062E 39062-1255 1
BREATHER 43056 43056-003 1
RESERVOIR 43078 43078-1085 1
THERMOSTAT 49054 49054-1051 1
CAP-ASSY-PRESSURE 49085 49085-1054 1
TRIM 53044 53044-1199 4
FAN-ASSY 59502 59502-1071 1
SCREW,TAPPING,6X16 92009 92009-1436 4
SCREW,TAPPING,6X30 92009A 92009-1481 4
NUT,6MM 92015 92015-1758 8
CLAMP,TUBE 92037 92037-147 3
RING-O,53.5X2.6 92055 92055-112 1
PLUG,DRAIN 92066 92066-1293 1
GROMMET 92071 92071-1115 2
DAMPER 92075 92075-1665 2
DAMPER 92075A 92075-1920 1
COLLAR 92143 92027-209 1
COLLAR 92143A 92143-1063 2
CLAMP,COOLING HOSE 92170 92170-1032 4
CLAMP,COOLING HOSE 92170A 92170-1034 2
CLAMP,COOLING HOSE 92170B 92170-1035 2
BOLT-FLANGED,6X12 130 130B0612 2
BOLT-FLANGED-SMALL 132 132E0610 2
BOLT-FLANGED-SMALL 132A 132E0612 4
BOLT-FLANGED-SMALL 132B 132E0625 2
BOLT-FLANGED-SMALL 132C 132E0640 1
BOLT-FLANGED-SMALL 132D 132G0610 4
SCREW-PAN-CROS,5X14 220 220D0514 4
O RING,14MM 670 670B2014 2
O RING,18MM 670A 670B2018 1
