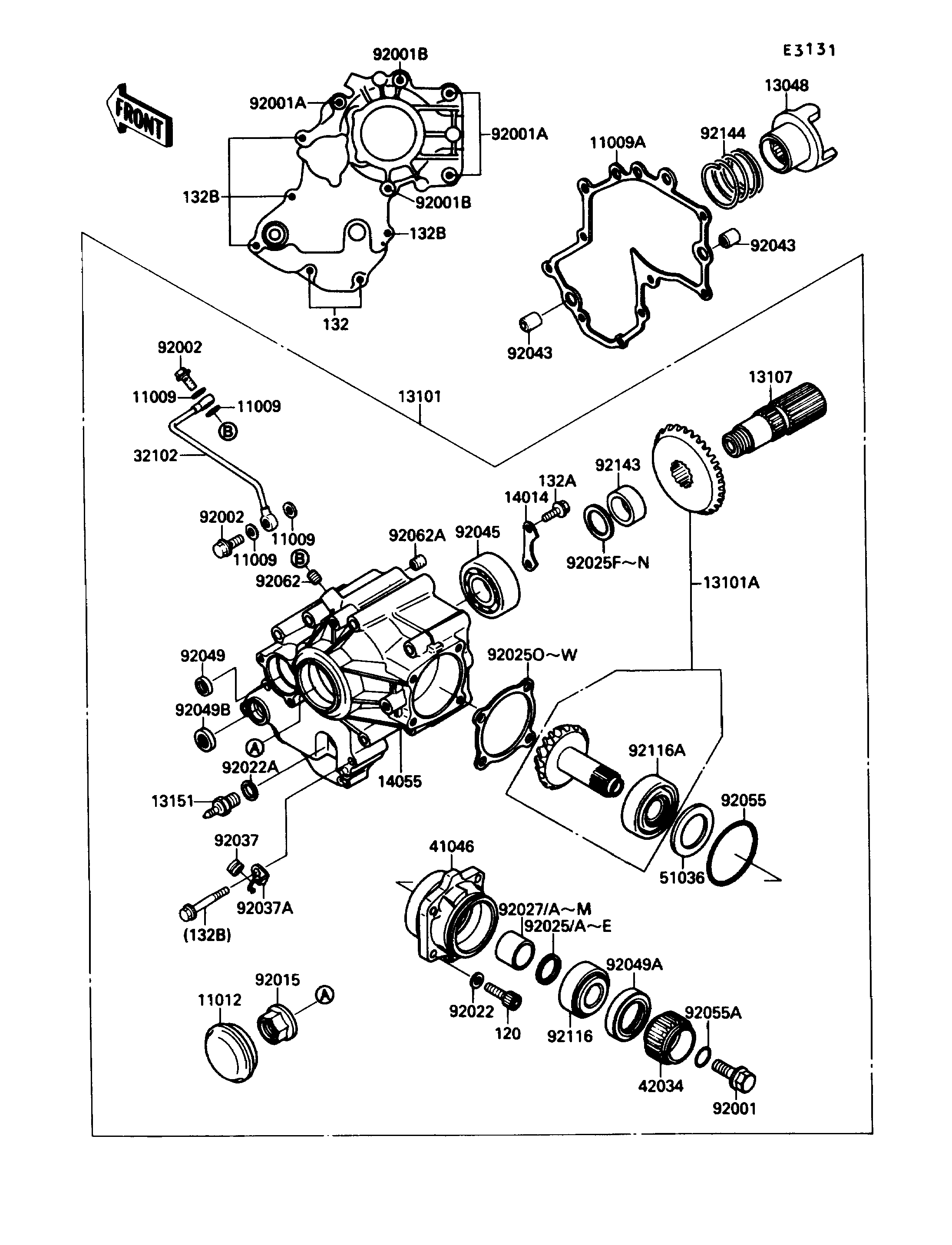

1989 Vulcan 88 SE - Front Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PIPE,8.2X14X1.0 11009 11009-1344 4
GASKET,GEAR CASE 11009A 11009-1648 1
CAP 11012 11012-1071 1
CAM-DAMPER 13048 13048-1074 1
GEAR-ASSY,BEVEL,FR 13101 13101-1118 1
GEAR-ASSY,BEVEL,FR 13101A 13101-5065 1
SHAFT,BEVEL,FR 13107 13107-1197 1
SWITCH-COMP 13151 13151-1010 1
PLATE-POSITION 14014 14014-1084 1
CASE-GEAR 14055 14055-1074 1
PIPE 32102 32102-1411 1
HOUSING-BEARING 41046 41046-1085 1
COUPLING,FR DRIVEN 42034 42034-1091 1
CUP 51036 51036-1002 1
BOLT,FLANGED,12X42 92001 92001-1169 1
BOLT,8X90 92001A 92001-1480 3
BOLT,FLANGED,8X110 92001B 92001-1597 2
BOLT,BANJO,8X20 92002 92002-1429 2
NUT,24MM 92015 92015-1554 1
WASHER,8.5X13X1 92022 92022-1028 4
WASHER 92022A 92022-1211 1
SHIM,25.2X29.8X1.70 92025 92025-1072 AR
SHIM,25.2X29.8X1.72 92025A 92025-1073 AR
SHIM,25.2X29.8X1.74 92025B 92025-1074 AR
SHIM,25.2X29.8X1.76 92025C 92025-1075 AR
SHIM,25.2X29.8X1.78 92025D 92025-1076 AR
SHIM,25.2X29.8X1.80 92025E 92025-1077 AR
SHIM,25.3X36X0.15 92025F 92025-1688 AR
SHIM,25.3X36X0.50 92025G 92025-1689 AR
SHIM,25.3X36X0.60 92025H 92025-1690 AR
SHIM,25.3X36X0.70 92025I 92025-1691 AR
SHIM,25.3X36X0.80 92025J 92025-1692 AR
SHIM,25.3X36X0.90 92025K 92025-1693 AR
SHIM,25.3X36X1.00 92025L 92025-1694 AR
SHIM,25.3X36X1.10 92025M 92025-1695 AR
SHIM,25.3X36X1.20 92025N 92025-1696 AR
SHIM,T=0.15 92025O 92025-1818 AR
SHIM,T=0.50 92025P 92025-1819 AR
SHIM,T=0.60 92025Q 92025-1820 AR
SHIM,T=0.70 92025R 92025-1821 AR
SHIM,T=0.80 92025S 92025-1822 AR
SHIM,T=0.90 92025T 92025-1823 AR
SHIM,T=1.00 92025U 92025-1824 AR
SHIM,T=1.20 92025V 92025-1825 AR
SHIM,T=0.10 92025W 92025-1826 AR
COLLAR,25.2X29.8X22.8 92027 92027-1152 AR
COLLAR,25.2X29.8X22.9 92027A 92027-1153 AR
COLLAR,25.2X29.8X23 92027B 92027-1154 AR
COLLAR,25.2X29.8X23.1 92027C 92027-1155 AR
COLLAR,25.2X29.8X23.2 92027D 92027-1156 AR
COLLAR,25.2X29.8X23.3 92027E 92027-1157 AR
COLLAR,25.2X29.8X23.4 92027F 92027-1158 AR
COLLAR,25.2X29.8X23.5 92027G 92027-1159 AR
COLLAR,25.2X29.8X23.6 92027H 92027-1160 AR
COLLAR,25.2X29.8X23.7 92027I 92027-1161 AR
COLLAR,25.2X29.8X23.8 92027J 92027-1162 AR
COLLAR,25.2X29.8X23.9 92027K 92027-1163 AR
COLLAR,25.2X29.8X24 92027L 92027-1164 AR
COLLAR,25.2X29.8X24.1 92027M 92027-1165 AR
GROMMET,HOSE CLAMP 92037 43064-006 1
CLAMP 92037A 92037-1873 1
PIN,DOWEL,14X14 92043 92042-032 2
BEARING-BALL,6305C2 92045 92045-1165 1
SEAL-OIL,SD-8187 92049 92049-1017 1
SEAL-OIL,TC35527 92049A 92049-1038 1
SEAL-OIL,TB13225.5 92049B 92051-005 1
RING-O,ID=64.4 92055 92055-1043 1
RING-O,ID=18.64 92055A 92055-1044 1
NOZZLE,6X8 92062 92062-1066 1
NOZZLE,10X10 92062A 92062-1067 1
BEARING-ROLLER,HI-CAP30205 92116 92116-1062 1
BEARING-ROLLER,HI-CAP30305 92116A 92116-1063 1
COLLAR,25.3X36X10 92143 92027-1968 1
SPRING,CAM DAMPER 92144 92144-1193 1
BOLT-SOCKET,8X30 120 120P0830 4
BOLT-FLANGED-SMALL 132 132E0630 2
BOLT-FLANGED-SMALL 132A 132G0616 2
BOLT-FLANGED-SMALL 132B 132G0655 4
