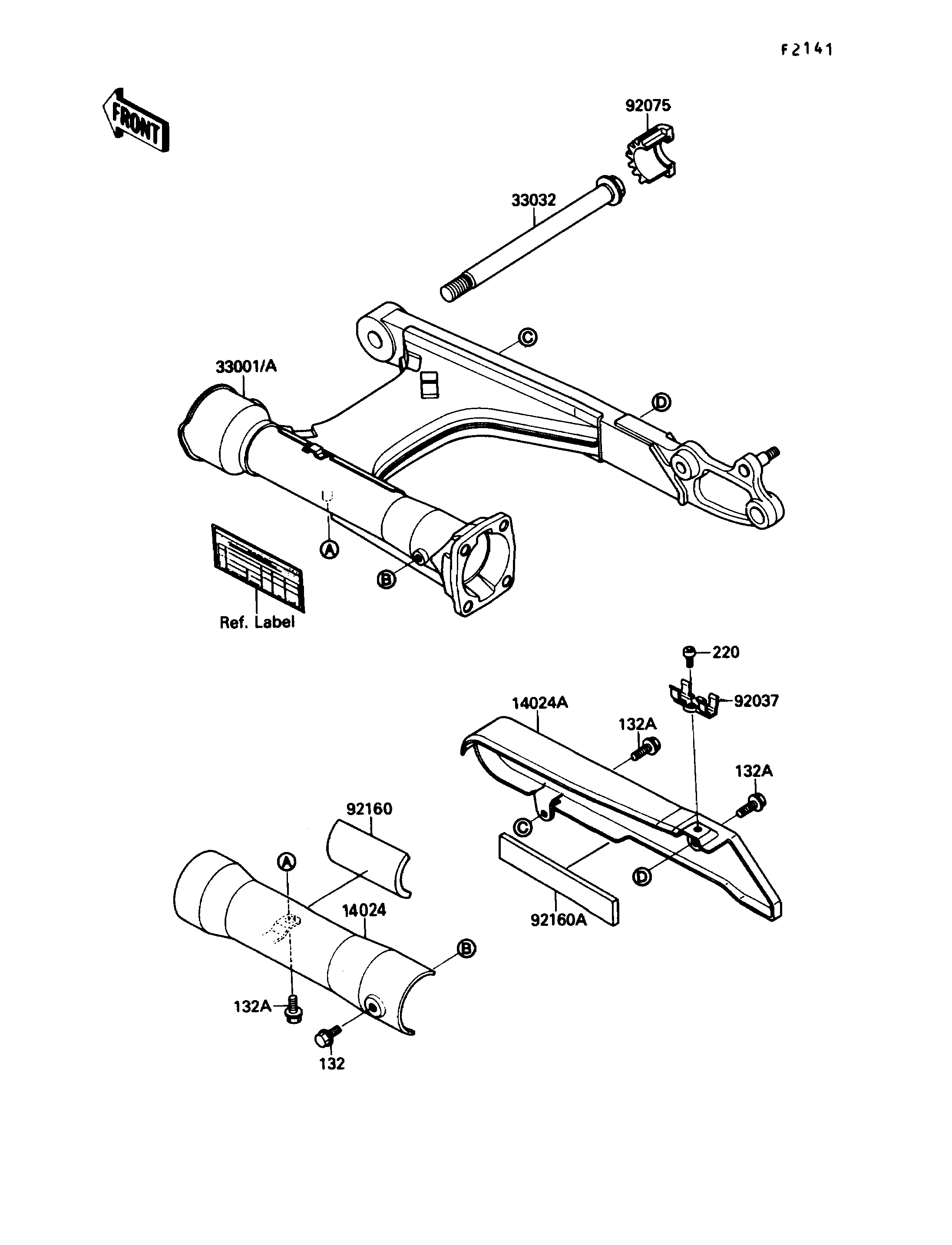

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SWING ARM,LH 14024 14024-1410 1
COVER,SWING ARM,RH 14024A 14024-1411 1
ARM-COMP-SWING,SILVER NO.25 33001 33001-1287-CE 1
SHAFT-SWING ARM 33032 33032-1131 1
CLAMP 92037 92037-1879 1
DAMPER,SWING ARM COVER 92075 92075-1917 1
DAMPER 92160 92160-1004 1
DAMPER,SWING ARM COVER,RH 92160A 92160-1005 1
BOLT-FLANGED-SMALL 132 132E0610 1
BOLT-FLANGED-SMALL 132A 132E0612 3
SCREW-PAN-CROS,5X8 220 220E0508 1
