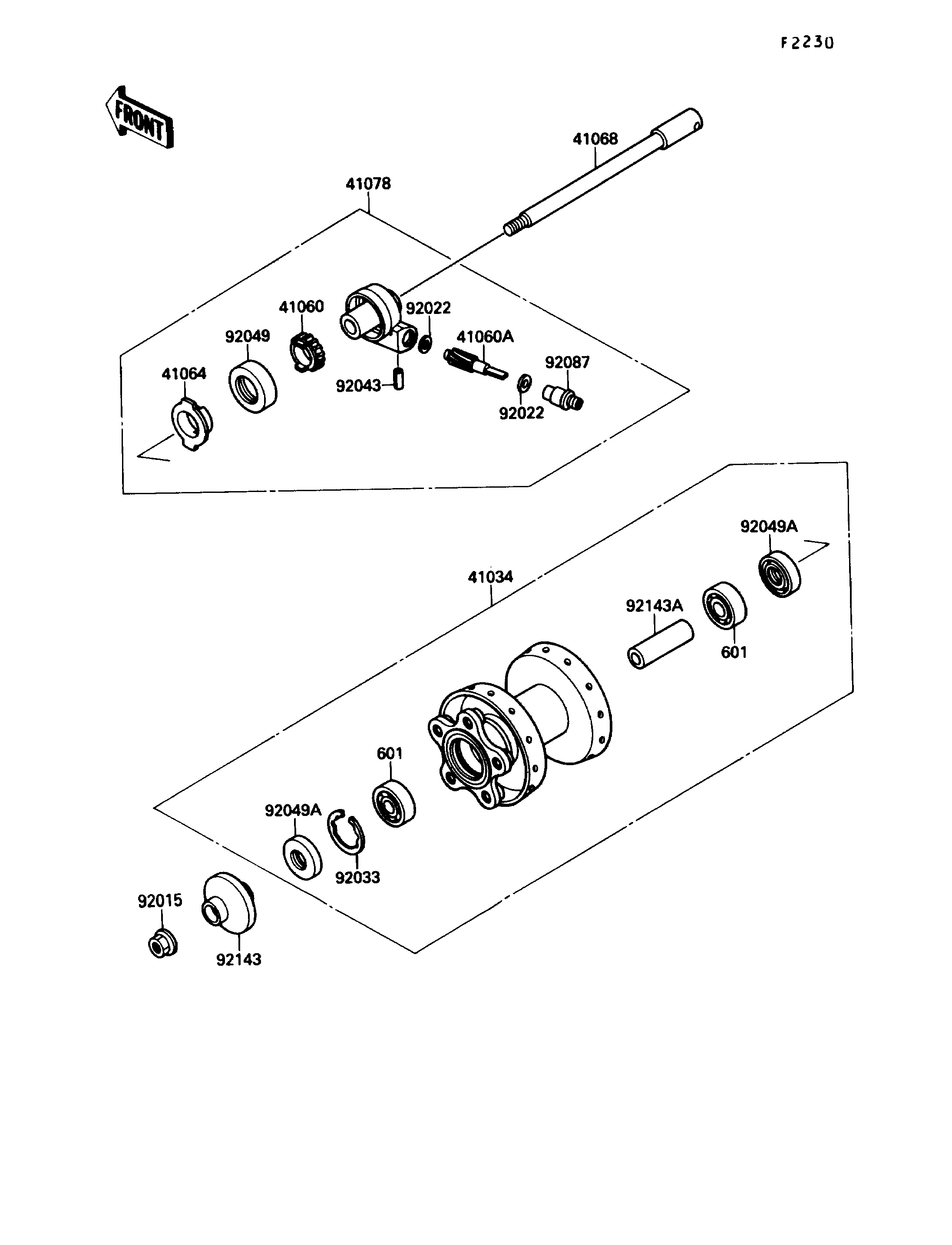

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,FRONT BRAKE 41034 41034-1162 1
GEAR-METER SCREW,26T 41060 41059-026 1
GEAR-METER SCREW,9T 41060A 41060-1006 1
RECEIVER-SPEEDOMETER 41064 41064-1053 1
AXLE,FR 41068 41068-1243 1
CASE-ASSY-METER GEAR 41078 41078-1065 1
NUT,FLANGED,14MM 92015 92015-1032 1
WASHER,5.1X9X0.4 92022 41063-001 2
RING-SNAP,42MM 92033 92033-1041 1
PIN,SPRING 92043 41082-001 1
SEAL-OIL,BJN30427-C3 92049 92049-1057 1
SEAL-OIL,BJN22425 92049A 92049-1058 2
BUSHING-METER GEAR 92087 92087-1056 1
COLLAR,FRONT AXLE,L=30 92143 92143-1082 1
COLLAR,FRONT BRAKE DRUM,L=105 92143A 92143-1113 1
BEARING-BALL,#6302UG 601 601B6302UG 2
