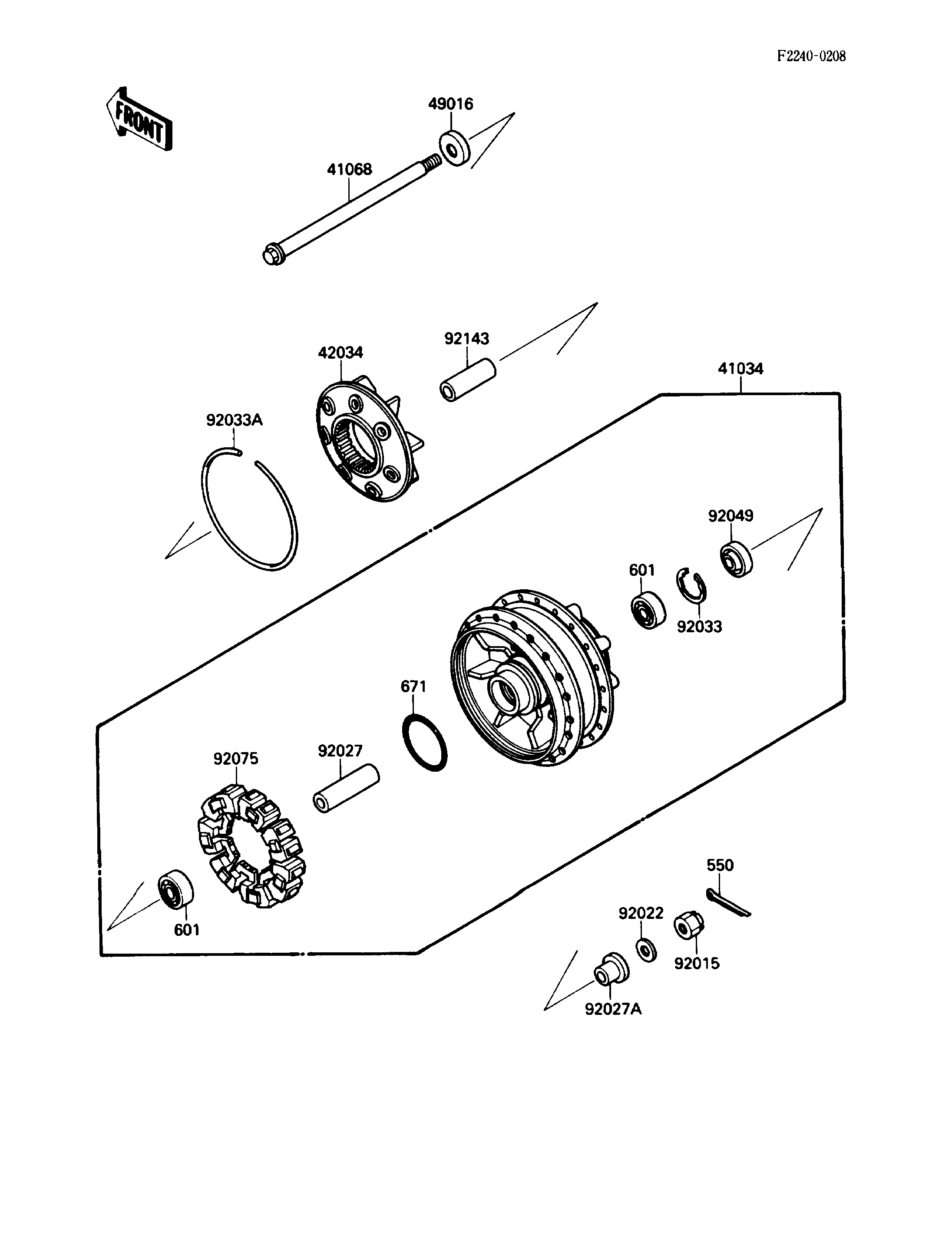

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,REAR BRAKE 41034 41034-1163 1
AXLE,RR 41068 41068-1197 1
COUPLING,RR HUB 42034 42034-1011 1
COVER-SEAL 49016 49016-1019 1
NUT,CASTLE,18MM 92015 42045-018 1
WASHER,21X33X2.6 92022 42046-003 1
COLLAR,20.2X28X105.5 92027 92027-1901 1
COLLAR,RR AXLE,L=21.5 92027A 92027-1902 1
RING-SNAP,52MM 92033 92033-1043 1
RING-SNAP,220MM 92033A 92033-1230 1
SEAL-OIL,28X52X5 92049 92049-1061 1
DAMPER,SHOCK,RR HUB 92075 92075-1121 1
COLLAR,20.2X28X86 92143 92027-1969 1
PIN-COTTER,4.0X35 550 550D4035 1
BEARING-BALL,#6304ZZC3 601 601B6304ZZ 2
O RING,80MM 671 671B2580 1
