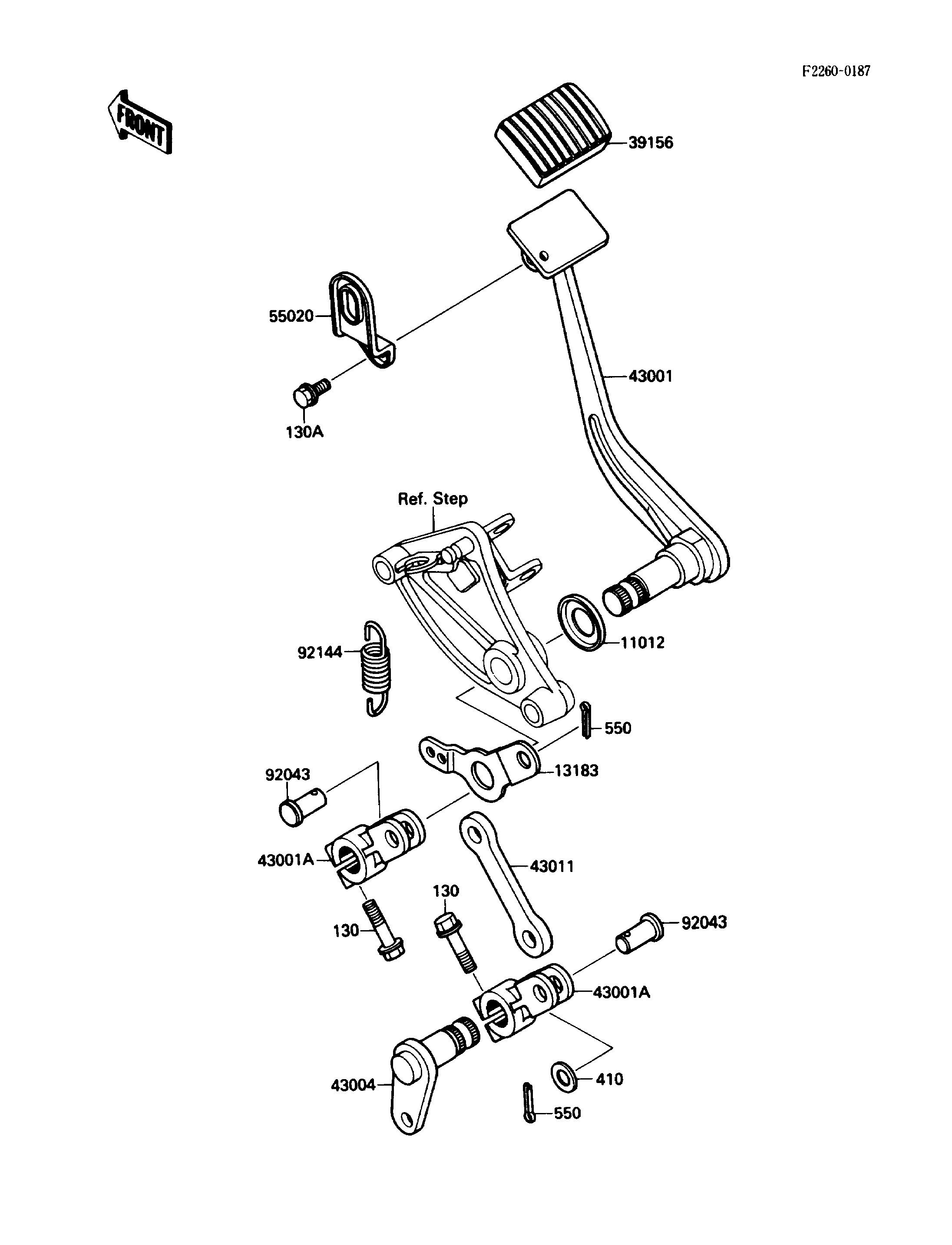

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,BRAKE PEDAL 11012 11012-1582 1
PLATE,BRAKE PEDAL RETURN 13183 13183-1099 1
PAD,BRAKE PEDAL 39156 39156-1071 1
LEVER-BRAKE,PEDAL 43001 43001-1222 1
LEVER-BRAKE,LINK 43001A 43001-1223 2
SHAFT-BRAKE 43004 43004-1121 1
ROD-BRAKE 43011 43011-1137 1
GUARD,BRAKE PEDAL 55020 55020-1268 1
PIN,10X20.5 92043 92043-1352 2
SPRING,BRAKE PEDAL RETURN 92144 92144-1169 1
BOLT-FLANGED,8X25,BLACK 130 130J0825 2
BOLT-FLANGED,6X8 130A 130N0608 1
WASHER-PLAIN-SMALL,10MM,BLACK 410 410F1000 1
PIN-COTTER,2.0X15 550 550D2015 2
