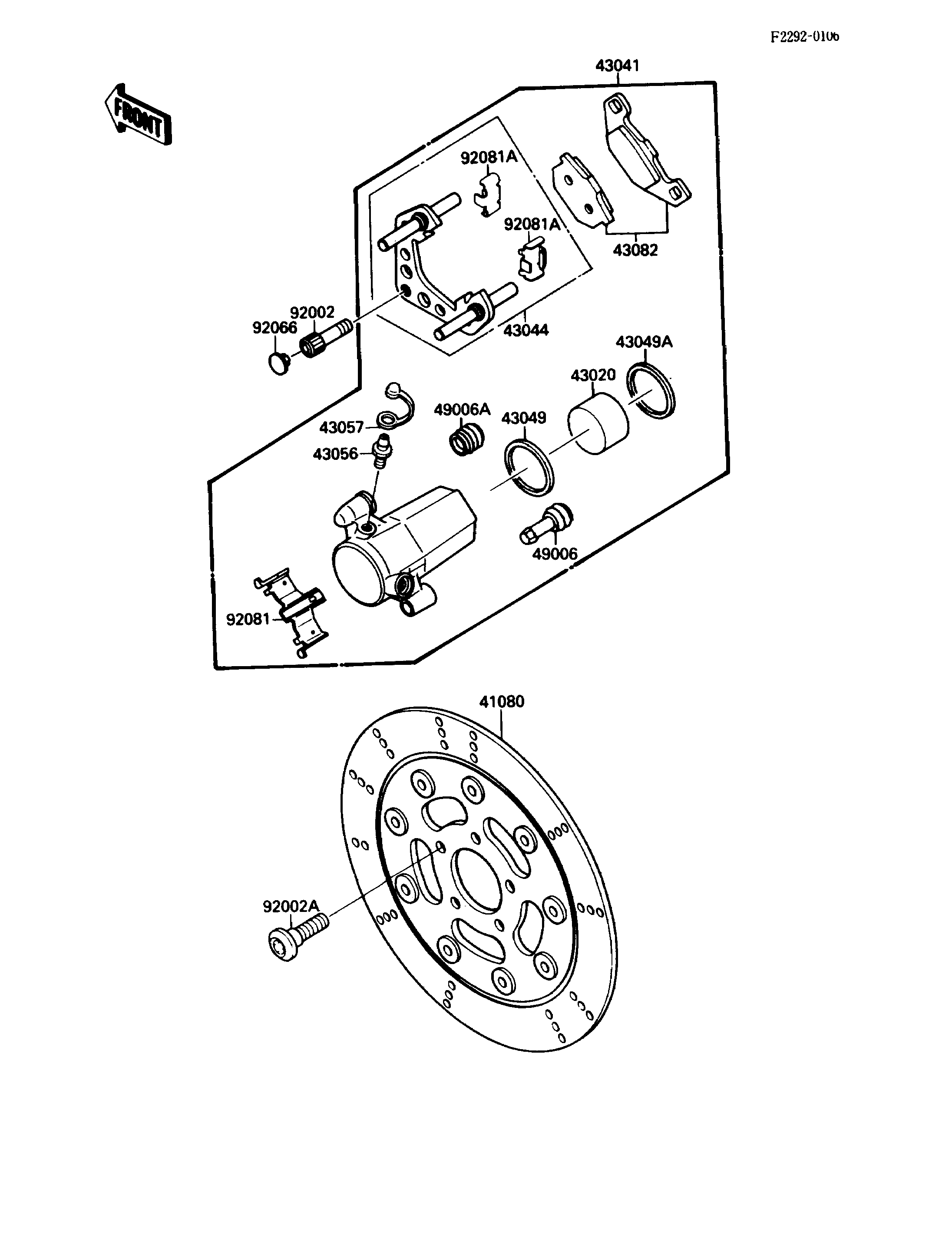

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR 41080 41080-1199 1
PISTON-COMP-BRAKE 43020 43020-1051 1
CALIPER-ASSY,FR,LH 43041 43041-1247 1
HOLDER-COMP-CALIPER,FR,LH 43044 43044-1078 1
RING,PISTON SEAL 43049 43049-002 1
PACKING,PISTON 43049A 43049-1028 1
BREATHER 43056 43056-003 1
CAP-BREATHER 43057 43057-003 1
PAD-ASSY-BRAKE 43082 43082-1080 1
BOOT,CALIPER 49006 49006-1094 1
BOOT,CALIPER 49006A 49006-1095 1
BOLT,SOCKET,10X33 92002 92001-1901 2
BOLT,SOCKET,8X20 92002A 92002-1953 5
PLUG 92066 92066-1285 2
SPRING,PAD 92081 92081-1525 1
SPRING,PAD STOPPER 92081A 92081-1661 2
