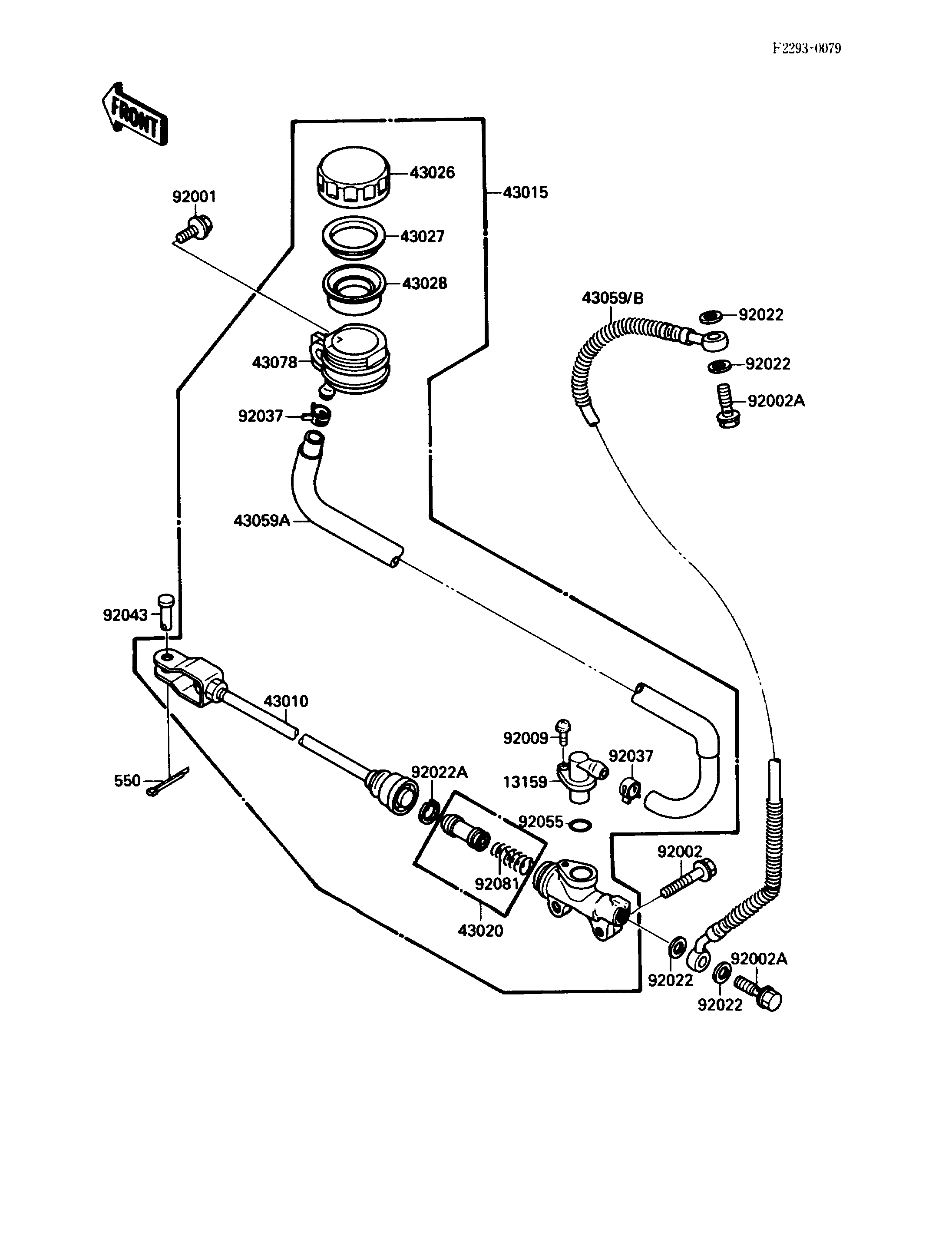

1989 Vulcan 88 SE - Rear Master Cylinder
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CONNECTOR | 13159 | 13159-1058 | 1 | ||
ROD-ASSY-BRAKE | 43010 | 43010-1064 | 1 | ||
CYLINDER-ASSY-MASTER,RR | 43015 | 43015-1349 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1057 | 1 | ||
CAP-BRAKE | 43026 | 43026-1051 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1057 | 1 | ||
HOSE-BRAKE,RR MASTER CYLINDER | 43059A | 43059-1414 | 1 | ||
HOSE-BRAKE,RR | 43059B | 43059-1439 | 1 | ||
RESERVOIR,RR MASTER CYLINDER | 43078 | 43078-1058 | 1 | ||
BOLT,W/P,6X16 | 92001 | 92001-1860 | 1 | ||
BOLT,FLANGED,8X30 | 92002 | 92002-1539 | 2 | ||
BOLT,OIL,L=23 | 92002A | 92002-1975 | 2 | ||
SCREW | 92009 | 92009-1486 | 1 | ||
WASHER,10.5X15X1.5 | 92022 | 43067-001 | 4 | ||
WASHER,CIRCRIP | 92022A | 92022-1601 | 1 | ||
CLAMP,BRAKE HOSE | 92037 | 92037-1547 | 2 | ||
PIN,8X16 | 92043 | 92043-1013 | 1 | ||
RING-O,MASTER CYLINDER | 92055 | 92055-1251 | 1 | ||
SPRING,MASTER CYLINDER | 92081 | 92081-1737 | 1 | ||
PIN-COTTER,2.0X15 | 550 | 550D2015 | 1 |
