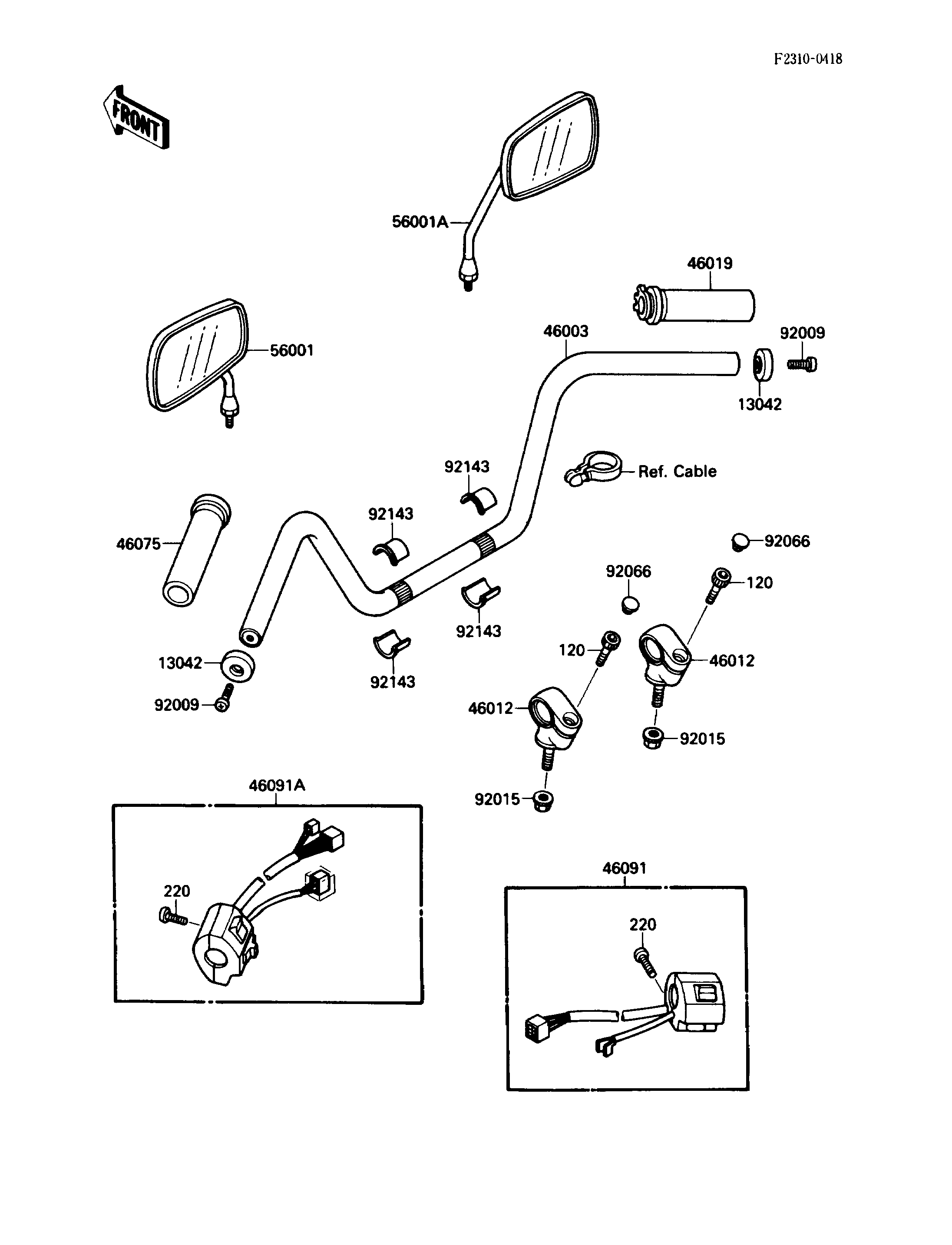

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-1068 2
HANDLE 46003 46003-1243 1
HOLDER-HANDLE 46012 46012-1171 2
GRIP-ASSY,THROTTLE 46019 46019-1065 1
GRIP,LH 46075 46075-1074 1
HOUSING-ASSY-CONTROL,RH 46091 46091-1448 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-1449 1
MIRROR-ASSY,LH 56001 56001-1303 1
MIRROR-ASSY,RH 56001A 56001-1304 1
SCREW,8X20 92009 92009-1484 2
NUT,LOCK,FLANGED,10MM 92015 92015-1717 2
PLUG 92066 92066-1285 2
COLLAR,HANDLE HOLDER 92143 92143-1098 4
BOLT-SOCKET,10X25 120 120P1025 2
SCREW-PAN-CROS,5X14 220 220E0514 4
