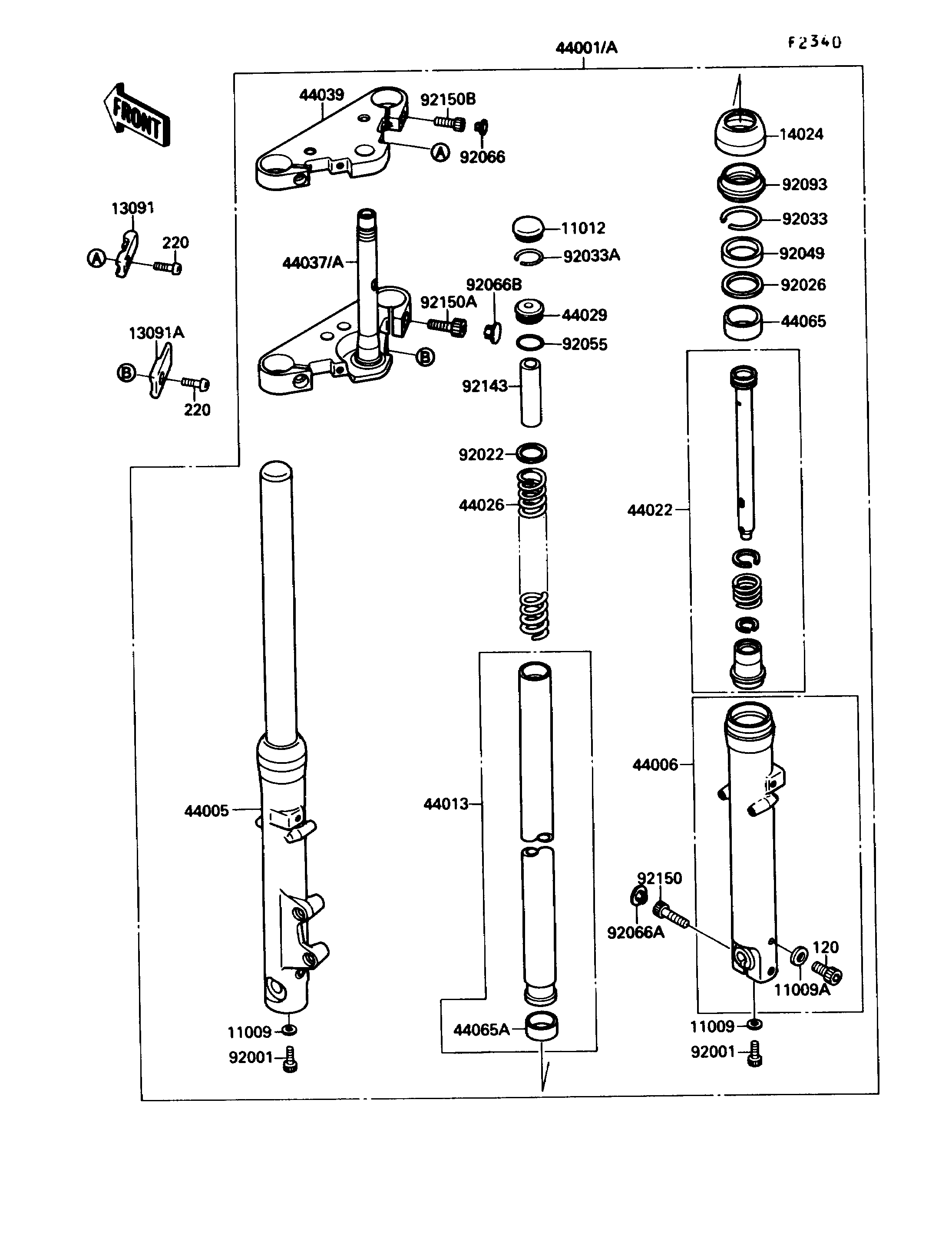

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FORK CYLINDER BOLT | 11009 | 44045-051 | 2 | ||
GASKET,DRAIN PLUG | 11009A | 44045-052 | 2 | ||
CAP,FORK TOP | 11012 | 11012-1618 | 2 | ||
HOLDER,UPP | 13091 | 13091-1482 | 2 | ||
HOLDER,LWR | 13091A | 13091-1483 | 2 | ||
COVER,FORK OUTER TUBE | 14024 | 14024-1600 | 2 | ||
FORK-FRONT | 44001A | 44001-1697 | 1 | ||
PIPE-LEFT FORK OUTER | 44005 | 44005-1264 | 1 | ||
PIPE-RIGHT FORK OUTER | 44006 | 44006-1261 | 1 | ||
PIPE-FORK INNER | 44013 | 44013-1269 | 2 | ||
CYLINDER-FORK | 44022 | 44022-1216 | 2 | ||
SPRING-FRONT FORK | 44026 | 44026-1373 | 2 | ||
SEAT-FORK SPRING | 44029 | 44029-1125 | 2 | ||
HOLDER-FORK UNDER | 44037A | 44037-1238 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-1156 | 1 | ||
BUSHING-FRONT FORK | 44065 | 44065-1079 | 2 | ||
BUSHING-FRONT FORK,INNER PIPE | 44065A | 44065-1080 | 2 | ||
BOLT,FORK CYLINDER | 92001 | 92001-1464 | 2 | ||
WASHER | 92022 | 92022-1909 | 2 | ||
SPACER,FORK OUTER | 92026 | 92026-1276 | 2 | ||
RING-SNAP,FORK OUTER | 92033 | 92033-1222 | 2 | ||
RING-SNAP,SPRING SEAT | 92033A | 92033-1223 | 2 | ||
SEAL-OIL,FORK OUTER | 92049 | 92049-1272 | 2 | ||
RING-O,SPRING SEAT | 92055 | 92055-1363 | 2 | ||
PLUG | 92066 | 92066-1277 | 2 | ||
PLUG | 92066A | 92066-1285 | 1 | ||
PLUG | 92066B | 92066-1302 | 2 | ||
SEAL,FORK OUTER TUBE | 92093 | 92093-1231 | 2 | ||
COLLAR,FORK,L=150 | 92143 | 92143-1161 | 2 | ||
BOLT,SOCKET,10X40 | 92150 | 92150-1029 | 1 | ||
BOLT,SOCKET,12MM | 92150A | 92150-1030 | 2 | ||
BOLT,SOCKET,8MM | 92150B | 92150-1031 | 2 | ||
BOLT-SOCKET | 120 | 120P0608 | 2 | ||
SCREW-PAN-CROS,6X20 | 220 | 220E0620 | 4 |
