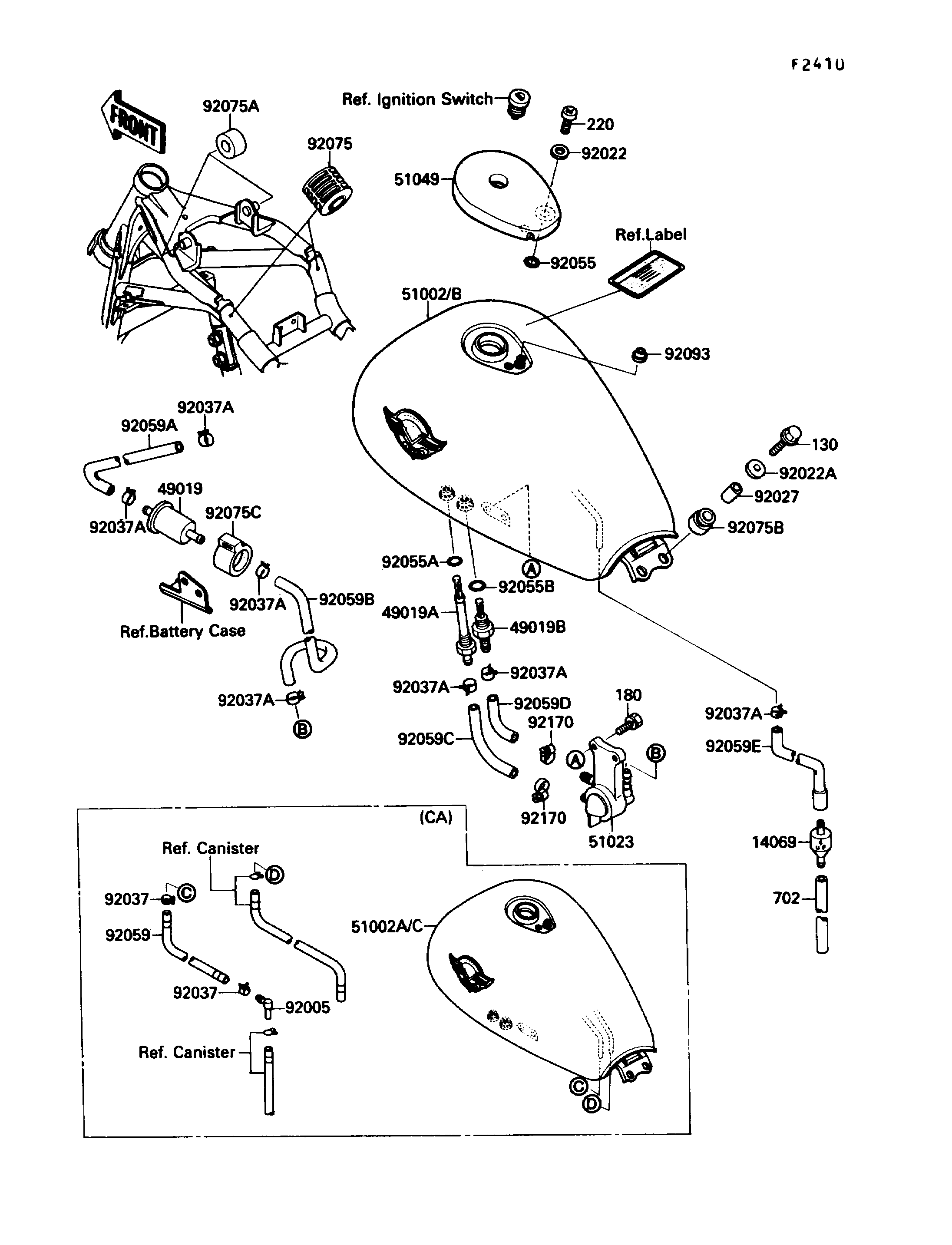

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BREATHER,FUEL TANK | 14069 | 14069-1004 | 1 | ||
| FILTER-FUEL | 49019 | 49019-1055 | 1 | ||
| FILTER-FUEL,"ON" | 49019A | 49019-1056 | 1 | ||
| FILTER-FUEL,"RES" | 49019B | 49019-1057 | 1 | ||
| TANK-COMP-FUEL,M.N.BLUE | 51002B | 51002-5337-C6 | 1 | ||
| TAP-ASSY,FUEL | 51023 | 51023-1136 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-1088 | 1 | ||
| WASHER,5.3X10X0.8 | 92022 | 92022-1038 | 2 | ||
| WASHER,6.5X20X1.6 | 92022A | 92022-125 | 2 | ||
| COLLAR,6.8X10X14.5 | 92027 | 92027-156 | 2 | ||
| CLAMP | 92037A | 92037-1462 | 7 | ||
| RING-O | 92055 | 92055-1023 | 2 | ||
| RING-O,ID=9.5 | 92055A | 92055-1386 | 1 | ||
| RING-O,11.5X1.5 | 92055B | 92055-1387 | 1 | ||
| TUBE | 92059A | 92059-1785 | 1 | ||
| TUBE | 92059B | 92059-1786 | 1 | ||
| TUBE,"ON" | 92059C | 92059-1818 | 1 | ||
| TUBE,"RES" | 92059D | 92059-1819 | 1 | ||
| TUBE | 92059E | 92059-1854 | 1 | ||
| DAMPER,FUEL TANK | 92075 | 92075-084 | 2 | ||
| DAMPER,FUEL TANK,FR | 92075A | 92075-1115 | 2 | ||
| DAMPER | 92075B | 92075-167 | 2 | ||
| DAMPER,FUEL FILTER | 92075C | 92075-1853 | 1 | ||
| SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | ||
| CLAMP,TUBE | 92170 | 92170-1038 | 2 | ||
| BOLT-FLANGED,6X25 | 130 | 130B0625 | 2 | ||
| BOLT-UPSET-WS | 180 | 180B0608 | 2 | ||
| SCREW-PAN-CROS | 220 | 220B0510 | 2 | ||
| TUBE-RUBBER,5X8X550 | 702 | 702A05550 | 1 |
| BREATHER,FUEL TANK | |
| REF # | 14069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-FUEL | |
| REF # | 49019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-FUEL,"ON" | |
| REF # | 49019A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-FUEL,"RES" | |
| REF # | 49019B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-COMP-FUEL,M.N.BLUE | |
| REF # | 51002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TAP-ASSY,FUEL | |
| REF # | 51023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-TANK,FUEL | |
| REF # | 51049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.3X10X0.8 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10X14.5 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,ID=9.5 | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,11.5X1.5 | |
| REF # | 92055B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92059B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,"ON" | |
| REF # | 92059C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,"RES" | |
| REF # | 92059D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 92059E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK,FR | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL FILTER | |
| REF # | 92075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL,FUEL TANK CAP | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS | |
| REF # | 180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE-RUBBER,5X8X550 | |
| REF # | 702 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
