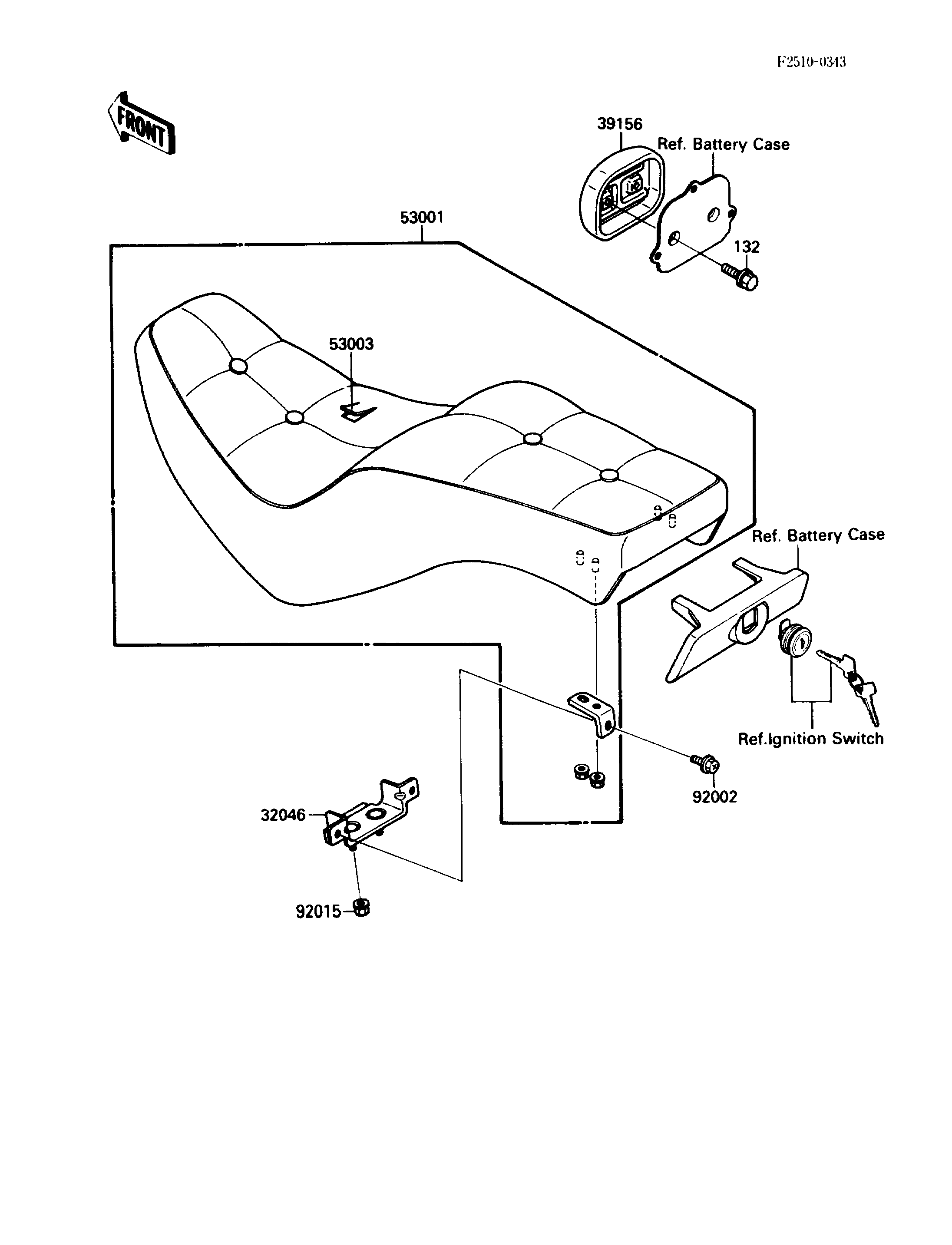

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-SEAT 32046 32046-1302 1
PAD,BACK REST 39156 39156-1077 1
SEAT-ASSY,DUAL 53001 53001-1517 1
LEATHER,SEAT 53003 53003-1194 1
BOLT,FLANGED,6X12 92002 92002-1350 2
NUT,FLANGED,6MM 92015 92015-1386 2
BOLT-FLANGED-SMALL,6X14 132 132E0614 2
