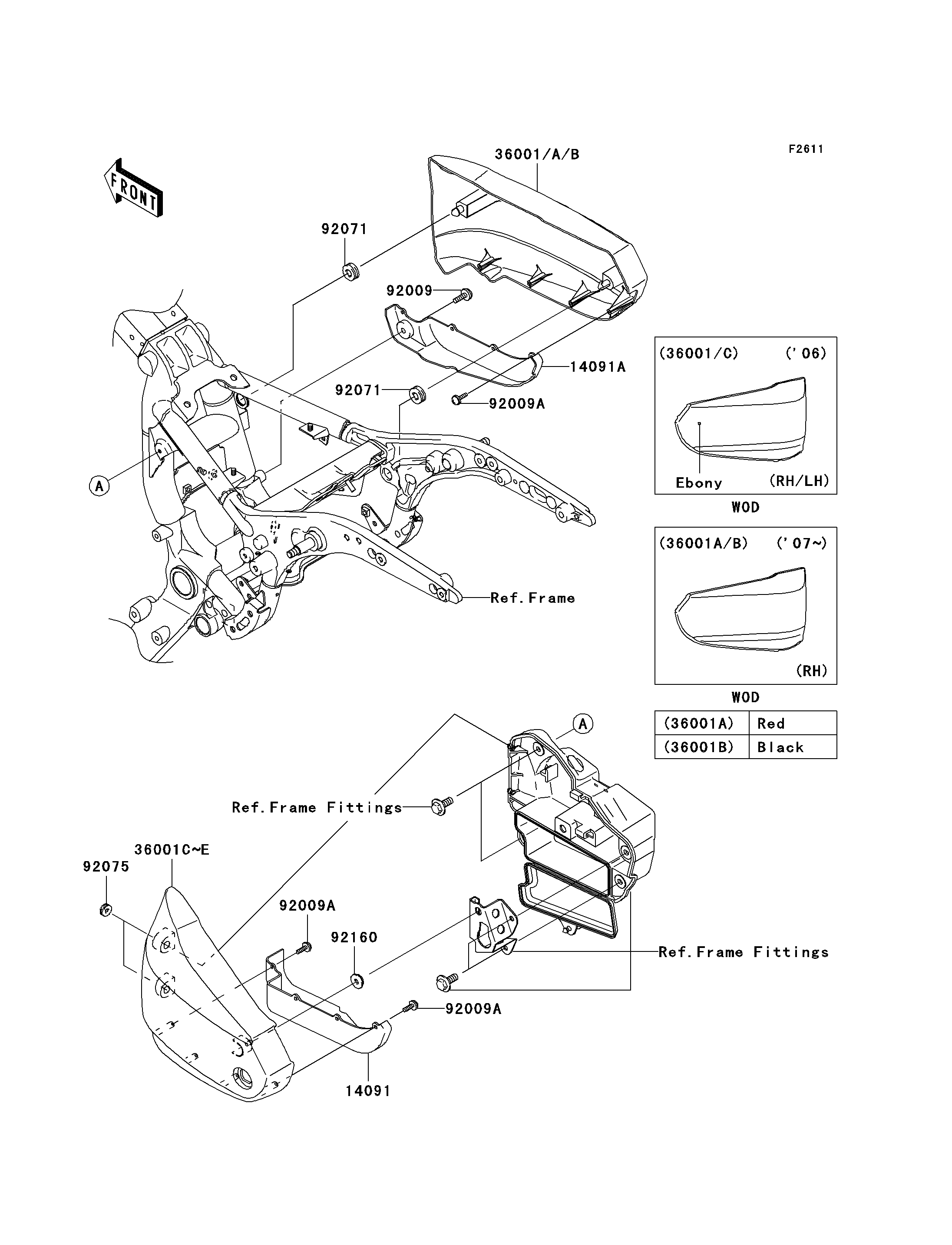

14091
14091A
36001A
36001D
92009
92009A
92009A
92009A
92071
92071
92075
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SIDE COVER,LH 14091 14091-1343 1
COVER,SIDE COVER,RH 14091A 14091-1344 1
COVER-SIDE,RH,C.C.RED 36001A 36001-0057-L1 1
COVER-SIDE,LH,C.C.RED 36001D 36001-1684-L1 1
SCREW,6X14 92009 92009-1662 1
SCREW,TAPPING,4X14 92009A 92009-1792 8
GROMMET 92071 92071-1131 2
DAMPER 92075 92075-1629 2
DAMPER 92160 92160-1944 1
