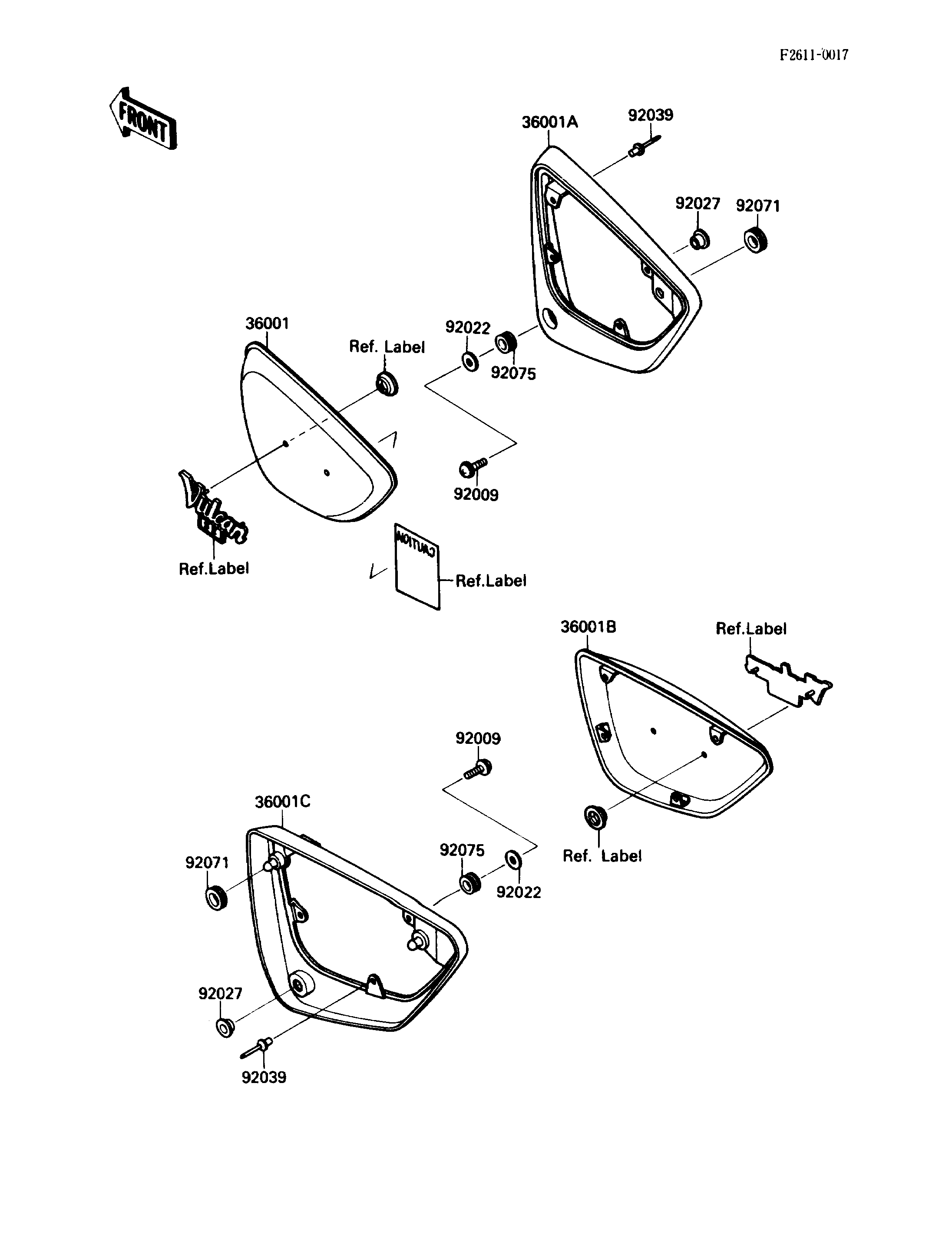

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,CR PLATED 36001 36001-1366 1
COVER-SIDE,BASE,LH,F.BLACK 36001A 36001-1367-21 1
COVER-SIDE,RH,CR PLATED 36001B 36001-1368 1
COVER-SIDE,BASE,RH,F.BLACK 36001C 36001-1369-21 1
SCREW,6X18,BLACK 92009 92009-1306 2
WASHER,6.5X20X1.6,BLACK 92022 92022-1619 2
COLLAR,L=9.1,WHITE 92027 92027-1795 2
RIVET,BLIND,4.0X9.2 92039 92039-1163 8
GROMMET 92071 92071-1164 4
DAMPER 92075 92075-1634 2
