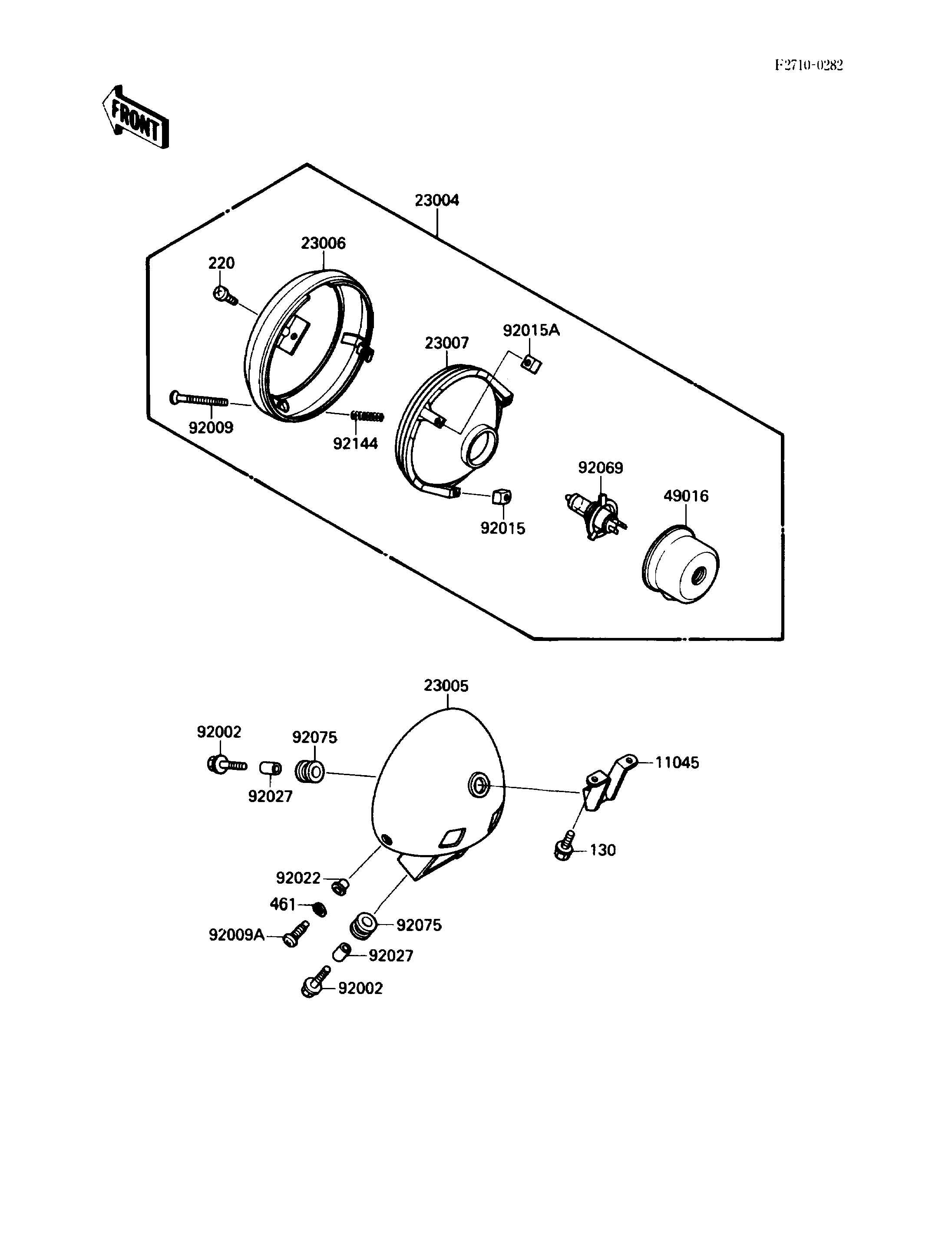

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HEAD LAMP 11045 11045-1598 1
LAMP-HEAD 23004 23004-1221 1
BODY-COMP-HEAD LAMP 23005 23005-1083 1
RIM-LAMP 23006 23006-1059 1
LENS-COMP,HEAD LAMP 23007 23007-1169 1
COVER-SEAL,HEAD LAMP SOCKET 49016 49016-1129 1
BOLT,6X25 92002 92002-1135 3
SCREW,FOCUS ADJUST,4X65 92009 92009-1472 2
SCREW,5MM 92009A 92011-024 2
NUT,4MM,FOCUS ADJUST 92015 23020-018 2
NUT,5MM 92015A 92015-1157 1
WASHER 92022 23021-010 2
COLLAR,6.8X10X14.5 92027 92027-156 3
BULB,12V 60/55W,H4 92069 92069-1002 1
DAMPER 92075 92075-1035 3
SPRING,FOCUS ADJUST 92144 92144-1149 2
BOLT-FLANGED 130 130D0612 2
SCREW-PAN-CROS,5X12 220 220D0512 1
WASHER-SPRING,5MM 461 461F0500 2
