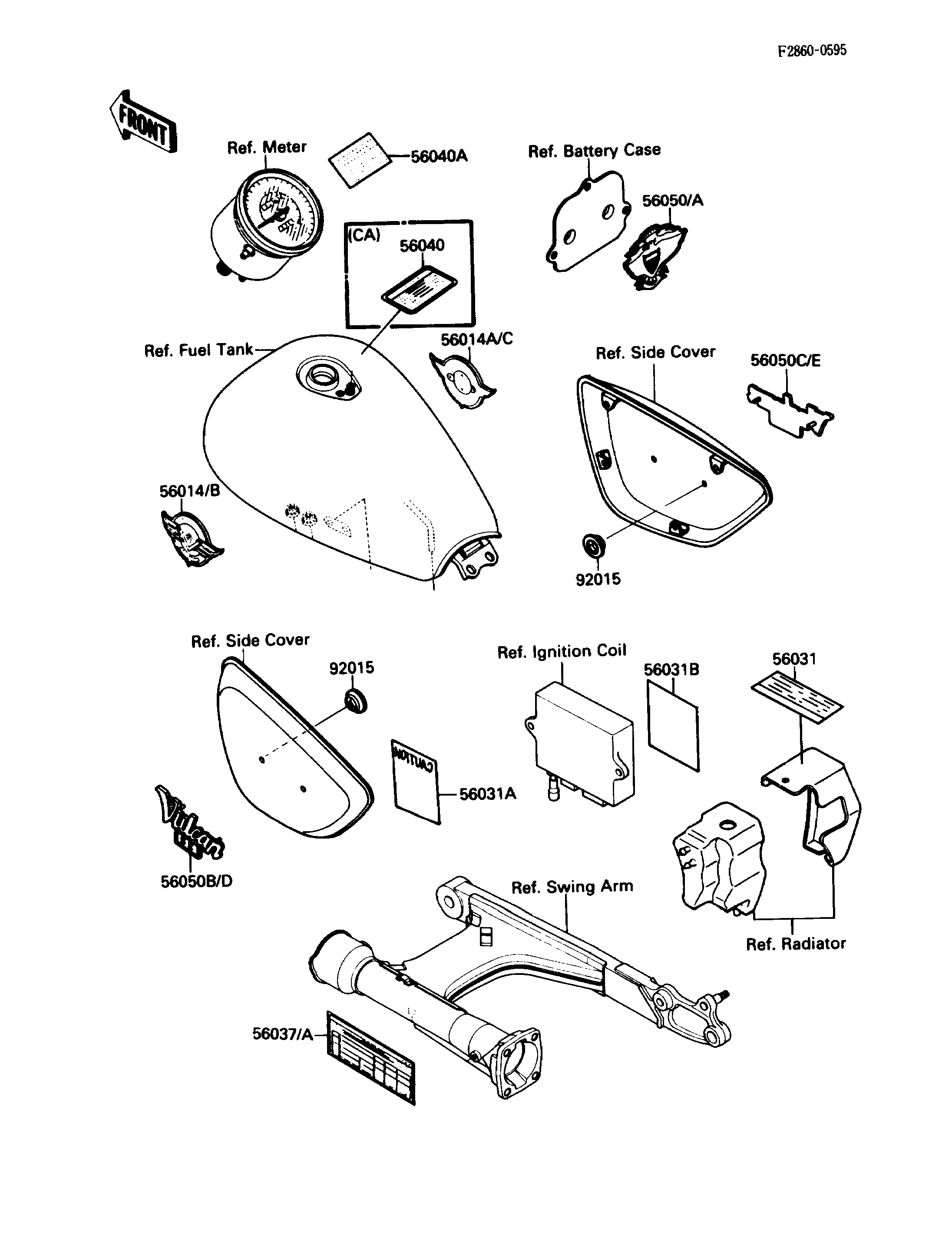

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,LH,FOR BLUE 56014B 56014-1187 1
EMBLEM,FUEL TANK,RH,FOR BLUE 56014C 56014-1188 1
LABEL-MANUAL,OIL & OIL FILTER 56031 56031-1558 1
LABEL-MANUAL,BATTERY VENT 56031A 56031-1560 1
LABEL-MANUAL,DAILY SAFETY 56031B 56031-1561 1
LABEL-SPECIFICATION,TIRE&LOAD 56037A 56037-1380 1
MARK,BACK REST COVER,BLUE&EBON 56050A 56050-1009 1
MARK,SIDE COVER,LH,FOR BLUE 56050D 56050-1013 1
MARK,SIDE COVER,RH,FOR BLUE 56050E 56050-1014 1
NUT,PUSH,3MM 92015 92018-005 4
