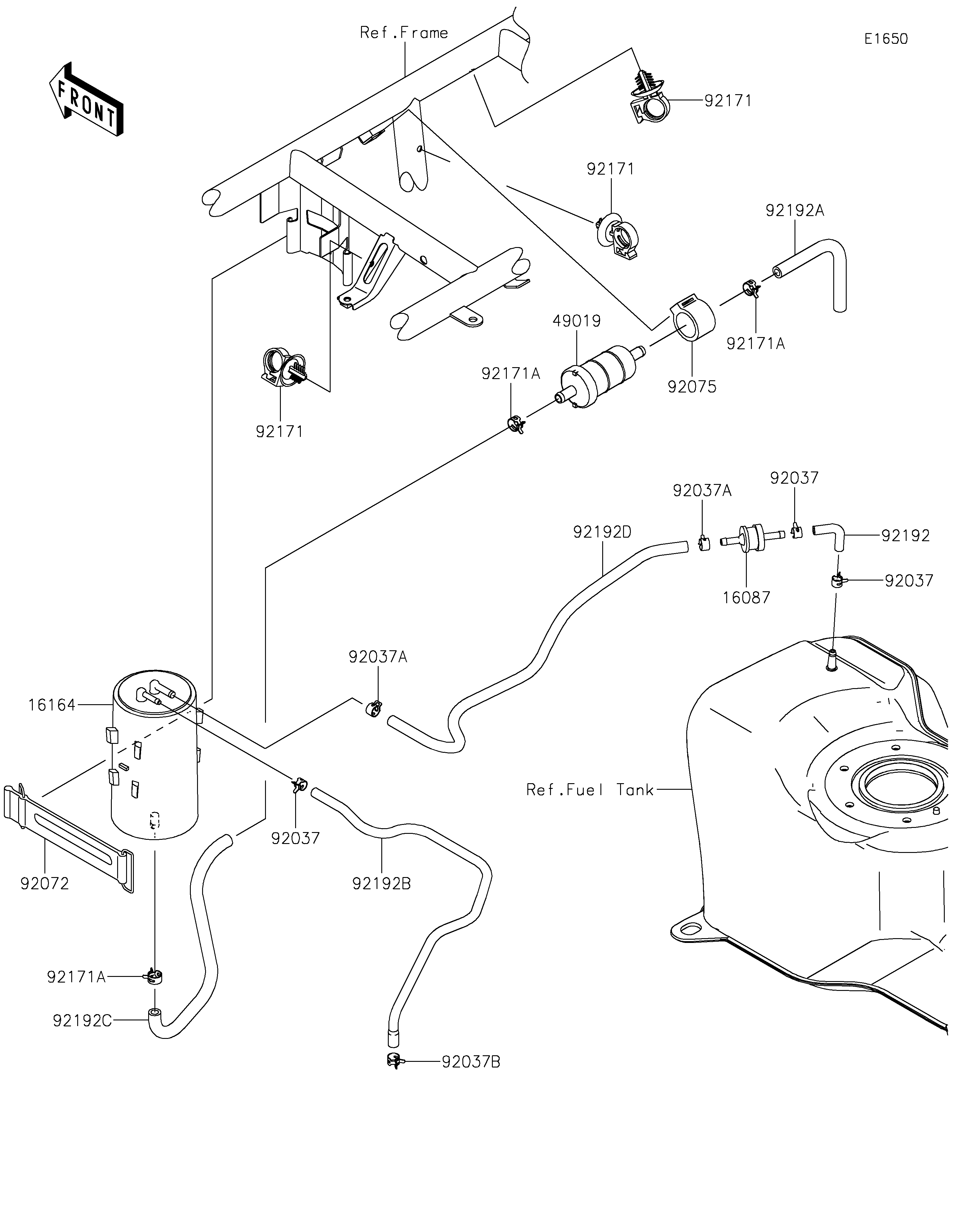

2021 MULE SX™ - Fuel Evaporative System
16087
16164
49019
92037
92037
92037
92037A
92037A
92037B
92072
92075
92171
92171
92171
92171A
92171A
92171A
92192
92192A
92192B
92192C
92192D
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| VALVE-CHECK | 16087 | 16087-0008 | 1 | ||
| CANISTER | 16164 | 16164-0018 | 1 | ||
| FILTER-FUEL | 49019 | 49019-0032 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-1461 | 3 | ||
| CLAMP,TUBE | 92037A | 92037-1505 | 2 | ||
| CLAMP | 92037B | 92037-2113 | 1 | ||
| BAND,L=168 | 92072 | 92072-1306 | 1 | ||
| DAMPER,FUEL FILTER | 92075 | 92075-1853 | 1 | ||
| CLAMP | 92171 | 92171-0453 | 3 | ||
| CLAMP | 92171A | 92171-0515 | 3 | ||
| TUBE,FUEL TANK-CHECK VALVE | 92192 | 92192-0067 | 1 | ||
| TUBE,FILTER-AIR | 92192A | 92192-0609 | 1 | ||
| TUBE,CANISTER-DUCT | 92192B | 92192-1027 | 1 | ||
| TUBE,CANISTER-FILTER | 92192C | 92192-1639 | 1 | ||
| TUBE,VALVE-CANISTER | 92192D | 92192-1641 | 1 |
