11053
14093
92009
92009
115
317

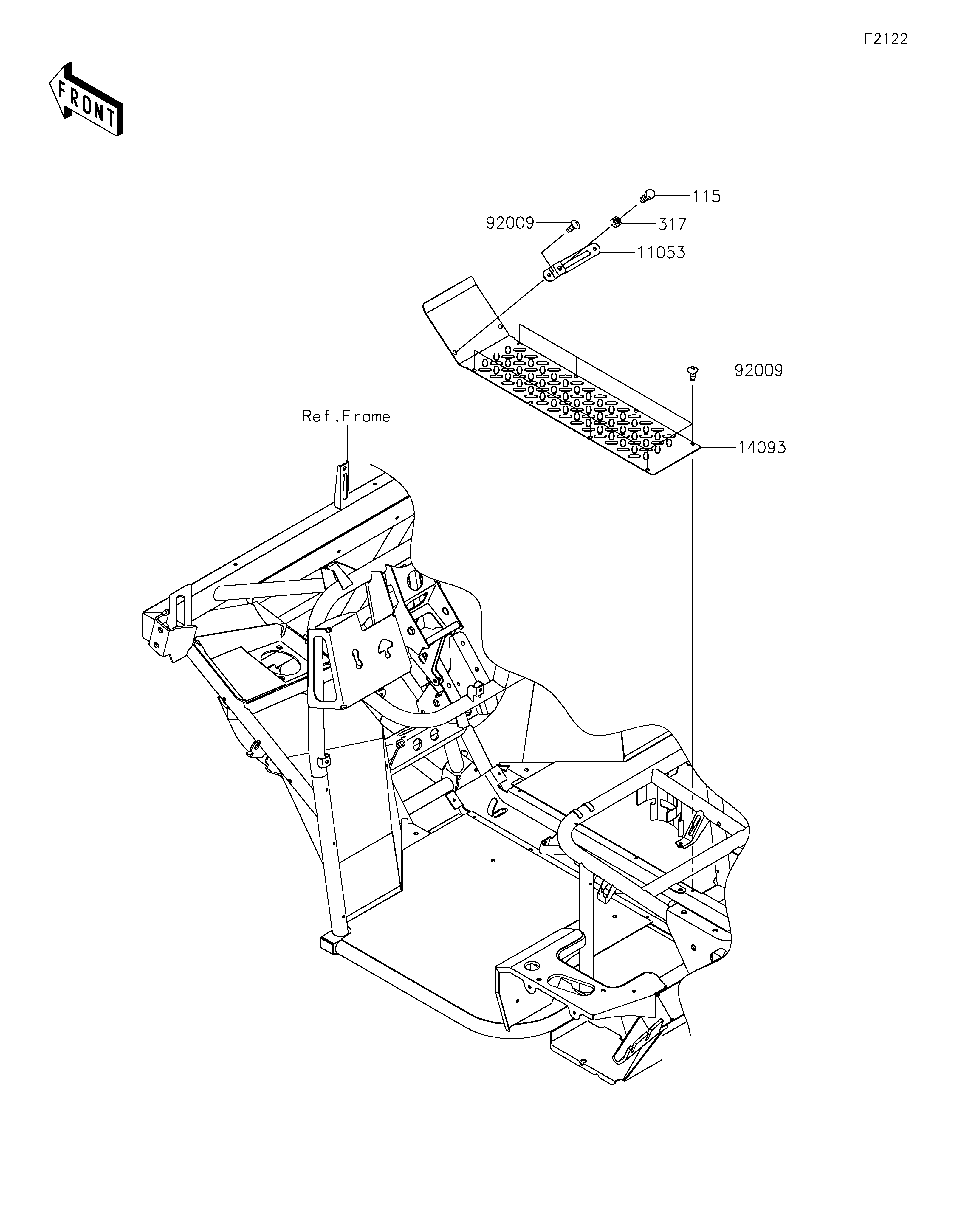

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE LEVER 11053 11053-1670 1
COVER,FLOOR,CNT 14093 14093-0469 1
SCREW,TAPPING,6X16 92009 92009-1166 9
BOLT-SMALL-UPSET,8X20 115 115BA0820 1
NUT-HEX-SMALL,8MM 317 317BA0800 1
