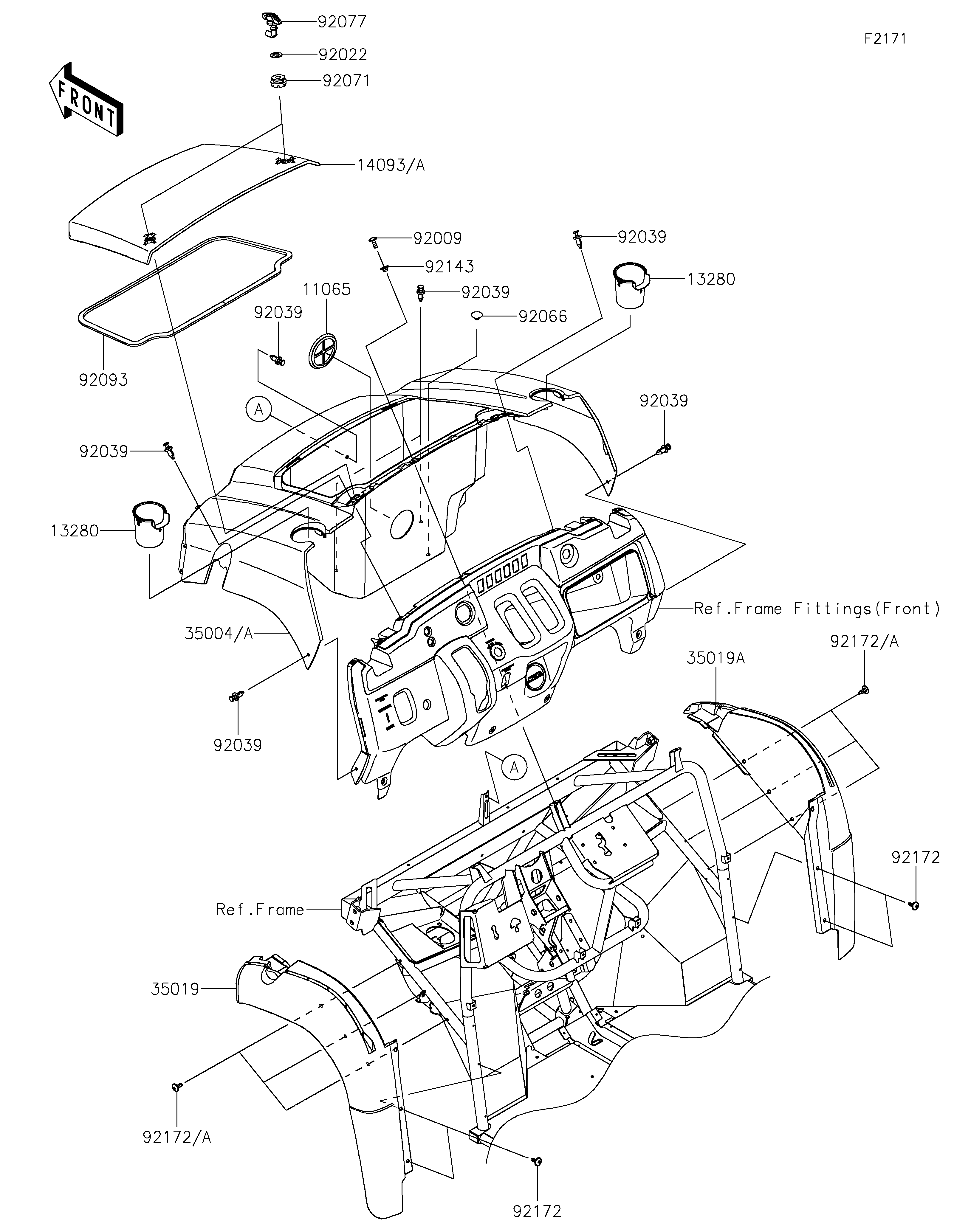

Parts Diagrams |
11065
13280
13280
14093
14093A
35004
35004A
35019
35019A
92009
92022
92039
92039
92039
92039
92039
92039
92066
92071
92077
92093
92143
92172
92172
92172
92172
92172A
92172A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,F.BLACK | 11065 | 11065-1053-6Z | 1 | ||
HOLDER | 13280 | 13280-0879 | 2 | ||
COVER,HOOD,D.R.RED | 14093 | 14093-0390-16L | 1 | ||
COVER,HOOD,T.GREEN | 14093A | 14093-0390-42S | 1 | ||
FENDER-FRONT,D.R.RED | 35004 | 35004-0355-16L | 1 | ||
FENDER-FRONT,T.GREEN | 35004A | 35004-0355-42S | 1 | ||
FLAP,LH | 35019 | 35019-0608 | 1 | ||
FLAP,RH | 35019A | 35019-0609 | 1 | ||
SCREW,6X16 | 92009 | 92009-1621 | 1 | ||
WASHER,12.5X22X1.2 | 92022 | 92022-072 | 2 | ||
RIVET | 92039 | 92039-0776 | 7 | ||
PLUG | 92066 | 92066-1485 | 1 | ||
GROMMET | 92071 | 92071-0746 | 2 | ||
KNOB | 92077 | 92077-0033 | 2 | ||
SEAL,6X15X1755 | 92093 | 92093-0688 | 1 | ||
COLLAR | 92143 | 92143-1057 | 1 | ||
SCREW,6X16 | 92172 | 92172-0711 | 4 | ||
SCREW,6X16 | 92172A | 92172-0826 | 6 |
