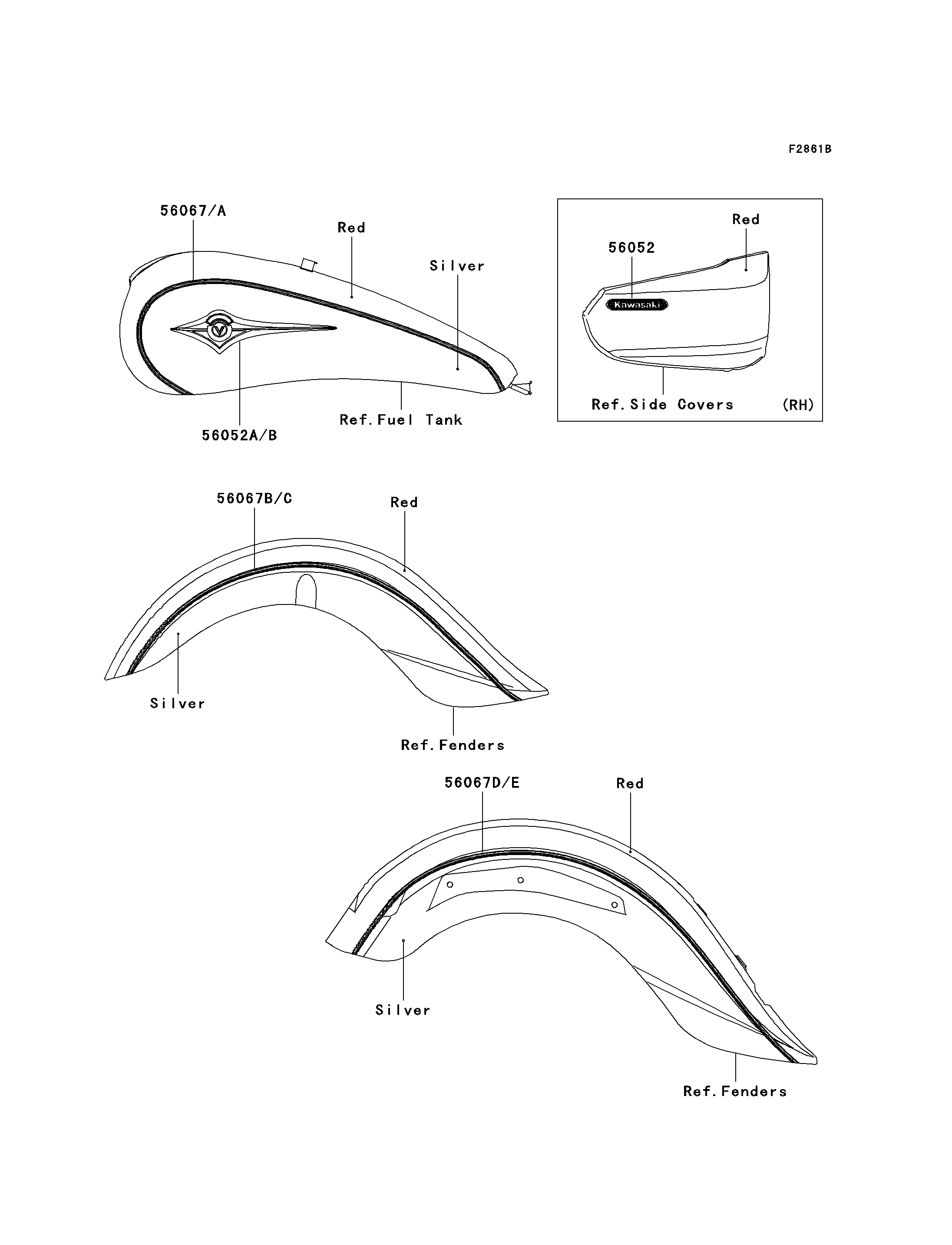

2007 Vulcan 1600 Classic - Decals(Red/Silver)(A7F)(CN)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SIDE COVER,RH,KAWASAKI 56052 56052-0812 1 CN
MARK,FUEL TANK,LH 56052A 56052-1883 1 CN
MARK,FUEL TANK,RH 56052B 56052-1884 1 CN
PATTERN,FUEL TANK,LH 56067 56067-1467 1 CN
PATTERN,FUEL TANK,RH 56067A 56067-1468 1 CN
PATTERN,FR FENDER,LH 56067B 56067-1469 1 CN
PATTERN,FR FENDER,RH 56067C 56067-1470 1 CN
PATTERN,RR FENDER,LH 56067D 56067-1471 1 CN
PATTERN,RR FENDER,RH 56067E 56067-1472 1 CN
