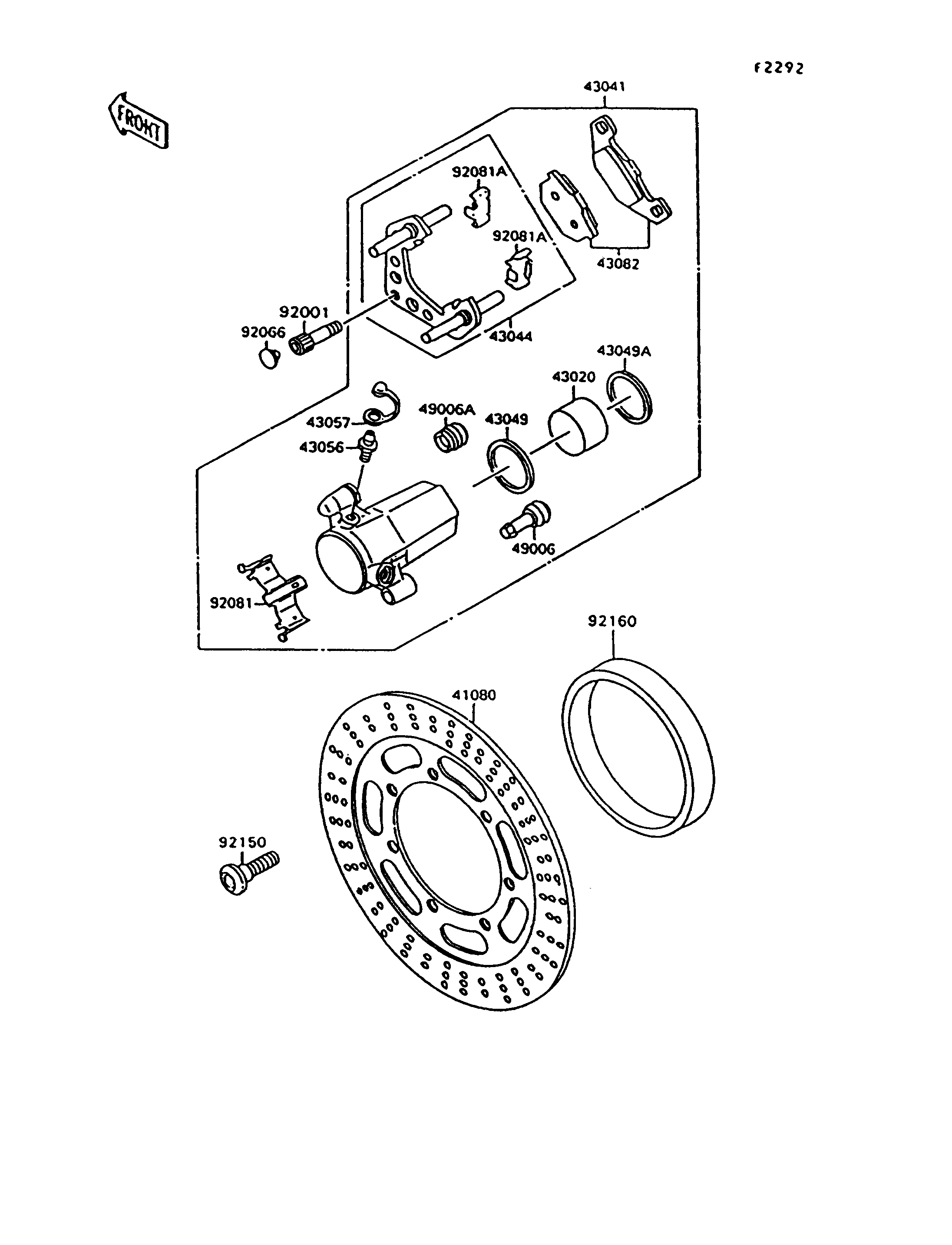

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
41080
43020
43041
43044
43049
43049A
43056
43057
43082
49006
49006A
92001
92066
92081
92081A
92081A
92150
92160
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DISC,FR,SILVER NO.1 | 41080 | 41080-1401-CM | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1066 | 1 | ||
| CALIPER-ASSY,FR,LH,SILVER | 43041 | 43041-1565-GN | 1 | ||
| HOLDER-COMP-CALIPER,FR,LH | 43044 | 43044-1102 | 1 | ||
| RING,PISTON SEAL | 43049 | 43049-002 | 1 | ||
| PACKING,PISTON | 43049A | 43049-1028 | 1 | ||
| BREATHER-BRAKE | 43056 | 43056-1054 | 1 | ||
| CAP-BREATHER | 43057 | 43057-003 | 1 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-1167 | 1 | ||
| BOOT,CALIPER | 49006 | 49006-1094 | 1 | ||
| BOOT,CALIPER | 49006A | 49006-1095 | 1 | ||
| BOLT,SOCKET,10X33 | 92001 | 92001-1901 | 2 | ||
| PLUG | 92066 | 92066-1285 | 2 | ||
| SPRING,PAD | 92081 | 92081-1525 | 1 | ||
| SPRING,PAD STOPPER | 92081A | 92081-1661 | 2 | ||
| BOLT,SOCKET,8X30 | 92150 | 92150-1771 | 7 | ||
| DAMPER,DISC PLATE | 92160 | 92160-1504 | 1 |
