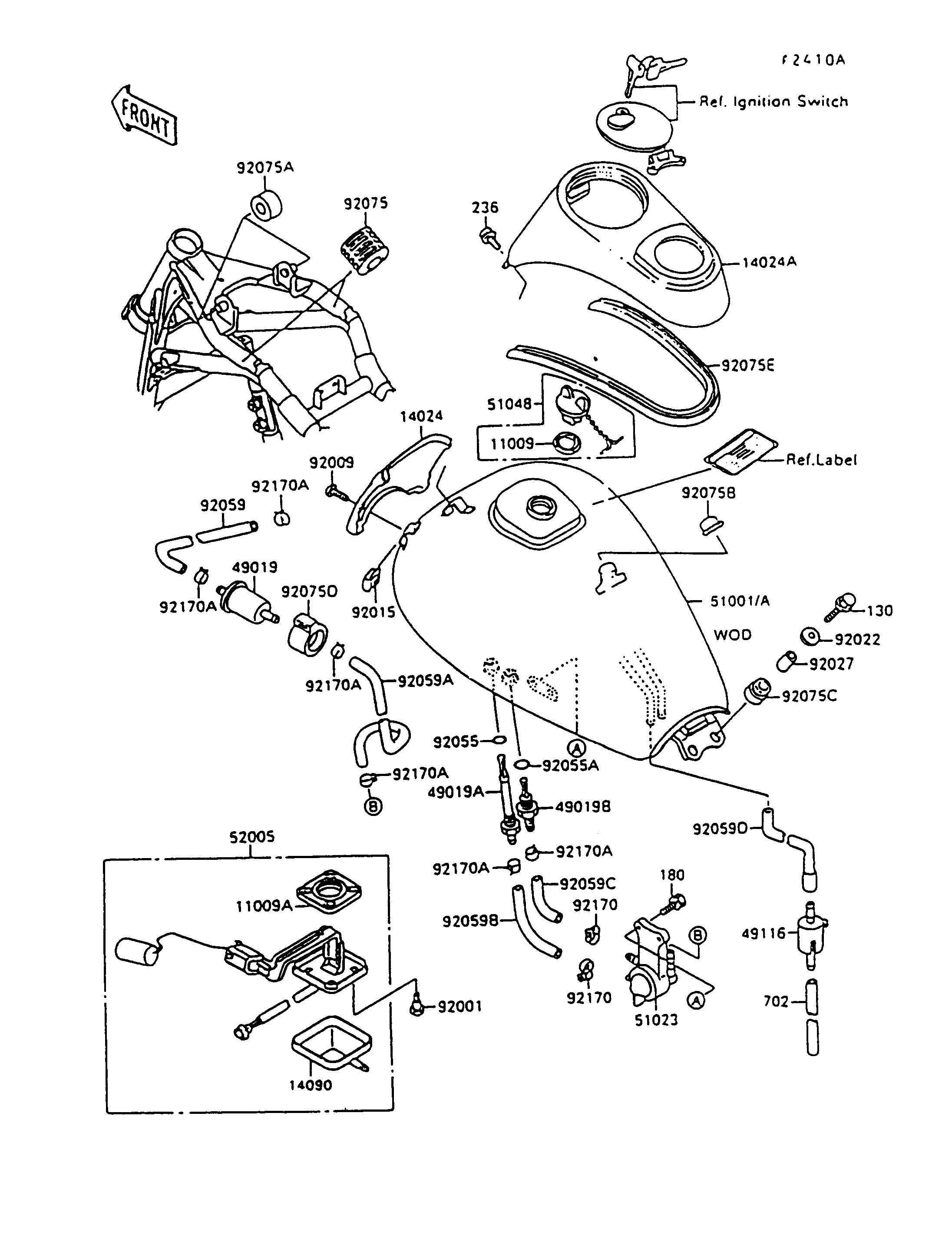

1997 Vulcan 1500 L - Fuel Tank(VN1500-C4)
11009
11009
11009
11009A
11009A
11009A
14024
14024
14024
14024A
14024A
14024A
14090
14090
14090
49019
49019
49019
49019A
49019A
49019A
49019B
49019B
49019B
49116
49116
49116
51023
51023
51023
51048
51048
51048
52005
52005
52005
92001
92001
92001
92009
92009
92009
92015
92015
92015
92022
92022
92022
92027
92027
92027
92055
92055
92055
92055A
92055A
92055A
92059
92059
92059
92059A
92059A
92059A
92059B
92059B
92059B
92059C
92059C
92059C
92059D
92059D
92059D
92075
92075
92075
92075A
92075A
92075A
92075B
92075B
92075B
92075C
92075C
92075C
92075D
92075D
92075D
92075E
92075E
92075E
92170
92170
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
130
130
130
180
180
180
236
236
236
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,TANK CAP | 11009 | 11009-1326 | 1 | ||
| GASKET,FUEL GAUGE | 11009A | 11009-1656 | 1 | ||
| COVER,FUEL TANK,FR | 14024 | 14024-1453 | 1 | ||
| COVER,FUEL TANK,UPP | 14024A | 14024-1614 | 1 | ||
| COVER,FUEL GAUGE | 14090 | 14090-1624 | 1 | ||
| FILTER-FUEL | 49019 | 49019-1055 | 1 | ||
| FILTER-FUEL,"ON" | 49019A | 49019-1056 | 1 | ||
| FILTER-FUEL,"RES" | 49019B | 49019-1057 | 1 | ||
| VALVE-ASSY,BREATHER | 49116 | 49116-1063 | 1 | ||
| TAP-ASSY,FUEL | 51023 | 51023-1136 | 1 | ||
| CAP-ASSY-TANK,FUEL | 51048 | 51048-1094 | 1 | ||
| GAUGE,FUEL | 52005 | 52005-1084 | 1 | ||
| BOLT,FUEL GAUGE | 92001 | 92001-1705 | 4 | ||
| SCREW,5X10 | 92009 | 92009-1651 | 2 | ||
| NUT,CLAMP,5MM | 92015 | 92015-1677 | 2 | ||
| WASHER,6.5X20X1.6 | 92022 | 92022-125 | 2 | ||
| COLLAR,6.8X10X14.5 | 92027 | 92027-156 | 2 | ||
| RING-O,ID=9.5 | 92055 | 92055-1386 | 1 | ||
| RING-O,11.5X1.5 | 92055A | 92055-1387 | 1 | ||
| TUBE | 92059 | 92059-1785 | 1 | ||
| TUBE | 92059A | 92059-1786 | 1 | ||
| TUBE,"ON" | 92059B | 92059-1818 | 1 | ||
| TUBE,"RES" | 92059C | 92059-1819 | 1 | ||
| TUBE | 92059D | 92059-1854 | 1 | ||
| DAMPER,FUEL TANK | 92075 | 92075-084 | 2 | ||
| DAMPER,FUEL TANK,FR | 92075A | 92075-1115 | 2 | ||
| DAMPER | 92075B | 92075-1445 | 1 | ||
| DAMPER | 92075C | 92075-167 | 2 | ||
| DAMPER,FUEL FILTER | 92075D | 92075-1853 | 1 | ||
| DAMPER,FUEL TANK COVER | 92075E | 92075-1933 | 1 | ||
| CLAMP | 92170 | 92170-1278 | 2 | ||
| CLAMP | 92170A | 92170-2043 | 6 | ||
| BOLT-FLANGED,6X25 | 130 | 130B0625 | 2 | ||
| BOLT-UPSET-WS | 180 | 180B0608 | 2 | ||
| SCREW-PAN-WSP-CROS,5X10 | 236 | 236B0510 | 2 | ||
| TANK-COMP-FUEL,BLACK MICA | 51001 | 51001-1426-20 | 1 | ||
| TANK-COMP-FUEL,BLACK MICA | 51001A | 51001-1462-20 | 1 | ||
| TUBE-RUBBER,5X8X550 | 702 | 702A05550 | 1 |
