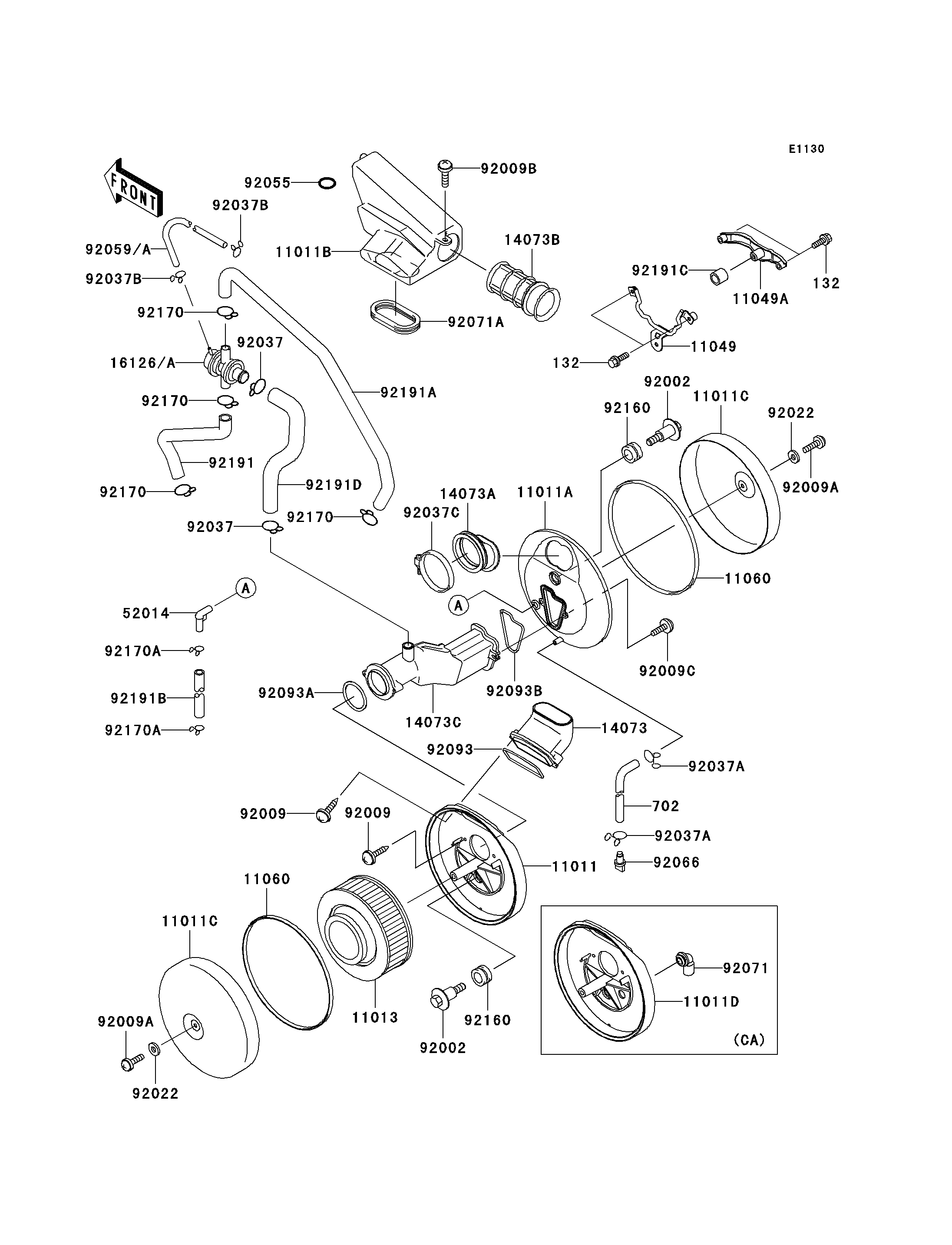

1996 Vulcan 1500 Classic - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11011A
11011A
11011B
11011B
11011C
11011C
11011C
11011C
11013
11013
11049
11049
11049A
11049A
11060
11060
11060
11060
14073
14073
14073A
14073A
14073B
14073B
14073C
14073C
16126
16126
52014
52014
92002
92002
92002
92002
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92009C
92009C
92022
92022
92022
92022
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037B
92037B
92037B
92037B
92037C
92037C
92055
92055
92066
92066
92071A
92071A
92093
92093
92093A
92093A
92093B
92093B
132
132
132
132
702
702
92160
92160
92160
92160
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92191
92191
92191A
92191A
92191B
92191B
92191C
92191C
92191D
92191D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER,RH,INSIDE 11011A 11011-1487 1
CASE-AIR FILTER,CENTER 11011B 11011-1488 1
CASE-AIR FILTER,OUTSIDE 11011C 11011-1489 2
ELEMENT-AIR FILTER 11013 11013-1248 1
BRACKET,AIR FILTER,LH 11049 11049-1538 1
BRACKET,AIR FILTER,RH 11049A 11049-1539 1
GASKET,AIR FILTER CASE 11060 11060-1736 2
DUCT,AIR FILTER,LH 14073 14073-1658 1
DUCT,AIR FILTER,RH 14073A 14073-1659 1
DUCT 14073B 14073-1660 1
DUCT 14073C 14073-1690 1
VALVE,AIR SWITCH 16126 16126-1309 1
ELBOW 52014 52014-1083 1
BOLT,HEAD COVER 92002 92002-1595 2
SCREW,TAPPING,5X16 92009 92009-1264 4
SCREW,6X14,WHITE 92009A 92009-1287 2
SCREW,6X14 92009B 92009-1288 1
SCREW,5X16 92009C 92009-1571 2
WASHER,6.5X20X1.6,WHITE 92022 92022-193 2
CLAMP,TUBE 92037 92037-1076 2
CLAMP,TUBE 92037A 92037-147 2
CLAMP 92037B 92037-1712 2
CLAMP 92037C 92037-1859 1
RING-O 92055 92055-1282 1
PLUG,DRAIN 92066 92066-1211 1
GROMMET 92071A 92071-1233 1
SEAL,AIR FILTER CASE 92093 92093-1408 1
SEAL,DUCT,LH 92093A 92093-1409 1
SEAL,DUCT,RH 92093B 92093-1410 1
BOLT-FLANGED-SMALL 132 132J0625 4
TUBE-RUBBER 702 702A07260 1
DAMPER 92160 92160-1594 2
CLAMP,TUBE 92170 92170-1445 4
CLAMP 92170A 92170-1695 2
TUBE,HEAD,FR-AIR SWITCH 92191 92191-1050 1
TUBE,HEAD,RR-AIR SWITCH 92191A 92191-1051 1
TUBE,BREATHER 92191B 92191-1054 1
TUBE,15.5X22.5X20 92191C 92191-1089 1
TUBE,AIR SWITCH-DUCT 92191D 92191-1266 1
CASE-AIR FILTER,LH,INSIDE 11011 11011-1486 1 CNUS
CASE-AIR FILTER,LH,INSIDE 11011D 11011-1491 1 CA
TUBE,4X9X290 92059 92059-1133 1 CNUS
TUBE,4X9X260 92059A 92059-1712 1 CA
GROMMET,AIR FILTER 92071 92071-1114 1 CA
