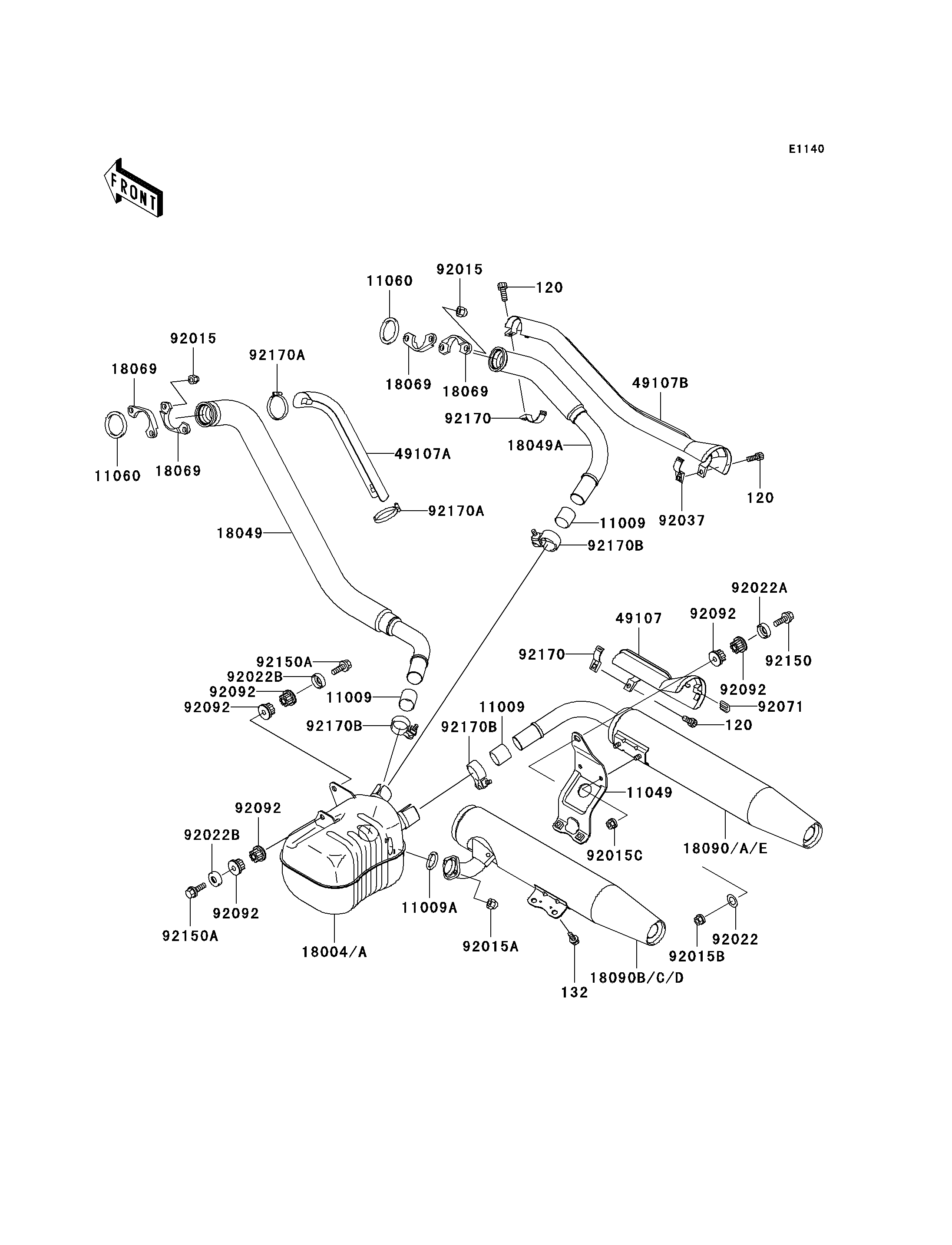

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11009
11009
11009
11009
11009
11009
11009A
11009A
11049
11049
11060
11060
11060
11060
18049
18049
18049A
18049A
18069
18069
18069
18069
18069
18069
18069
18069
49107
49107
49107A
49107A
49107B
49107B
92015
92015
92015
92015
92015A
92015A
92015B
92015B
92015C
92015C
92022
92022
92022A
92022A
92022B
92022B
92022B
92022B
92037
92037
92071
92071
92092
92092
92092
92092
92092
92092
92092
92092
92092
92092
92092
92092
92150
92150
92150A
92150A
92150A
92150A
92170
92170
92170
92170
92170A
92170A
92170A
92170A
120
120
120
120
120
120
132
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,MUFFLER CONNECTING | 11009 | 11009-1865 | 3 | ||
| GASKET,EXHAUST HOLDER | 11009A | 11009-1894 | 1 | ||
| BRACKET,MUFFLER | 11049 | 11049-1540 | 1 | ||
| GASKET,EXHAUST PIPE | 11060 | 11060-1119 | 2 | ||
| PIPE-EXHAUST,FR | 18049 | 18049-1887 | 1 | ||
| PIPE-EXHAUST,RR | 18049A | 18049-1888 | 1 | ||
| HOLDER-EXHAUST PIPE | 18069 | 18069-1138 | 4 | ||
| COVER-EXHAUST PIPE,FR | 49107 | 49107-1103 | 1 | ||
| COVER-EXHAUST PIPE | 49107A | 49107-1115 | 1 | ||
| COVER-EXHAUST PIPE,RR | 49107B | 49107-1156 | 1 | ||
| NUT,CAP,8MM | 92015 | 92015-1371 | 4 | ||
| NUT,8MM | 92015A | 92015-1402 | 2 | ||
| NUT,10MM | 92015B | 92015-1649 | 1 | ||
| NUT,8MM | 92015C | 92015-1936 | 2 | ||
| WASHER,10.5X26X2.3 | 92022 | 92022-044 | 1 | ||
| WASHER,CUP TYPE | 92022A | 92022-1270 | 1 | ||
| WASHER,10.5X30X2.3,BLACK | 92022B | 92022-1302 | 2 | ||
| CLAMP,EXHAUST PIPE COVER | 92037 | 92037-1613 | 1 | ||
| GROMMET | 92071 | 92071-1226 | 2 | ||
| BUSHING-RUBBER,MUFFLER | 92092 | 92092-1013 | 6 | ||
| BOLT,FLANGED,10X57 | 92150 | 92150-1227 | 1 | ||
| BOLT,10X55 | 92150A | 92150-1749 | 2 | ||
| CLAMP | 92170 | 92170-1645 | 2 | ||
| CLAMP | 92170A | 92170-1710 | 2 | ||
| BOLT-SOCKET | 120 | 120Z0620 | 3 | ||
| BOLT-FLANGED-SMALL | 132 | 132E0814 | 2 | ||
| CHAMBER-PREMUFFLER | 18004 | 18004-1073 | 1 | CAUS | |
| CHAMBER-PREMUFFLER | 18004A | 18004-1080 | 1 | CN | |
| BODY-COMP-MUFFLER,RR,UPP | 18090 | 18090-1527 | 1 | CAUS | |
| BODY-COMP-MUFFLER,RR,UPP | 18090A | 18090-1532 | 1 | CN | |
| BODY-COMP-MUFFLER,FR,LWR | 18090B | 18090-1561 | 1 | CAUS | |
| BODY-COMP-MUFFLER,FR,LWR | 18090C | 18090-1562 | 1 | CN | |
| CLAMP | 92170B | 92170-1928 | 3 | CAUS | |
| CLAMP | 92170B | 92170-1928 | 3 | CN |
| GASKET,MUFFLER CONNECTING | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST HOLDER | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,MUFFLER | |
| REF # | 11049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST,FR | |
| REF # | 18049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST,RR | |
| REF # | 18049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-EXHAUST PIPE | |
| REF # | 18069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,FR | |
| REF # | 49107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE | |
| REF # | 49107A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE,RR | |
| REF # | 49107B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X26X2.3 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,CUP TYPE | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X30X2.3,BLACK | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,EXHAUST PIPE COVER | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER,MUFFLER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X57 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X55 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CHAMBER-PREMUFFLER | |
| REF # | 18004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| CHAMBER-PREMUFFLER | |
| REF # | 18004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BODY-COMP-MUFFLER,RR,UPP | |
| REF # | 18090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| BODY-COMP-MUFFLER,RR,UPP | |
| REF # | 18090A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| BODY-COMP-MUFFLER,FR,LWR | |
| REF # | 18090B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| BODY-COMP-MUFFLER,FR,LWR | |
| REF # | 18090C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| CLAMP | |
| REF # | 92170B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | CAUS |
| REMARKS | |
| CLAMP | |
| REF # | 92170B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | CN |
| REMARKS | |
