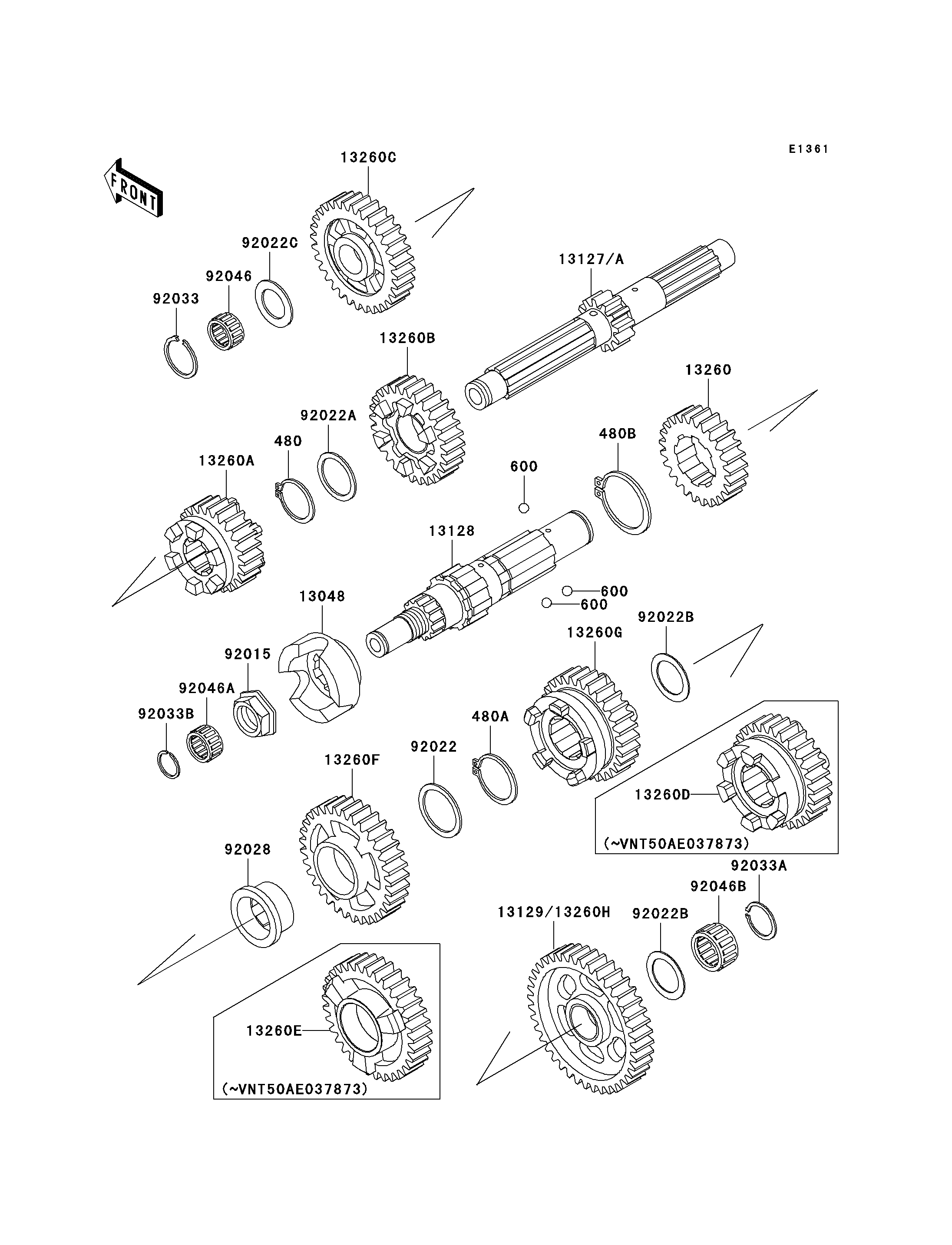

1997 Vulcan 1500 Classic - Transmission

DOWNLOAD PDF
SELECT A NEW PART
480
480A
480B
600
600
600
13048
13127A
13128
13260
13260A
13260B
13260C
13260F
13260G
92015
92022
92022A
92022B
92022B
92022C
92028
92033
92033A
92033B
92046
92046A
92046B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,28MM 480 480J2800 1
CIRCLIP-TYPE-C,32MM 480A 480J3200 1
CIRCLIP 480B 480J4000 1
BALL-STEEL,5/32" 600 600A0500 3
CAM-DAMPER 13048 13048-1082 1
SHAFT-TRANSMISSION INPUT,17T 13127A 13127-1259 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1144 1
GEAR,OUTPUT 4TH,25T 13260 13260-1584 1
GEAR,INPUT 2ND,24T 13260A 13260-1586 1
GEAR,INPUT 3RD,28T 13260B 13260-1587 1
GEAR,INPUT 4TH,32T 13260C 13260-1588 1
GEAR,OUTPUT 2ND,33T 13260F 13260-1652 1 ( VNT50AE037874 - )
GEAR,OUTPUT 3RD,29T 13260G 13260-1653 1 ( VNT50AE037874 - )
NUT,20MM 92015 92015-1610 1
WASHER,32X40X1.6 92022 92022-1693 1
WASHER,INPUT,3RD,LH 92022A 92022-1854 1
WASHER,OUTPUT,LOW 92022B 92022-1855 2
WASHER,22.3X35X1.6 92022C 92022-212 1
BUSHING,OUTPUT,2ND 92028 92028-1478 1
RING-SNAP,20X25.5X1.2 92033 92033-025 1
RING-SNAP,25MM 92033A 92033-1172 1
RING-SNAP 92033B 92033-1208 1
BEARING-NEEDLE,FWF-223014 92046 92046-031 1
BEARING-NEEDLE,K182420V1 92046A 92046-1154 1
BEARING-NEEDLE,RS25/18 92046B 92046-1166 1
