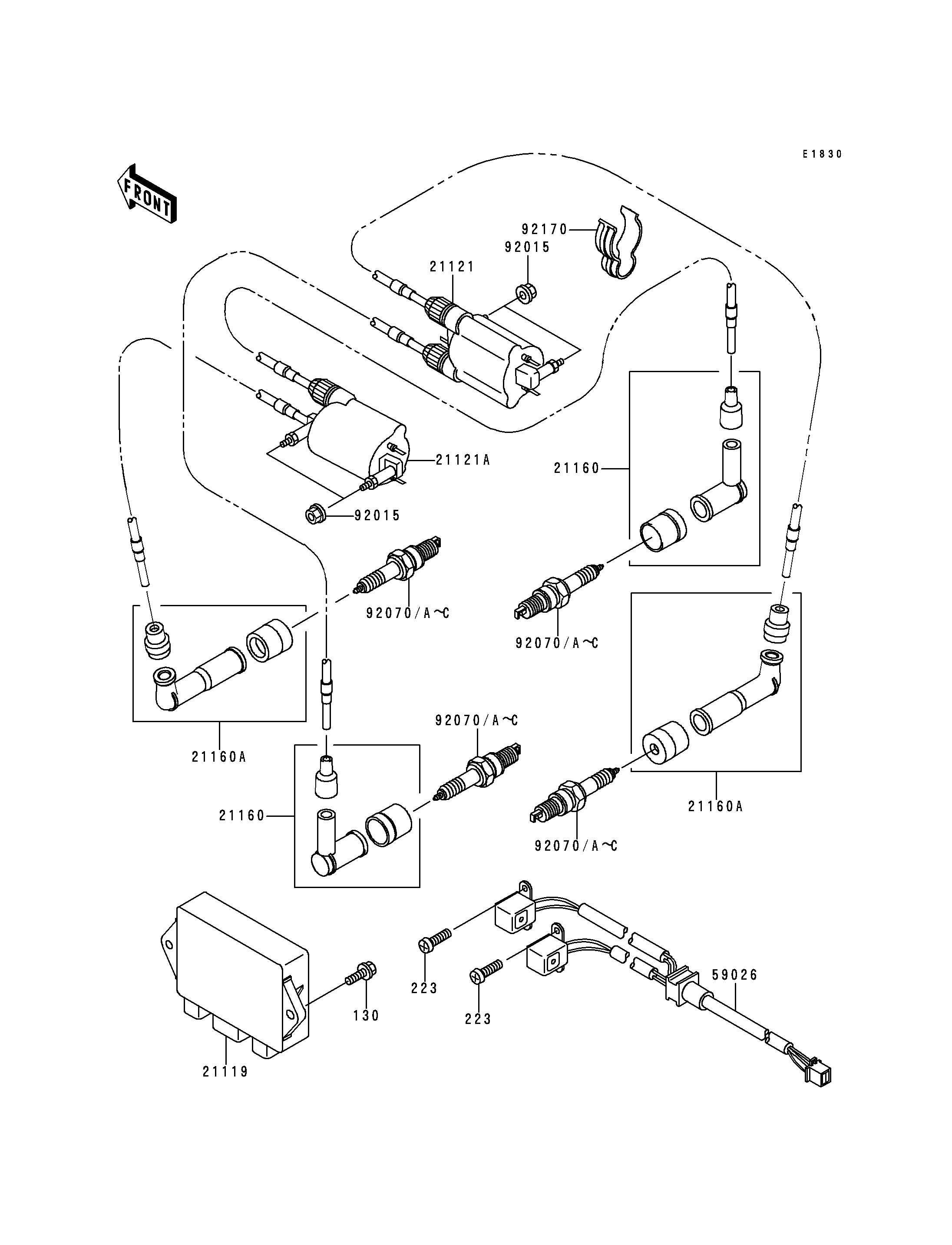

1998 Vulcan 1500 Classic - Ignition System
130
223
223
21119
21121
21121A
21160
21160
21160A
21160A
59026
92015
92015
92070
92070
92070
92070
92070A
92070A
92070A
92070A
92070B
92070B
92070B
92070B
92070C
92070C
92070C
92070C
92170
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130H0620 | 2 | ||
| SCREW-PAN-WS-CROS | 223 | 223B0516 | 4 | ||
| IGNITER | 21119 | 21119-1508 | 1 | ||
| COIL-IGNITION,RR | 21121 | 21121-1259 | 1 | ||
| COIL-IGNITION | 21121A | 21121-1271 | 1 | ||
| CAP-ASSY-PLUG | 21160 | 21160-1085 | 2 | ||
| CAP-ASSY-PLUG | 21160A | 21160-1091 | 2 | ||
| COIL-PULSING | 59026 | 59026-1138 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 4 | ||
| PLUG-SPARK,DPR6EA9(NGK) | 92070 | 92070-1138 | AR | (OPTION) | |
| PLUG-SPARK,X20EPR-U9(DN) | 92070A | AR | (OPTION) | ||
| PLUG-SPARK,DPR5EA9(NGK) | 92070B | 92070-1250 | 4 | ||
| PLUG-SPARK,X16EPR-U9(ND) | 92070C | 4 | (LOCAL PROCUREMENT ITEM) | ||
| CLAMP,HOSE | 92170 | 92170-1703 | 4 |
