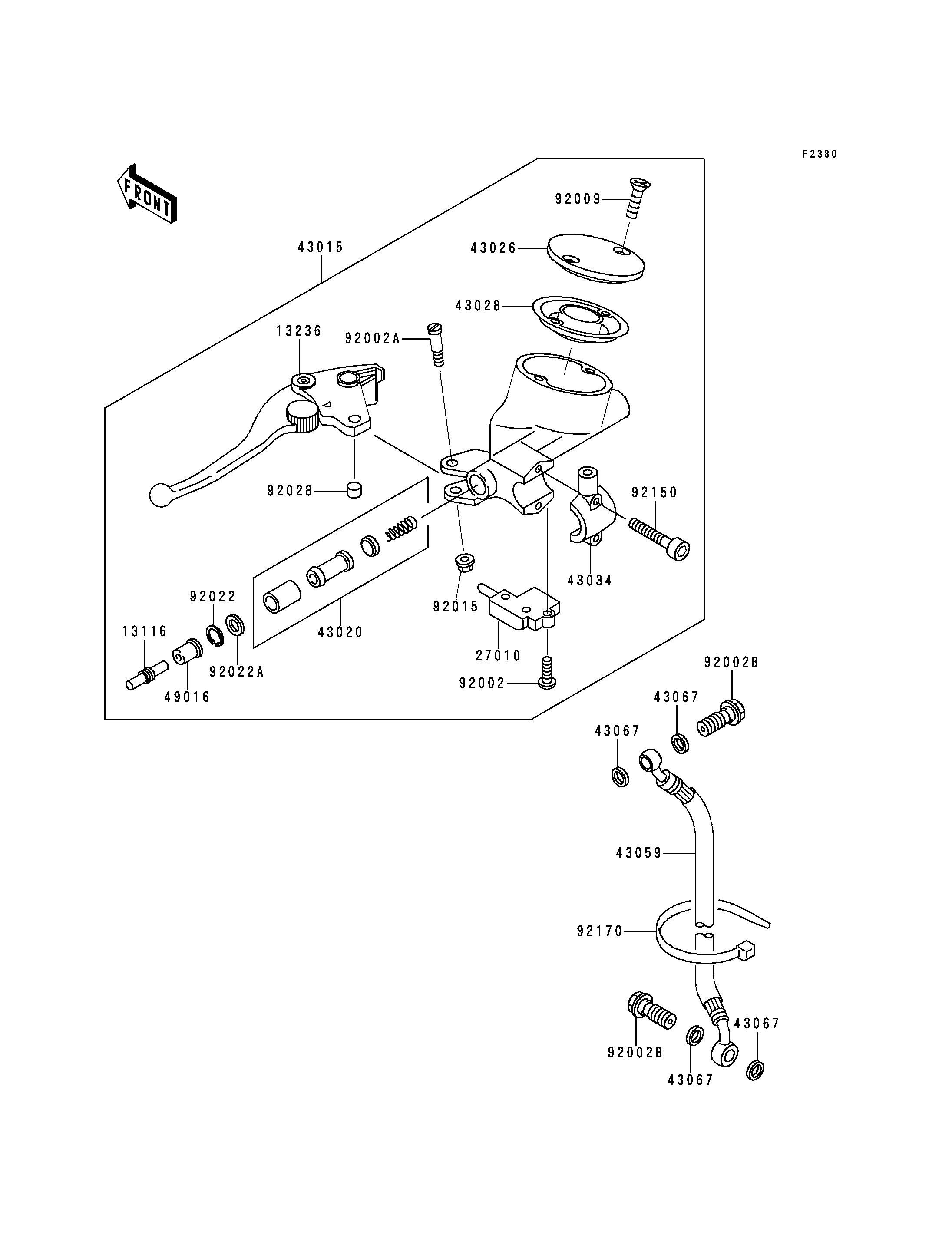

1998 Vulcan 1500 Classic - Clutch Master Cylinder
13116
13236
27010
43015
43020
43026
43028
43034
43059
43067
43067
43067
43067
49016
92002
92002A
92002B
92002B
92009
92015
92022
92022A
92028
92150
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
ROD-PUSH,MASTER CYLINDER | 13116 | 13116-1110 | 1 | ||
LEVER-COMP,CLUTCH | 13236 | 13236-1282 | 1 | ||
SWITCH,CLUTCH | 27010 | 27010-1171 | 1 | ||
CYLINDER-ASSY-MASTER,CLUTCH | 43015 | 43015-1624 | 1 | ||
PISTON-COMP-BRAKE,CLUTCH | 43020 | 43020-1055 | 1 | ||
CAP-BRAKE | 43026 | 43026-1083 | 1 | ||
DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1071 | 1 | ||
HOLDER-BRAKE | 43034 | 43034-1147 | 1 | ||
HOSE-BRAKE,CLUTCH | 43059 | 43059-1954 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 4 | ||
COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
SCREW,4X16 | 92002 | 92002-1325 | 1 | ||
BOLT,LEVER SET | 92002A | 92002-1561 | 1 | ||
BOLT,OIL,L=23 | 92002B | 92002-1888 | 2 | ||
SCREW,5MM | 92009 | 92009-1440 | 2 | ||
NUT,FLANGED,6MM | 92015 | 92015-1528 | 1 | ||
WASHER,PISTON | 92022 | 92022-1605 | 1 | ||
WASHER,PISTON | 92022A | 92022-1606 | 1 | ||
BUSHING,MASTER CYLINDER | 92028 | 92028-1310 | 1 | ||
BOLT,SOCKET,6MM | 92150 | 92150-1025 | 2 | ||
CLAMP,HOSE | 92170 | 92170-1703 | 2 |
