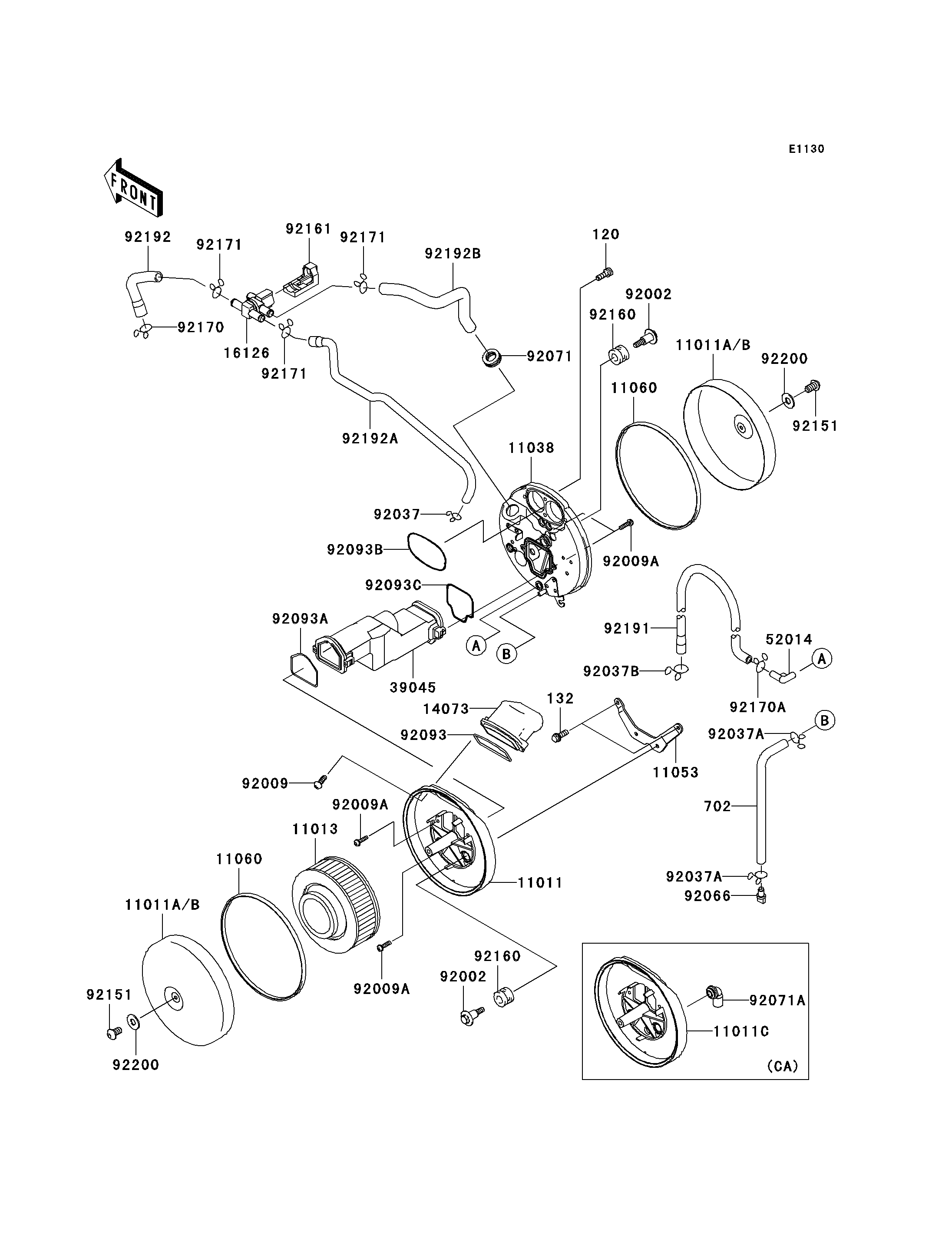

2006 Vulcan 1600 Mean Streak - Air Cleaner
11011A
11011A
11011A
11011A
11013
11013
11038
11038
11053
11053
11060
11060
11060
11060
14073
14073
16126
16126
39045
39045
52014
52014
92002
92002
92002
92002
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92037
92037
92037A
92037A
92037A
92037A
92037B
92037B
92066
92066
92071
92071
92093
92093
92093A
92093A
92093B
92093B
92093C
92093C
92151
92151
92151
92151
92160
92160
92160
92160
92161
92161
92170
92170
92170A
92170A
92171
92171
92171
92171
92171
92171
92191
92191
92192
92192
92192A
92192A
92192B
92192B
120
120
132
132
702
702
92200
92200
92200
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CASE-AIR FILTER,COVER | 11011A | 11011-0021 | 2 | ||
ELEMENT-AIR FILTER | 11013 | 11013-1248 | 1 | ||
CASE-ASSY-AIR FILTER,RH | 11038 | 11038-0005 | 1 | ||
BRACKET | 11053 | 11053-0231 | 1 | ||
GASKET,AIR FILTER CASE | 11060 | 11060-1968 | 2 | ||
DUCT,AIR FILTER | 14073 | 14073-1739 | 1 | ||
VALVE,AIR SWITCHING | 16126 | 16126-1437 | 1 | ||
DUCT-ASSY,CENTER | 39045 | 39045-0003 | 1 | ||
ELBOW | 52014 | 52014-1083 | 1 | ||
BOLT,FLANGED,6X14X13.5 | 92002 | 92002-1595 | 3 | ||
SCREW,TAPPING,5X16 | 92009 | 92009-1264 | 2 | ||
SCREW,PAN-WP-CROS,5X20 | 92009A | 92009-1905 | 4 | ||
CLAMP | 92037 | 92037-1468 | 1 | ||
CLAMP,TUBE | 92037A | 92037-147 | 2 | ||
CLAMP | 92037B | 92037-1593 | 1 | ||
PLUG,DRAIN | 92066 | 92066-1211 | 1 | ||
GROMMET,AIR FILTER | 92071 | 92071-1028 | 1 | ||
SEAL,AIR FILTER CASE | 92093 | 92093-1408 | 1 | ||
SEAL,DUCT,LH | 92093A | 92093-1459 | 1 | ||
SEAL | 92093B | 92093-1485 | 1 | ||
SEAL,DUCT,RH | 92093C | 92093-1491 | 1 | ||
BOLT,8X14 | 92151 | 92151-1438 | 2 | ||
DAMPER | 92160 | 92160-1594 | 3 | ||
DAMPER | 92161 | 92161-0309 | 1 | ||
CLAMP,TUBE | 92170 | 92170-1445 | 1 | ||
CLAMP | 92170A | 92170-1695 | 1 | ||
CLAMP | 92171 | 92171-0790 | 3 | ||
TUBE,BREATHER | 92191 | 92191-1406 | 1 | ||
TUBE,FR HEAD-AIR SWITCH | 92192 | 92192-0001 | 1 | ||
TUBE,RR HEAD-AIR SWITCH | 92192A | 92192-0002 | 1 | ||
TUBE,AIR SWITCH-AIR CLEANER | 92192B | 92192-0003 | 1 | ||
BOLT-SOCKET,6X16 | 120 | 120S0616 | 4 | ||
BOLT-FLANGED-SMALL,6X16 | 132 | 132J0616 | 2 | ||
TUBE-RUBBER,7X10X230 | 702 | 702A07230 | 1 | ||
WASHER,8.5X20X1.6 | 92200 | 92200-1463 | 2 | ||
CASE-AIR FILTER,LH | 11011 | 11011-0020 | 1 | CNUS | |
CASE-AIR FILTER,LH | 11011C | 11011-1601 | 1 | CA | |
GROMMET,AIR FILTER | 92071A | 92071-1114 | 1 | CA |
CASE-AIR FILTER,COVER | |
REF # | 11011A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ELEMENT-AIR FILTER | |
REF # | 11013 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE-ASSY-AIR FILTER,RH | |
REF # | 11038 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,AIR FILTER CASE | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DUCT,AIR FILTER | |
REF # | 14073 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE,AIR SWITCHING | |
REF # | 16126 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT-ASSY,CENTER | |
REF # | 39045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ELBOW | |
REF # | 52014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X14X13.5 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,5X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,PAN-WP-CROS,5X20 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,DRAIN | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET,AIR FILTER | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,AIR FILTER CASE | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,DUCT,LH | |
REF # | 92093A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL | |
REF # | 92093B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL,DUCT,RH | |
REF # | 92093C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X14 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
TUBE,BREATHER | |
REF # | 92191 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,FR HEAD-AIR SWITCH | |
REF # | 92192 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,RR HEAD-AIR SWITCH | |
REF # | 92192A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,AIR SWITCH-AIR CLEANER | |
REF # | 92192B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-SOCKET,6X16 | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL,6X16 | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE-RUBBER,7X10X230 | |
REF # | 702 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,8.5X20X1.6 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CASE-AIR FILTER,LH | |
REF # | 11011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CNUS |
REMARKS |
CASE-AIR FILTER,LH | |
REF # | 11011C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
GROMMET,AIR FILTER | |
REF # | 92071A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
